Overland Storage ARCvault Series Remove & Replace Instructions

ARCvault Series
4U Chassis Spare
Remove & Replace Instructions
This document describes how to remove and replace an
Overland ARCvault 48 chassis.
WARNING: To reduce the risk of electric shock or
damage, unplug the power cord.
CAUTION: A bracket and screws secure the robotics for
shipment and MUST be removed before operating.
IMPORTANT: If possible, document the current settings
by printing out a Full Trace Log before swapping chassis.
Unpack the spare chassis
ESD Bag
Carton
WARNING: Due to the weight of the unit, it is
recommended that at least two people be used to lift
the unit out of the box to prevent injury.
Part Number 10400038-102 04/2007
TM
Overview & Notes

Unpack Spare Chassis

(Figure 1) and prepare it to receive the magazines and drives from the old unit.
Top Caps

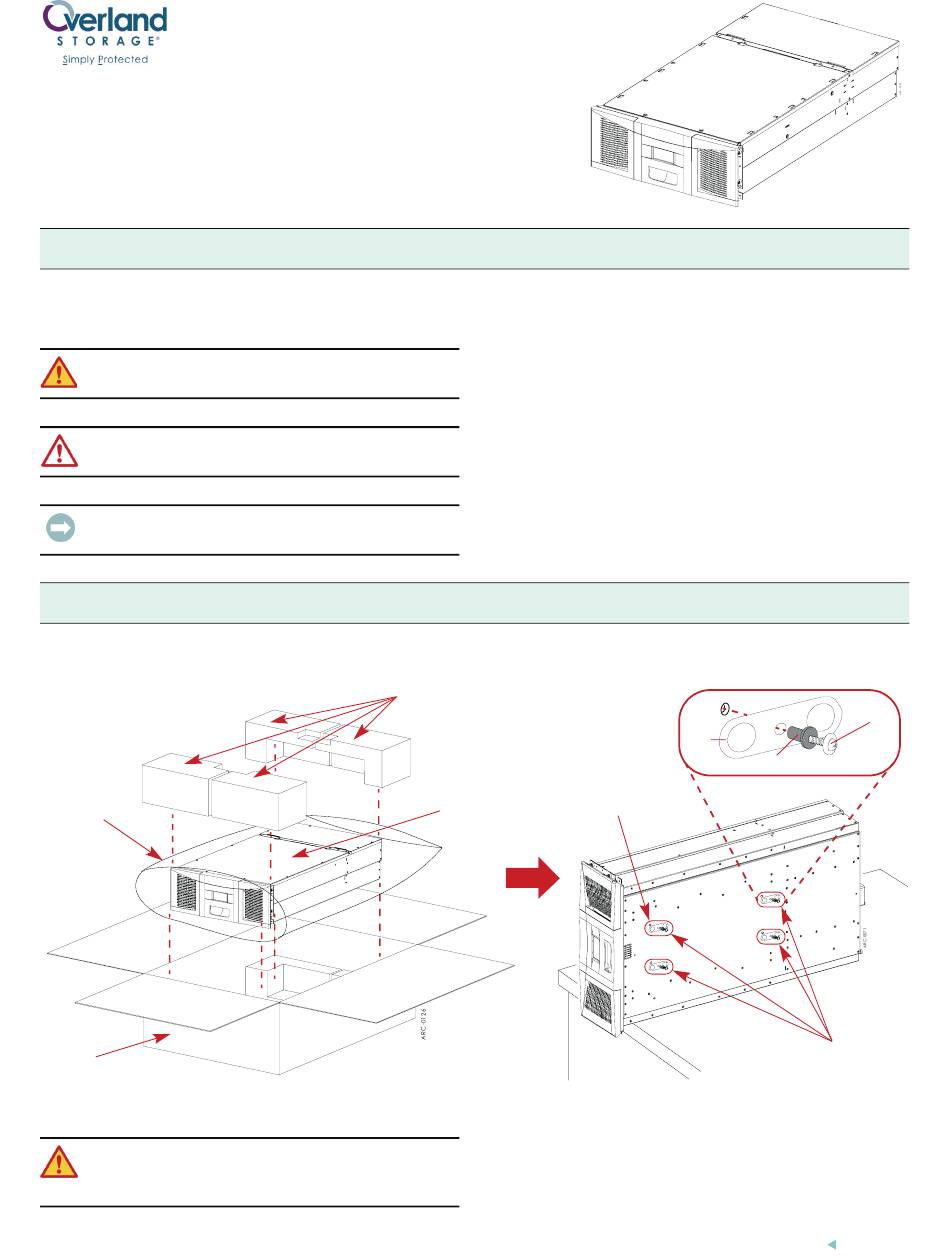

Figure 1. Unpacking the Spare Chassis
©2007 Overland Storage, Inc.

Unpacking

Carefully unpack and verify that you have all the parts:
• Spare 4U chassis
• These remove & replace instructions
A Phillips screwdriver is also needed.

Electrostatic Discharge Information

A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. Observe all standard ESD
procedures to help prevent electrostatic damage.
Spare
Shuttle Bracket Hole
Chassis
Front Bezel
Off Table
1. Open the box and remove the top caps.
2. Lift the chassis out and set it on a secure surface.
3. Remove the chassis from the ESD bag.
Screw
Pull
Well Nut
Screws & Well Nuts
Must Be Removed
Page 1 of 4
