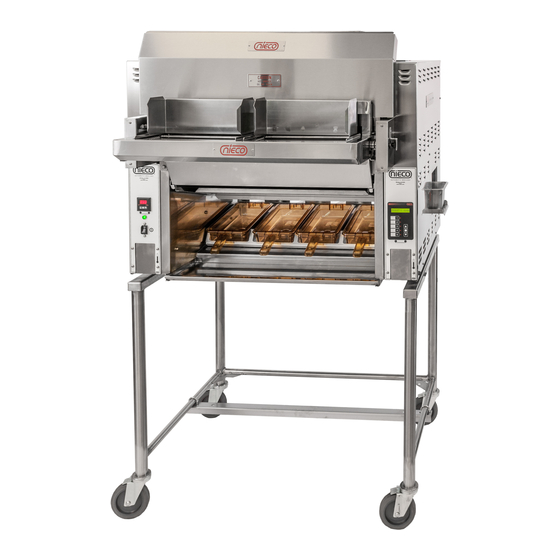

Nieco JF94E Owner's Manual

Ce approved automatic broilers
Hide thumbs Also See for JF94E:
Table of Contents

Advertisement

Quick Links

Download this manual
Model JF94E
Owner's Manual
A P P R O VA L S :
FOR CE APPROVED AUTOMATIC BROILERS
Revision History:
Date
Notes
1/13/2010
Released
2/4/2010
Wiring Diagram 20110
8/15/2011
Updated wiring diagram to 20110-B, changed control instructions
10/25/2011
Added parts location drawings; parts replacement list
11/2/2011
Updated parts location drawings
12/20/2011
Updated wiring diagram/parts location drawings
2/9/2012
Updated Wiring diagram
All manuals and user guides at all-guides.com
REV
A
B
C
D
E
F
G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JF94E and is the answer not in the manual?

Questions and answers

Related Manuals for Nieco JF94E

Summary of Contents for Nieco JF94E

  • Page 1 All manuals and user guides at all-guides.com Model JF94E Owner’s Manual A P P R O VA L S : FOR CE APPROVED AUTOMATIC BROILERS Revision History: Date Notes 1/13/2010 Released 2/4/2010 Wiring Diagram 20110 8/15/2011 Updated wiring diagram to 20110-B, changed control instructions 10/25/2011 Added parts location drawings;...
  • Page 2 Broiler area must be kept free of combustible materials, and the flow of com- bustion and ventilation air must not be obstructed. Operating personnel must not perform any maintenance or repair functions. Contact your Nieco Authorized Dealer. Do not use this appliance in an area where a water jet could be used.
  • Page 3 3. This appliance must be installed by a qualified installer, in compliance with all national, local regulations and institutions having jurisdiction. 4. This machine should be connected to the supply with a plug with proper grounding. Nieco Corporation - Model JF94E CE...

  • Page 4: Table Of Contents

    G. Specifications ..........29 Nieco Corporation - Model JF94E CE...

  • Page 5: General Information

    Keep these instructions for future reference. If the unit changes ownership, be sure this manual accompanies the equipment. IMPORTANT The Nieco Corporation reserves the right to change specifications and product design in accordance with the general terms and conditions outlined in the BURGER KING ®...

  • Page 6: Service/Technical Assistance

    Nieco and the Burger King Corporation have worked together to cre- ate a set of standards for broiler performance, food quality and food safety. The use of non-Nieco parts is capable of affecting these criteria, and may affect broiler performance, parts longevity and food safety. Your local Authorized Nieco Distributor and Service Agent has been factory trained and has a complete supply of parts for your Nieco Automatic Broiler.
  • Page 7 Distributor for adjustment or repair. • Use only genuine Nieco replacement parts for your broiler. Failure to do so will void the warranty and may significantly alter the performance of your broiler. Nieco and the Burger King Corporation have worked together to create a set of standards for broiler performance, food quality and food safety.

  • Page 8: Pre-Installation

    An electrical wiring diagram can be found inside the control box. Note: Disconnect power before servicing. B.7 Pre-Operation Check Be sure that all parts are installed in the proper location. Nieco Corporation - Model JF94E CE...

  • Page 9: Operation

    3. Temperature Control (P/N 19235) - Helps keep the broiler temperature stable when the broiler is under heavy load. Nieco Corporation - Model JF94E CE...
  • Page 10 (2) PRODUCT SELECTION BUTTONS - Press to select different presets for different products. (3) ADJUSTMENT BUTTONS - Use to adjust product cook times, element settings and product names. (4) SELECTION INDICATOR LIGHT - Lights up to show which button is selected. Nieco Corporation - Model JF94E CE...

  • Page 11: Shutdown Procedure

    FOR YOUR SAFETY: In the event of or use gasoline or other flammable a prolonged power failure, no vapors or liquids in the vicinity of attempt should be made to operate this or any other appliance. this appliance. Nieco Corporation - Model JF94E CE...

  • Page 12: Control Operation

    FLEX SIDE OF THE BROILER: Set the temperature (bottom number) to 275º C (527° F). Use the up or down arrows on the control to set the temperature. The bottom number is the set temperature and the top number is the actual temperature. Nieco Corporation - Model JF94E CE...
  • Page 13 (10 character limit). Press and hold the PRODUCT SELECTION BUTTON for 5 seconds to save the changes and return to normal operation. Nieco Corporation - Model JF94E CE...
  • Page 14 Picture of the part to be removed and cleaned. How to remove and Instructions clean the parts. Pull each meat guide out slightly from the bottom, then lift off. Wash, rinse, and sanitize in the 3-compartment sink. Nieco Corporation - Model JF94E CE...
  • Page 15 Clean: Every 4 hours Feed End Tools Scrub Pad 3-Compartment Sink Instructions 1. Pull the meat guide out slightly from the bottom, then lift off. 2. Wash, rinse, and sanitize in the 3-compartment sink. Nieco Corporation - Model JF94E CE...
  • Page 16 3. Wash, rinse, and sanitize in the 3-compartment sink. DO NOT lift the feeder base by the feeder bar or the chains. This will damage the feeder base. REASSEMBLY: Pull the release pin and place feeder base in position. Nieco Corporation - Model JF94E CE...
  • Page 17 Heat Resistant Gloves Degreaser 3-Compartment Sink Instructions 1. Lift shield up and off. 2. Take to sink area and spray with degreaser. 3. Wash with a scrub pad, rinse, and sanitize in the 3-compartment sink. Nieco Corporation - Model JF94E CE...
  • Page 18 Heat Resistant Gloves Degreaser 3-Compartment Sink Instructions 1. Slide warming pan shield out. 2. Take to sink area and spray with degreaser. 3. Wash with a scrub pad, rinse, and sanitize in the 3-compartment sink. Nieco Corporation - Model JF94E CE...
  • Page 19 Heat Resistant Gloves Degreaser 3-Compartment Sink Instructions 1. Lift and slide bracket out. 2. Take to sink area and spray with degreaser. 3. Wash with a scrub pad, rinse, and sanitize in the 3-compartment sink. Nieco Corporation - Model JF94E CE...
  • Page 20 Tools Scrub Pad 3-Compartment Sink Instructions 1. Slide grease trough towards you. 2. Take to sink area and spray with degreaser. 3. Wash with a scrub pad, rinse, and sanitize in the 3-compartment sink. Nieco Corporation - Model JF94E CE...
  • Page 21 1. Tilt and lift pins off hooks; lift off. 2. Take to sink area and spray with degreaser. 3. Wash, rinse, and sanitize in the 3-compartment sink. REASSEMBLY: Make sure return pan hangs on brackets. Nieco Corporation - Model JF94E CE...
  • Page 22 1. Scrape each shaft of both belts on the discharge end with the wide end of the shaft cleaning tool. The tool is located on the clip on main side control box. 2. Wipe shaft cleaning tool with a towel. Nieco Corporation - Model JF94E CE...
  • Page 23 1. Lift grease box off. 2. Take to sink area and spray with degreaser. 3. Wash with a scrub pad, rinse, and sanitize in the 3-compartment sink. REASSEMBLY: Put grease box on before the grease trough. Nieco Corporation - Model JF94E CE...
  • Page 24 EXTREMELY HOT! Be careful not to burn yourself. 1. Lift chimney from top of broiler. 2. Take to sink area and spray with degreaser. 3. Wash with a scrub pad, rinse, and sanitize in the CAUTION: 3-compartment sink. Extremely Hot Nieco Corporation - Model JF94E CE...
  • Page 25 1. Lift reflector from the top of the air boxes. 2. Take to sink area and spray with degreaser. 3. Wash with a scrub pad, rinse, and sanitize in the CAUTION: 3-compartment sink. Extremely Hot Nieco Corporation - Model JF94E CE...
  • Page 26 4. Reassemble making sure the front air box with two inlet valves is in the front side of the broiler. CAUTION: Extremely Hot AIR HOLES Nieco Corporation - Model JF94E CE...
  • Page 27 Burgers under or over cooked. Main side: adjust conveyor belt speed. Flex side: adjust conveyor speed and duty cycle. Excessive flaming in broiler. Clean the catalyst if equipped. Check the hood for proper operation. Check product for overcooking. Nieco Corporation - Model JF94E CE...
  • Page 28 All manuals and user guides at all-guides.com F. PARTS LOCATION DRAWINGS Feed End View Nieco Corporation - Model JF94E CE...
  • Page 29 All manuals and user guides at all-guides.com F. PARTS LOCATION DRAWINGS Discharge, Side & Top View Nieco Corporation - Model JF94E CE...
  • Page 30 All manuals and user guides at all-guides.com F. PARTS LOCATION DRAWINGS Right Side Control Box Nieco Corporation - Model JF94E CE...
  • Page 31 All manuals and user guides at all-guides.com F. PARTS LOCATION DRAWINGS Left Side Control Box Nieco Corporation - Model JF94E CE...
  • Page 32 All manuals and user guides at all-guides.com F. PARTS LOCATION DRAWINGS Motor Control Box (On discharge of broiler) Nieco Corporation - Model JF94E CE...
  • Page 33 All manuals and user guides at all-guides.com F. PARTS LOCATION DRAWINGS Clutch Assembly Nieco Corporation - Model JF94E CE...
  • Page 34 All manuals and user guides at all-guides.com F. PARTS LOCATION DRAWINGS Feeder Assembly Nieco Corporation - Model JF94E CE...
  • Page 35 FRAME, SUPPORT, HOLDING PAN, 4 LANE, MPB 16840 SHIELD, HEAT, SHUTTLE 16794 RACK, STACKING, PATTY PAN 16382 PAN, HOTEL, 1/9 X 4” DEEP 16307 TRAY, SLUDGE - 28.5” FRAME - WLDMT 9128 TOOL, SHAFT CLEANING Nieco Corporation - Model JF94E CE...
  • Page 36 BRACKET, MOUNTING, STRIPPER BLADE - RIGHT 16402 BRACKET, MOUNTING, STRIPPER BLADE - LEFT 15689 ROD, CROSS SUPPORT - .63” X 28.5” 6300 ROD, CROSS SUPPORT - 5/8“ X 26,875” 6028 COLLAR, SET, 5/8” BORE 16838 BRACKET, TENSIONING, ROD BELT Nieco Corporation - Model JF94E CE...
  • Page 37 MASTER LINK, # 35 ROLLER CHAIN 6037 SPROCKET, ROLLERCHAIN, 35B 15, 5/8” BORE 6027 CHAIN, ROLLER, #35 14900 SPROCKET, CLUTCHED, 13T, BELLEVILLE SPRING 14896 BEARING, SHOULDER WASHER, LARGE, FEEDER DRIVE 10627 BEARING CLIP, 1/2“ ID,12 THK Nieco Corporation - Model JF94E CE...
  • Page 38 All manuals and user guides at all-guides.com G. PARTS REPLACEMENT LIST MISCELLANEOUS 20860 INCENDALYST, 15.19“ X 8“ X 1.5“, 29 CPI 22400 SPARE KIT 22342 HEAVY DUTY SPARES KIT Nieco Corporation - Model JF94E CE...

  • Page 39: Wiring Diagram

    All manuals and user guides at all-guides.com H. WIRING DIAGRAM - Main Side Fr om B r oi l St abi l i zer C ont r ol To M ot or C ont r ol , pi n 3 Nieco Corporation - Model JF94E CE...
  • Page 40 All manuals and user guides at all-guides.com H. WIRING DIAGRAM - Flex Side Nieco Corporation - Model JF94E CE...
  • Page 41 All manuals and user guides at all-guides.com H. WIRING DIAGRAM - Motor Box C oi l Nieco Corporation - Model JF94E CE...

  • Page 42: Specifications

    29.83 codes and any other applicable 24.57 codes. CAUTION 21.91 Do not operate the broiler at gas pressures other than those stated here. Doing so will affect the opera- tion of your broiler. Nieco Corporation - Model JF94E CE...
  • Page 43 All manuals and user guides at all-guides.com...
  • Page 44 All manuals and user guides at all-guides.com Nieco Corporation 7950 Cameron Drive Windsor, CA 95492 +1-707-284-7100 +1-707-284-7430 Fax www.nieco.com sales@nieco.com • service@nieco.com © 2011 Nieco Corporation All Rights Reserved Printed in the U.S.A...
