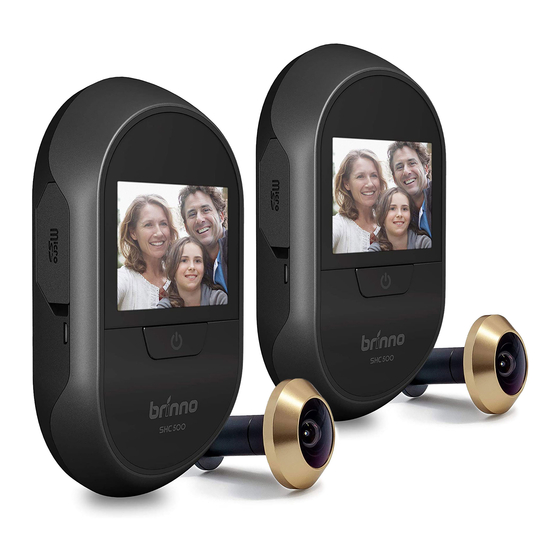

- Page 1 All manuals and user guides at all-guides.com PeepHole Camera Visitor Log Cam SHC500 User Manual www.brinno.com...
-
Page 2: Package Contents
Краткое Руководство คู ่ ม ื อ การใช้ ง านอย่ า งย่ อ 快速指南 快速指南 クイックガイド 속성 설치 설명서 www.brinno.com 1. PeepHole Camera 6. 4 AA Batteries 2. Base Fange 7. User Manual 3. Tightening Tool 8. Quick Start Guide 4. -
Page 3: Device Parts
All manuals and user guides at all-guides.com Device Parts 6. Low-light image 1. Locking screw enhancement switch 2. Micro SD card slot 7. Up button 3. Micro USB port 8. Down button 4. LED indicator 9. Extension port 5. Power button 10. - Page 4 All manuals and user guides at all-guides.com Insert Batteries & Micro SD Card 1. Open the battery cover 2. Insert 4 AA batteries 3. Insert a Micro SD Card * Micro SD Card is not included. * Support up to 32GB Micro SD Card. 8GB Class 10 is recommended.
- Page 5 All manuals and user guides at all-guides.com Settings While in the PREVIEW screen, hold the UP or DOWN BUTTON for 3 secs to enter SETTINGS. Menu Setting Motion Activated Screen File Format Band Filter Set Date&Time Reset EXIT V X.XX.X 3 secs.
-
Page 6: Set Up Date & Time
All manuals and user guides at all-guides.com Set Up Date & Time 1. Press the POWER BUTTON for 1 sec to enter the PREVIEW screen. Menu Setting Motion Activated Screen 3 secs. File Format Band Filter Set Date&Time Reset EXIT V X.XX.X 2. - Page 7 All manuals and user guides at all-guides.com 6. Press the POWER BUTTON to select the option. Date & Time YYYY/MM/DD 17:30 Exit 7. Press the UP and DOWN BUTTON to select the date Date & Time and time. Then, press the YYYY/MM/DD 17:30 POWER BUTTON to con rm.
- Page 8 All manuals and user guides at all-guides.com Install Lens & Camera 1. Remove the protective lm from the peephole lens. Insert it into the exterior side of the drilled hole on the door. 2. For the 12mm Peephole (For most North American users.) Position the Peephole barrel through the washer into the base ange from inside of the door.
- Page 9 All manuals and user guides at all-guides.com 4. Use the tightening tool to tighten the peephole barrel. Both sides of the tightening tool can be used. 5. Remove the protective lm from the lens of the camera. 6. Attach the camera to the ange. Rotate it clockwise and lock the camera.
- Page 10 All manuals and user guides at all-guides.com Live View & Capture Photo 1. Turn on the display by pressing the POWER BUTTON. 2. The LCD Panel Screen will display who is at the door. 3. Press POWER BUTTON again to zoom in and out on the camera.
-
Page 11: Image Playback
All manuals and user guides at all-guides.com Image Playback UP or DOWN BUTTON Previous or Next images Y Y Y Y / M M / D D 1 8 : 3 3 : 0 5 POWER BUTTON Play or Pause Auto Playback 1. -
Page 12: Led Indicator
All manuals and user guides at all-guides.com Playback by Date 1. At AUTO PLAYBACK mode, hold the UP or DOWN BUTTON for 3 secs to enter the daily folder Y Y Y Y / M M / D D 1 8 : 3 3 : 0 5 screen. - Page 13 All manuals and user guides at all-guides.com Auto Overwrite When memory is full, the camera will delete the oldest MONTHLY folder to free up space as needed. Make sure you transfer les regularly to save important data.
-
Page 14: Speci Cations
All manuals and user guides at all-guides.com Speci cations Model SHC500 14 SHC500 12 14 mm Peephole Barrel 12 mm Applicable Fits any door 1.69”~3.14” Fits any door 1.10”~2.28” ( 43~80mm) thick (28~58mm) thick Door Thickness View Angle Regular mode: 90°, Zoom mode: 40° Peephole Type Optical grade lens peephole LCD Screen... - Page 15 All manuals and user guides at all-guides.com www.brinno.com/support/register.html Visit Brinno.com to download manual in other languages.
- Page 16 All manuals and user guides at all-guides.com EN A2_301-0098-01...
