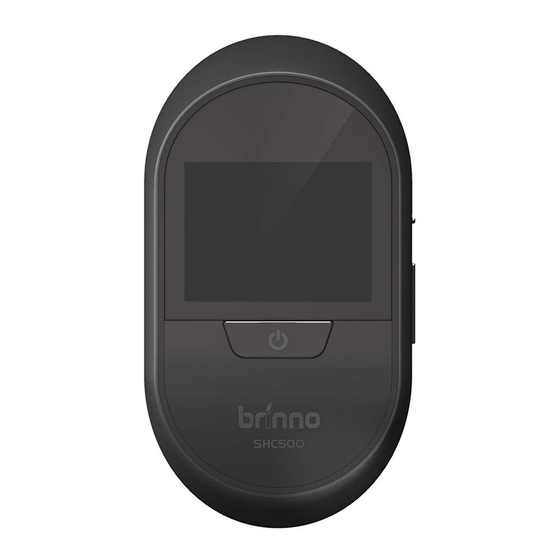

- Page 1 PeepHole Camera Visitor Log Cam SHC500 User Manual www.brinno.com...
-
Page 2: Package Contents
속성 설치 설명서 www.brinno.com 1. PeepHole Camera 6. 4 AA Batteries 2. Base Fange 7. User Manual 3. Tightening Tool 8. Quick Start Guide 4. Washer (SHC500 12 only) 5. Peephole Use the peephole in the package to get the best result. - Page 3 Device Parts 6. Low-light image 1. Locking screw enhancement switch 2. Micro SD card slot 7. Up button 3. Micro USB port 8. Down button 4. LED indicator 9. Extension port 5. Power button 10. Battery compartment Display Icons 1. Image recording 2.
- Page 4 Insert Batteries & Micro SD Card 1. Open the battery cover 2. Insert 4 AA batteries 3. Insert a Micro SD Card * Micro SD Card is not included. * Support up to 32GB Micro SD Card. 8GB Class 10 is recommended.
- Page 5 Settings While in the PREVIEW screen, hold the UP or DOWN BUTTON for 3 secs to enter SETTINGS. Menu Setting Motion Activated Screen File Format Band Filter Set Date&Time Reset EXIT V X.XX.X 3 secs. Motion Active Screen (Optional) JPEG File Format None Band Filter...
- Page 6 Set Up Date & Time 1. Press the POWER BUTTON for 1 sec to enter the PREVIEW screen. Menu Setting Motion Activated Screen 3 secs. File Format Band Filter Set Date&Time Reset EXIT V X.XX.X 2. At the PREVIEW screen, 3.
- Page 7 6. Press the POWER BUTTON to select the option. Date & Time YYYY/MM/DD 17:30 Exit 7. Press the UP and DOWN BUTTON to select the date Date & Time and time. Then, press the YYYY/MM/DD 17:30 POWER BUTTON to con rm. : OK to next Next...
- Page 8 Install Lens & Camera 1. Remove the protective lm from the peephole lens. Insert it into the exterior side of the drilled hole on the door. 2. For the 12mm Peephole (For most North American users.) Position the Peephole barrel through the washer into the base ange from inside of the door.
- Page 9 4. Use the tightening tool to tighten the peephole barrel. Both sides of the tightening tool can be used. 5. Remove the protective lm from the lens of the camera. 6. Attach the camera to the ange. Rotate it clockwise and lock the camera.
- Page 10 Live View & Capture Photo 1. Turn on the display by pressing the POWER BUTTON. 2. The LCD Panel Screen will display who is at the door. 3. Press POWER BUTTON again to zoom in and out on the camera. Zoom Zoom Press the POWER BUTTON to...
- Page 11 Image Playback UP or DOWN BUTTON Previous or Next images Y Y Y Y / M M / D D 1 8 : 3 3 : 0 5 POWER BUTTON Play or Pause Auto Playback 1. Press the POWER BUTTON to enter the PREVIEW screen.
- Page 12 Playback by Date 1. At AUTO PLAYBACK mode, hold the UP or DOWN BUTTON for 3 secs to enter the daily folder Y Y Y Y / M M / D D 1 8 : 3 3 : 0 5 screen.
- Page 13 Auto Overwrite When memory is full, the camera will delete the oldest MONTHLY folder to free up space as needed. Make sure you transfer les regularly to save important data.
-
Page 14: Speci Cations
Speci cations Model SHC500 14 SHC500 12 14 mm Peephole Barrel 12 mm Applicable Fits any door 1.69”~3.14” Fits any door 1.10”~2.28” ( 43~80mm) thick (28~58mm) thick Door Thickness View Angle Regular mode: 90°, Zoom mode: 40° Peephole Type Optical grade lens peephole LCD Screen 2.7”... - Page 15 Visit Brinno.com to download manual in other languages.
