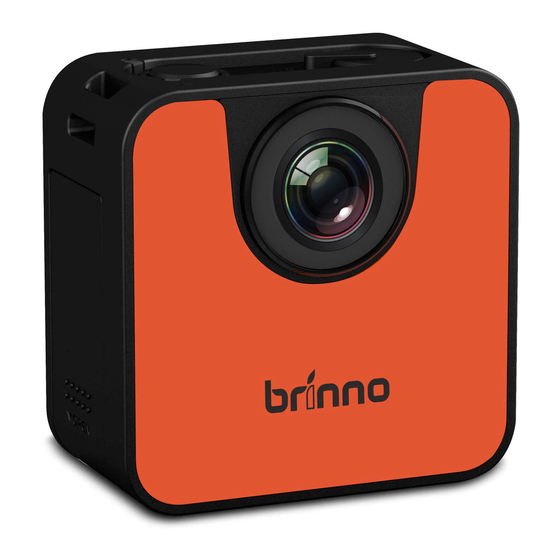

Brinno TLC120 Manual

Brinno TLC120 Manual

Time lapse camera
Hide thumbs Also See for TLC120:

Advertisement

Quick Links

Time Lapse Camera
TLC120
Connecting to a smartphone

Advertisement

loading
Need help?

Need help?

Do you have a question about the TLC120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Brinno TLC120

  • Page 1 Time Lapse Camera TLC120 Connecting to a smartphone...
  • Page 2: Before You Start

    DC IN 1. Fully charge the battery. 5V, 1A 2. Insert a SD Card. (> 6hrs) (Up to 32 GB) 3. Install the Brinno Camera App on your phone. Smartphone OS requires: Android 4.4 or iOS 7.0 above.
  • Page 3 Brinno Camera App 1. Camera: Connect your smartphone to Brinno camera. 2. Gallery: Playback downloaded time lapse video in app.
  • Page 4: Connecting To A Smartphone

    1. Connecting to a smartphone 1. Turn on the camera. 2. Turn on Bluetooth and Wi-Fi on your phone. 3. Open Brinno Camera App. 4. Press “Camera” Button. Camera 5. Select the camera’s SSID: TLC120-XXXXXX 6. Press “Connect”...
  • Page 5 AP Mode Error” , you need to connect camera Wi-Fi to preview image. Settings Wi-Fi > 8. Go to Phone Settings -> Wi-Fi -> select: Choose a network: TLC120-XXXXXX TLC120-XXXXXX Enter password: 12345678 -> Password: 12345678. (The password is required for first time connection.)
  • Page 6 9. Once connected, go back to Brinno Camera App, press “Refresh”. 10. Now you see the preview screen in the app.
  • Page 7 2. Record a Time Lapse Video 1. When camera is  successfully connected to smartphone, change capture settings: Scene, Time interval (Capture rate), Playback rate. Recommend settings for new user: A. Scene: Night (It suits shootings for both day and night.) B. Time interval: 5 secs C.
  • Page 8 3. After the countdown,  the screen will show a  flashing “REC” icon, now you can exit app. 5.4.3.2.1 4. During recording, press the “Stop button” to stop recording. When camera is recording, Wi-Fi connection will not be working.
  • Page 9 5. Camera auto processes time lapse video. 6. When finished, press “OK” to go back to preview screen. Reconnect to your smartphone For power saving purpose, camera will turn off Wi-Fi > connection during time lapse video recording. To re-enable camera preview or playback time lapse video, you MUST RECONNECT TO camera’s Wi-Fi Settings Wi-Fi...
  • Page 10 3. Playback Time Lapse Video 1. If you can’t see the preview image, please reconnect Settings Wi-Fi >  the camera Wi-Fi.  (page 4, step 8-10) 2. When camera is successfully connected to a smartphone, select “Gallery” icon. 3. At gallery screen, choose category icon on the right  bar: A.
  • Page 11 4. Select one or more files. 5. Press “Copy” to download videos to your phone. 6. When file transmission is done, press “OK”. It takes longer when you transfer multiple video files at one time. P.10...
  • Page 12 7. Select “Gallery” icon. 8. Select video. 9. Press “Play” button to playback video. P.11...
  • Page 13 4. Save Time Lapse Video to Smartphone 1. At video playback screen. 2. “Save to Phone” icon. 3. Press “OK” to convert video into MP4 format and save it to your smartphone. 4. Now you can find your time lapse video in your phone photo album.
  • Page 14 For more tips, please visit Brinno blog: http://bit.ly/2se3Rji P.13...
  • Page 15 For more information, please visit Brinno website: www.brinno.com/tlc120 P.14...
  • Page 16 EN A1 301-0108-00...
