Oil-lubricated rotary vane vacuum pumps

Advertisement

Instruction Manual
R5
Oil-Lubricated Rotary Vane Vacuum Pumps
RA 0155 A
0870562170/A0006_en / Original instructions / Modifications reserved
29/09/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5 RA 0155 A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BUSCH R5 RA 0155 A

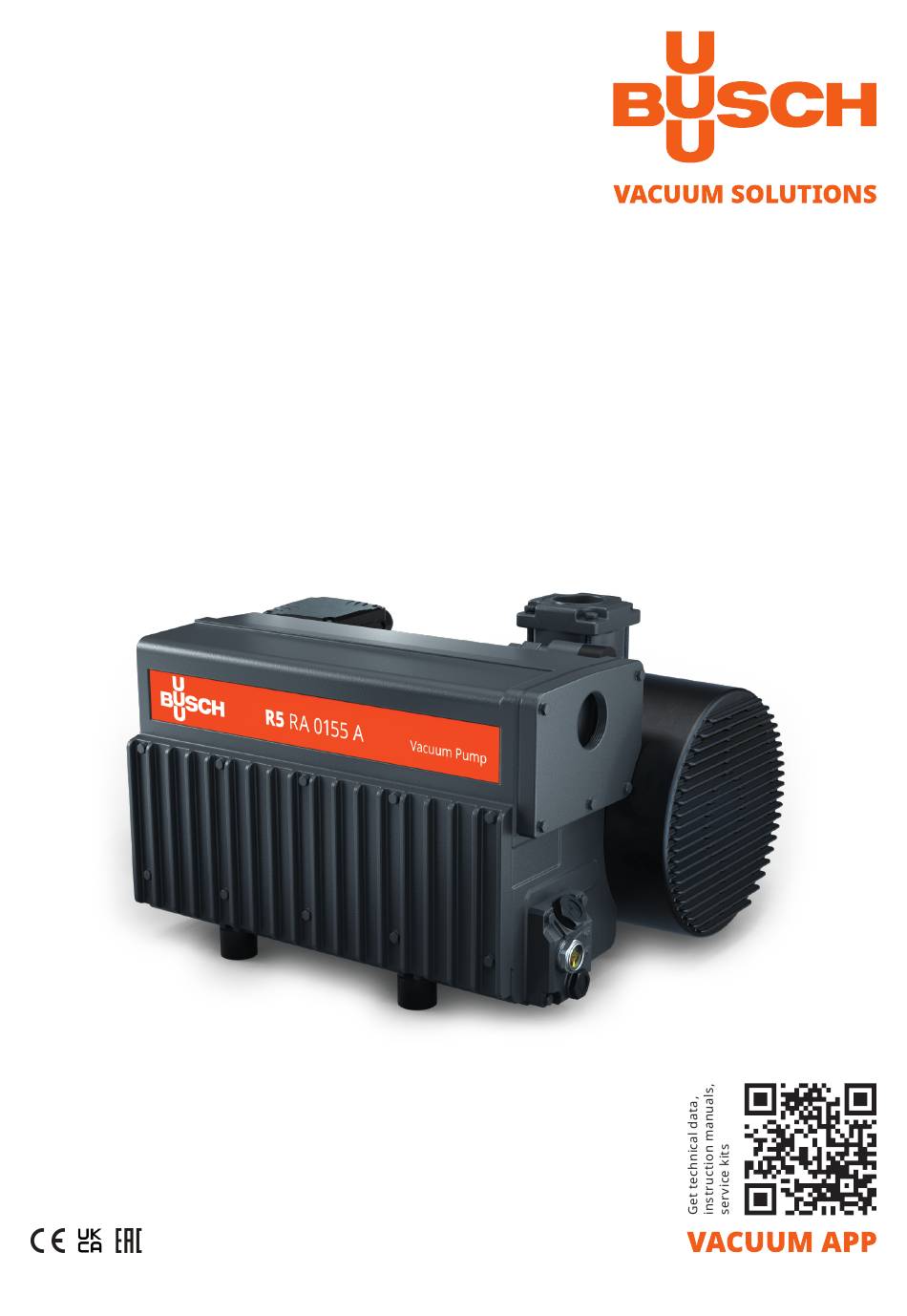

  • Page 1 Instruction Manual Oil-Lubricated Rotary Vane Vacuum Pumps RA 0155 A 0870562170/A0006_en / Original instructions / Modifications reserved 29/09/2021...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents 1 Safety ............................3 2 Product Description ........................4 2.1 Operating Principle ......................5 2.2 Application........................5 2.3 Start Controls ........................5 2.4 Optional Accessories ......................5 2.4.1 Gas Ballast Valve ....................5 2.4.2 Inlet Filter ......................5 2.4.3 Temperature Switch "Oil"...
  • Page 3: Safety

    Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product.
  • Page 4: Product Description

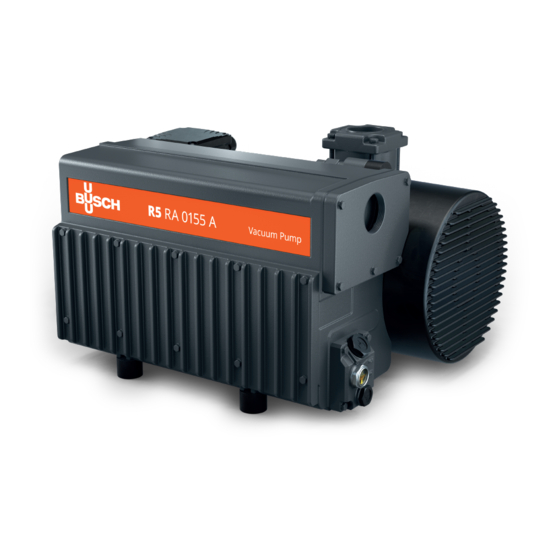

    2 | Product Description Product Description Suction connection Motor terminal box Discharge connection Directional arrow Oil fill plug Exhaust filter Oil sight glass Nameplate Oil drain plug Oil filter Eye bolt Axial fan Gas ballast valve Oil separator NOTE Technical term. In this instruction manual, we consider that the term ‘machine’...
  • Page 5: Operating Principle

    Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is designed for indoor installation, in case of outdoor installation, ask your Busch representative in order to take specific precautions.
  • Page 6: Temperature Switch "Oil

    3 | Transport 2.4.3 Temperature Switch "Oil" The temperature switch monitors the oil temperature of the machine. Depending on the oil type, the machine must be stopped when the oil reaches a certain temperature, see Oil [► 24]. 2.4.4 Resistance Thermometer The resistance thermometer monitors the oil temperature of the machine.
  • Page 7: Storage

    Storage | 4 Machine weight: see the technical data or the nameplate (NP) • Check the machine for transport damage. If the machine is secured to a base plate: • Remove the machine from the base plate. Storage • Seal all apertures with adhesive tape or reuse provided caps. If the machine is to be stored for more than 3 months: •...
  • Page 8: Installation

    • Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited.
  • Page 9: Connecting Lines / Pipes

    Depending on the specific order, other connection dimensions may apply. If the machine is used as part of a vacuum system: • Busch recommends the installation of an isolation valve in order to prevent the oil from flowing back to the vacuum system.
  • Page 10: Filling Oil

    Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 24] and Oil [► 24]. 1x o-ring, part no.: 0486 000 590...
  • Page 11: Fitting The Coupling

    (see Technical Data [► 24]). Seek advice from your Busch representative. • Make sure that the power supply for the motor is compatible with the data on the nameplate of the motor.
  • Page 12: Wiring Diagram Three-Phase Motor

    • Busch recommends installing a D-curve circuit breaker. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor.
  • Page 13: Electrical Connection Of The Monitoring Devices

    12 pins (middle voltage): 5.6 Electrical Connection of the Monitoring Devices NOTE In order to prevent potential nuisance alarms, Busch recommends that the control system is configured with a time delay of at least 20 seconds. 5.6.1 Wiring Diagram Level Switch (Optional) Part no.: 0652 569 236...
  • Page 14: Wiring Diagram Resistance Thermometer (Optional)

    6.1 Conveying Condensable Vapours Water vapour within the gas flow is tolerated within certain limits. The conveyance of other vapours shall be agreed upon with Busch. If condensable vapours are to be conveyed: 14 / 28 Instruction Manual R5 RA 0155 A_EN_en...
  • Page 15: Maintenance

    Risk of injuries! Risk of premature failure and loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. • Shut down the machine and lock against inadvertent start up. • Vent the connected lines to atmospheric pressure.
  • Page 16: Maintenance Schedule

    In case of a gas ballast valve (GB) being in- stalled: • Clean the gas ballast valve. • Contact Busch for an inspection. Every 5 years If required, overhaul the machine. * Service interval for synthetic oil, shorten the interval when using mineral oil, contact Busch Service 7.2 Oil Level Inspection...
  • Page 17: Oil And Oil Filter Change

    Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. 1x o-ring, part no.: Drain pan 0486 000 505 Instruction Manual R5 RA 0155 A_EN_en...
  • Page 18 7 | Maintenance Busch genuine spare parts 1x oil filter (OF), part. no.: 0531 000 002 Oil filter wrench For oil type and oil capacity see Technical Data [► 24] and Oil [► 24]. 1x o-ring, part no.: 0486 000 590 Check oil level...
  • Page 19: Exhaust Filter Change

    Maintenance | 7 7.4 Exhaust Filter Change 10 mm wrench 2x exhaust filters (EF) Busch genuine spare parts 2x exhaust filter (EF), art. no.: 0532 140 159 1x flat gasket part no.: 0480 560 234 10 mm wrench Instruction Manual R5 RA 0155 A_EN_en...
  • Page 20: Overhaul

    • Decontaminate the machine as much as possible and state the contamination sta- tus in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com).
  • Page 21: Spare Parts

    Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare parts kit Description Part no.
  • Page 22 (EF) and the o-rings. The float valve (FV) does • Check float valve and the not work properly. oil return line, repair it if necessary (contact Busch). Abnormal oil consumption. Oil leaks. • Replace seals (contact Busch). The float valve (FV) does •...
  • Page 23 Troubleshooting | 11 The oil is emulsified. The machine sucked in liq- • Flush the machine (con- uids or significant amounts tact Busch). of vapour. • Clean the filter of the gas ballast valve (GB). • Modify the operational mode (see Conveying Condensable Vapours [► 14]).
  • Page 24: Technical Data

    Switch point / Trip signal Oil temperature [°C] In case of unfavourable ambient temperature, other oil viscosities may be used. Please consult your Busch repre- sentative for more details. To know which oil has been filled in the machine, please refer to the nameplate (NP).
  • Page 25: Eu Declaration Of Conformity

    This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark.
  • Page 26 Note...
  • Page 27 Note...
