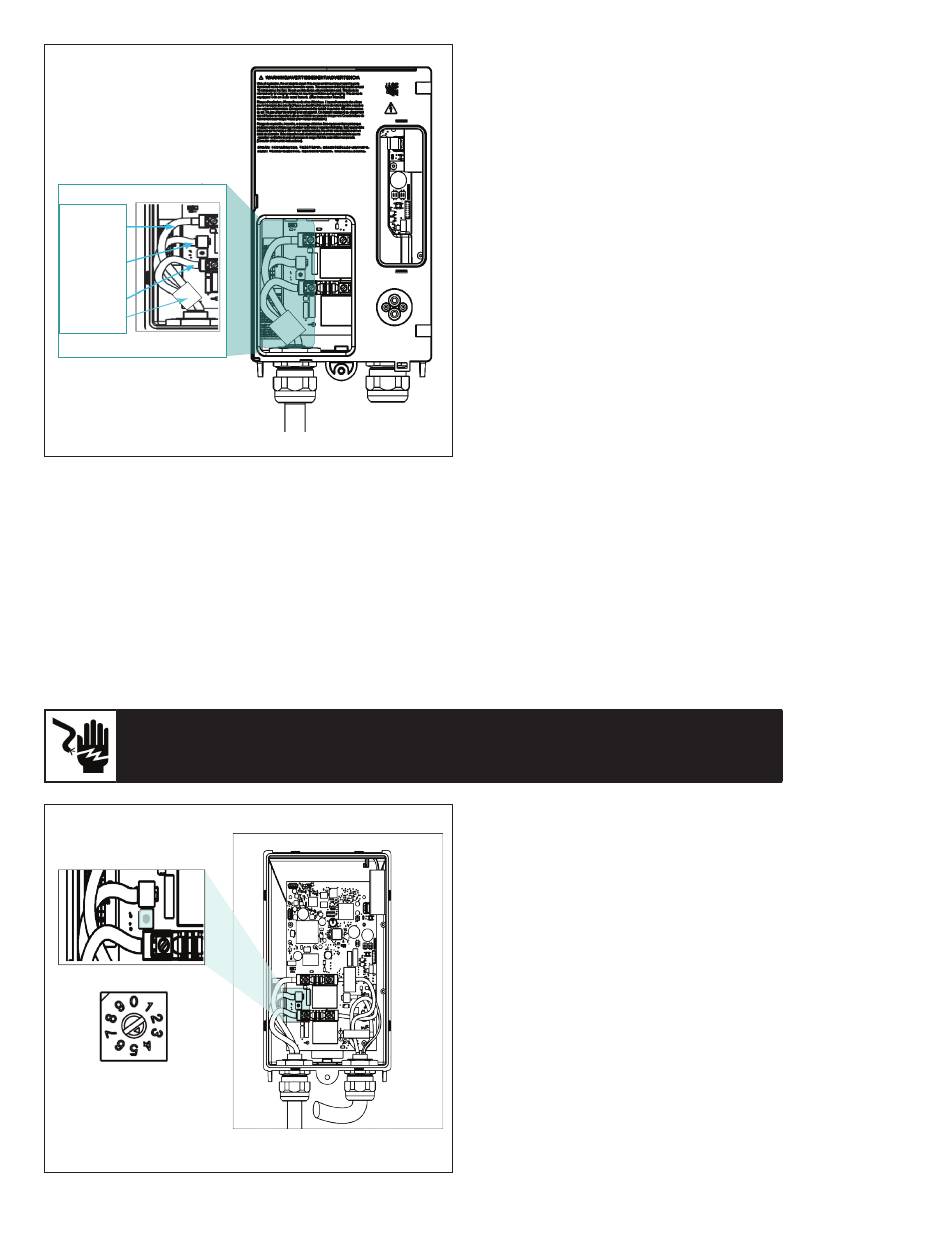

VersiCharge™ AC Electric vehicle charging station

P1 - Black

Hot/Power

P2 - Green

Ground/Earth

P-3 - Red

Hot/Power

Ferrite Core

11. Replace barrier and secure with the two screws which were removed in the beginning.

12. Replace hinged cover, securing with four Phillips head screws. Swing the unit closed until the bracket clip

engages and secure the charger with the tamper-resistant security screws.

13. Turn the circuit breaker for this circuit to the 'ON' position.

3.2 Amperage Adjustment

DANGER Hazardous voltage. Will cause death, serious injury. Turn off power before working on

this equipment.
