MOVENTO
Installation

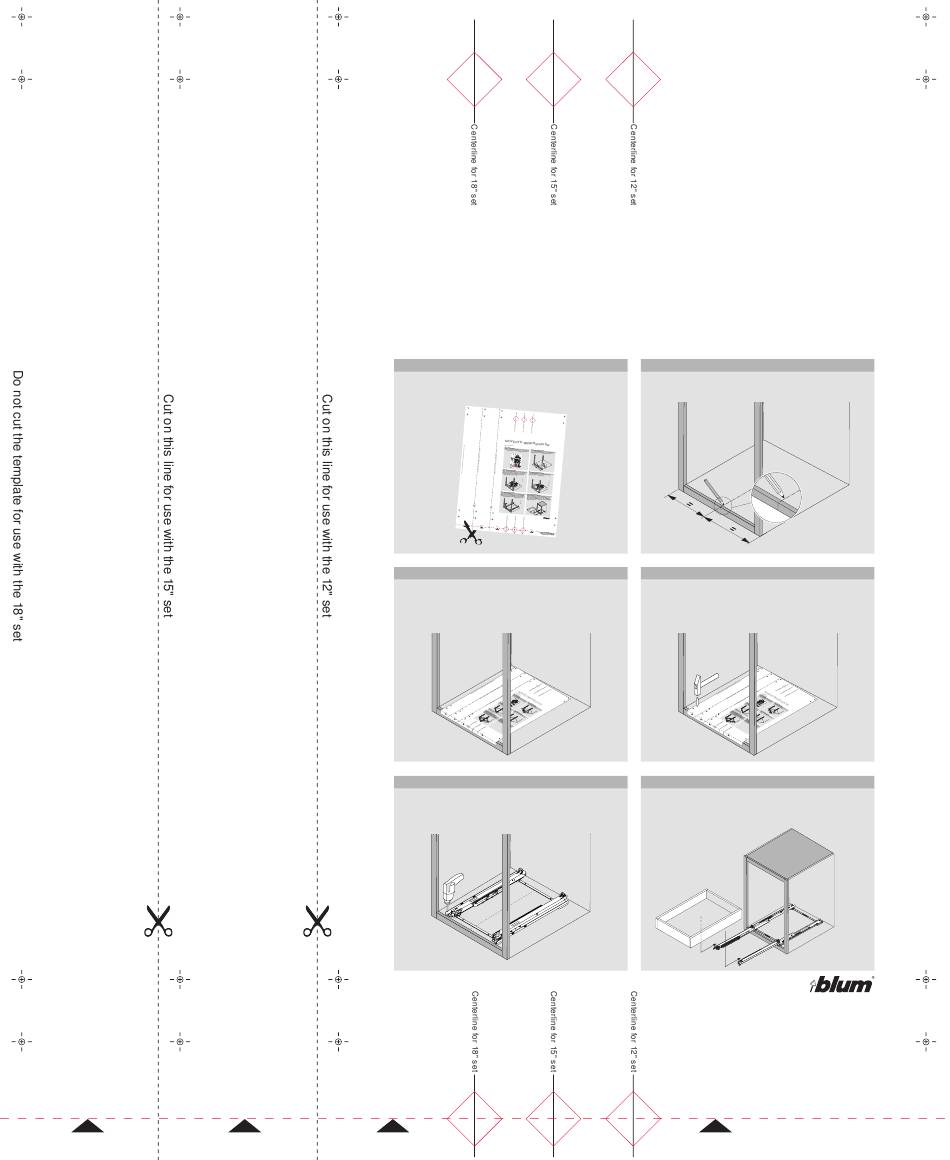

Step 1 – Prepare template
Remove template from box and read all instructions carefully. For 12"
or 15" sets, cut off left side of template on the line marked for your set.
Step 3 – Align and secure template
Lay template inside cabinet. Line up fold with the front edge of the
cabinet, then align template on the centerline, front and back. Taping
the template to the cabinet face and bottom is required to keep
template in place while marking the holes.
Step 5 – Mount the waste/recycle set
Remove template and place waste/recycle set on bottom of cabinet.
Set runners back 15 and line up centerline mark on cabinet bottom with
center marks on the metal cross rails. Use a power drill with a
#2 x 2" (or longer) Phillips bit to secure all eight pre-attached screws.
FOLD

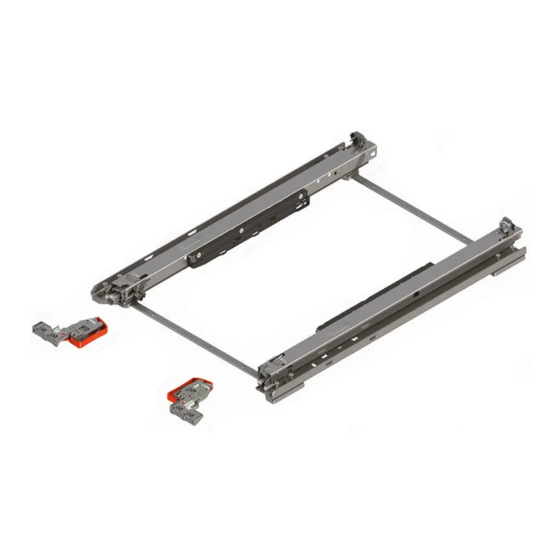

Waste/Recycle Set
Step 2 – Mark centerline in cabinet
Using a framing square, mark the centerline of the cabinet opening.
It is helpful to make a mark that extends 20" into the cabinet.
Step 4 – Mark mounting screw locations
Punch eight hole locations marked on the template, pre-boring
through the template is not recommended.
Step 6 – Insert the drawer and bins
Attach drawer front to drawer. Extend the two runners fully and set
drawer on top of them so the runners fit into notches in back of the
drawer. Close drawer completely. Listen for a "click" as locking devices
engage runners. Open drawer and insert bins. Your waste/recycle
drawer is now ready to use.
FOLD
For more information about installing Blum products, please visit
blum.com or call 1-800-438-6788 for customer service
