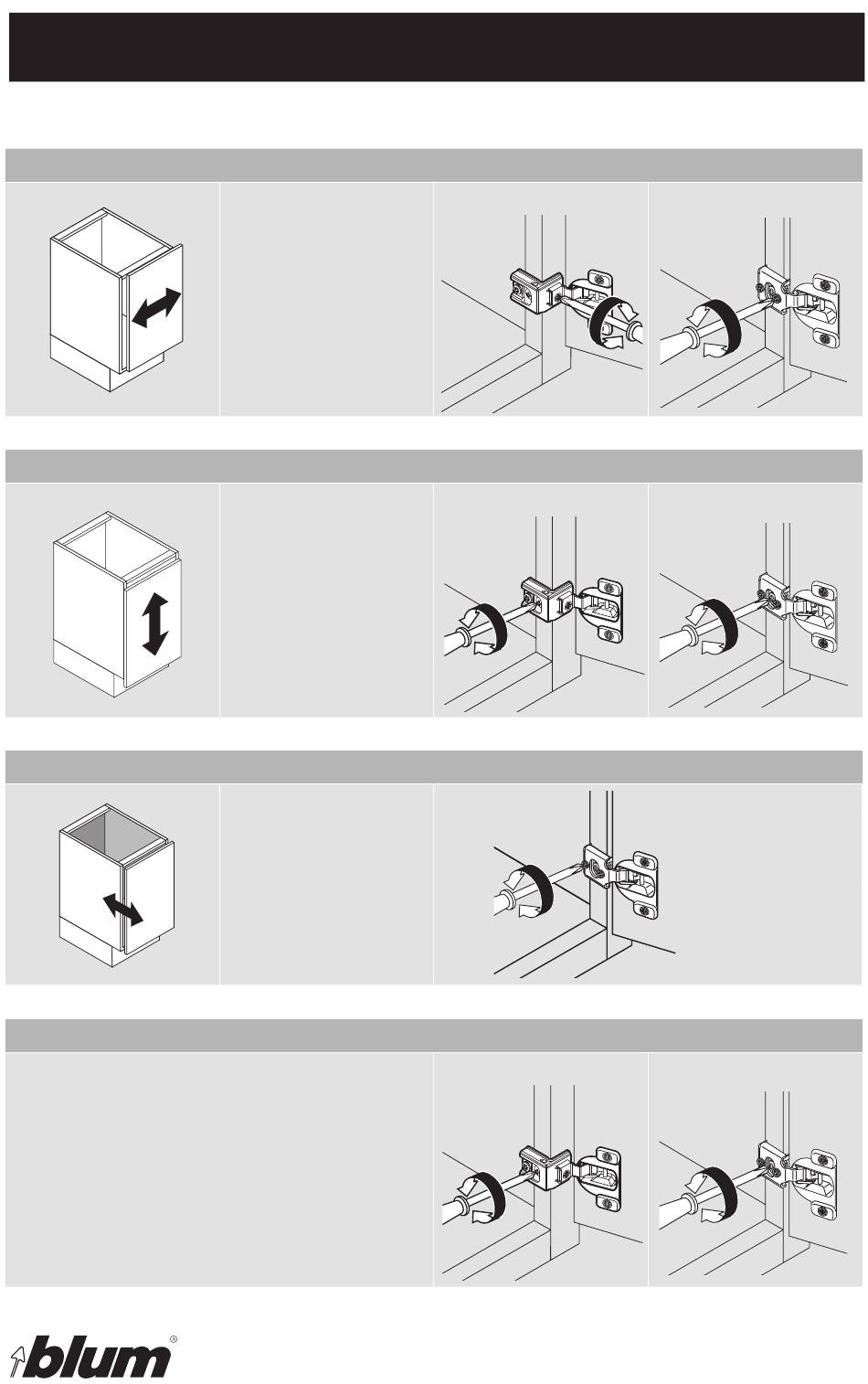

COMPACT BLUMOTION and COMPACT 38C/39C and 38N
series
Cam side adjustment
Height adjustment
Cam depth adjustment
Door removal
Rotate mounting screw counter-clockwise to
remove hinge from cabinet.
Rotate front screw
counter-clockwise to
increase door overlay,
clockwise to decrease.
Range = 3 (1/8")
Loosen center screw.
Adjust door to position
and tighten screw.
Range = 6 (1/4")
Rotate back screw to
adjust door to position.
Range = -1/ + 2
(-1/32"/ + 3/32")
Large overlay
Large overlay
Large overlay
2
Small overlay
Small overlay
Small overlay
Subject to technical modifications
without notice. © 2010
Advertisement
Table of Contents
Related Manuals for BLUM COMPACT BLUMOTION 38C Series
Summary of Contents for BLUM COMPACT BLUMOTION 38C Series
- Page 1 COMPACT BLUMOTION and COMPACT 38C/39C and 38N series Cam side adjustment Rotate front screw Large overlay Small overlay counter-clockwise to increase door overlay, clockwise to decrease. Range = 3 (1/8") Height adjustment Loosen center screw. Large overlay Small overlay Adjust door to position and tighten screw.
- Page 2 A POZI screwdriver (different from Phillips) is the most crucial tool you can use to assure that full torque is applied to all Blum mounting screws. POZI screws can be identified by the distinctive “tick” marks located in the center of the screw head recess.
