- Page 1 © Julius Blum GmbH...
- Page 2 Installing Blum Opening Angle Stops Quick Reference Guide © Julius Blum GmbH...

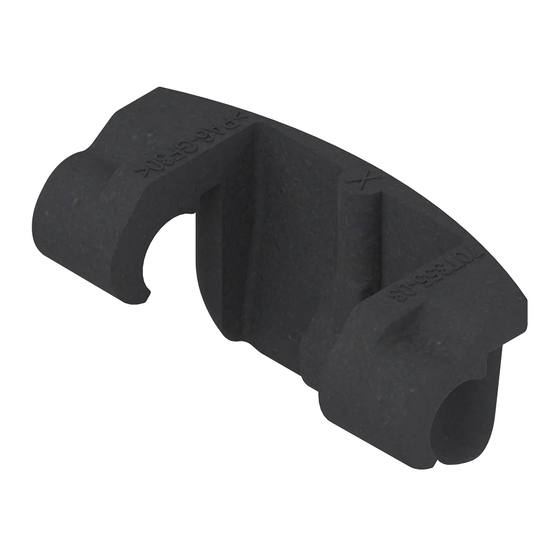

- Page 3 110° CLIP top BLUMOTION hinge Opening Angle Stop for 110° CLIP top BLUMOTION hinges, 86° restricted opening – 70T3553 •Remove •Flip hinge hinge from arm up to mounting closing plate position © Julius Blum GmbH...
- Page 4 110° CLIP top BLUMOTION hinge Opening Angle Stop for 110° CLIP top BLUMOTION hinges, 86° restricted opening – 70T3553 •Flip hinge •Install stop so arm down to that the hooks opening lock over position linkage pins •Install hinge back onto mounting plate ©...
- Page 5 Opening Angle Stop for 155° CLIP top Zero Protrusion hinges, 110° restricted opening – 70T7503N •Open hinge arm to 90◦ angle opening •Hinge will now be restricted to 110◦ angle opening •Install stop into the oval holes below the raised Blumotion trigger point © Julius Blum GmbH...
- Page 6 Push the opening angle stop into the slot and ensure the tab clips over the linkage pin to lock it in position. © Julius Blum GmbH...
- Page 7 2 notches on the underside of the stop into the small cutouts. Slide the opening angle stop in the main slot upwards away from the arm until the stop locks into position. © Julius Blum GmbH...
- Page 8 Opening Angle Stop for HK Aventos, 100° restricted opening – 20K7041 Place the opening angle stop over the linkage pin with the arrow shaped end facing down the arm. Clip the opening angle stop down over the linkage pin to lock into position. © Julius Blum GmbH...
- Page 9 Place the opening angle stop under the linkage pin with the square end facing down the arm. Clip the hooks underneath the square end of the opening angle stop down over the plastic linkage to lock into position. © Julius Blum GmbH...
- Page 10 © Julius Blum GmbH...
