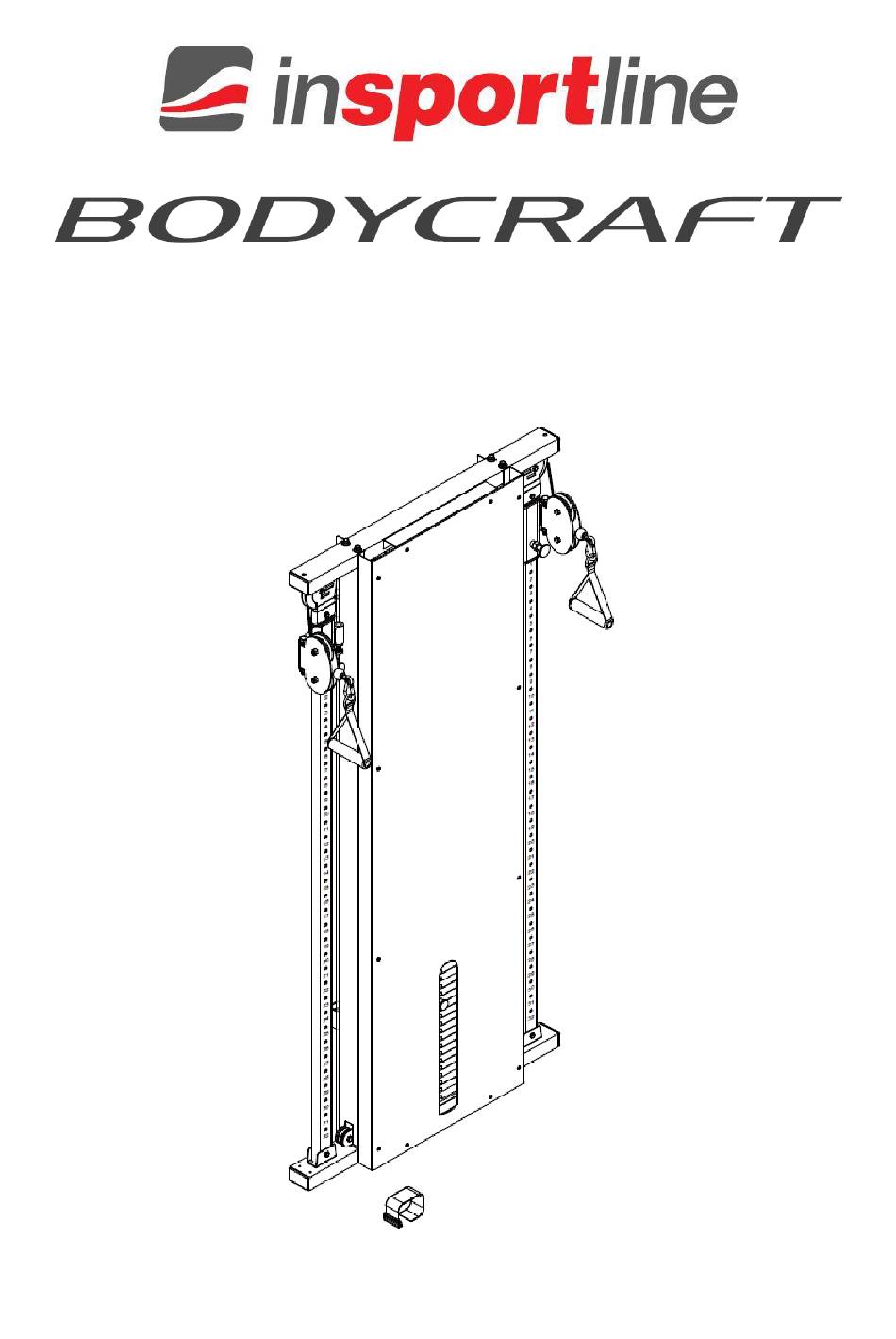

  • Page 1 USER MANUAL – EN IN 23288 Adjustable double pulley Body Craft DPDL M...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ........................3 ASSEMBLY ............................. 4 MAINTENANCE AND CLEANING ......................13 DIAGRAM .............................. 14 PARTS LIST ............................15 ENVIRONMENT PROTECTION ......................15 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........16...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS • Read the manual before use and installation and keep it for future reference. • Assembly and placement of the device must be done on flat and firm surface. • Keep a safety distance of at least 0.6 m from other objects. •...

  • Page 4: Assembly

    ASSEMBLY • Do not tighten the screws until prompted. • At least two people are required for assembly. • Before placing weights, lubricate the guiding rods. • Attach the plastic caps with a rubber mallet. • The screws are measured without a head. •...
  • Page 5 Name Qty. Name Qty. Base Pulley holder Top frame Top weight plate Main upright frame Weight selection rod Frame Weights 68 kg / 90 kg 14/19 Guiding rod Weight spacer Cover L-shaped bracket Rear cover End cap 45x75 mm Guiding rod holder Rubber washer Short cover Guiding rod holder...
  • Page 6 Pulley 114 mm Hexagon screw 3/8”x2” Pulley 90 mm Hexagon screw 3/8”x1-3/4” Pulley 50 mm Top plate bolt Weight cable Washer 1/2” Cable Washer 3/8” Cover Spring washer 3/8” Anchoring bolt 5/16”x2-1/2” Rubber washer M6 Hexagon screw 1/2”x4-1/4” Nylon nut 1/2” Hexagon screw 3/8“x2-1/4”...
  • Page 7 STEP 1 Attach 2x 45x75 mm end caps (21) and 2x guide bar holders (24) to the base. Attach the main upright frames (3) to the base (1) with 4x 3/8 ”washers (52) and 4x 3/8” nylon nuts (57). Attach 2x 45x75 mm end caps (21) to the top frame (2). Attach the top frame (2) to the main upright frames (3) with 4x 3/8 “x2-1 / 4”...
  • Page 8 STEP 2 WARNING: Consult an expert before anchoring to a wall. WARNING: The pulley must be placed on a level surface and close to the wall. Make sure the screws are solid. Secure the machine with 4x 5/16 "x2-1 / 2" anchor bolts (38). STEP 3 Deployment of weights depends on the configuration of weights: •...
  • Page 9 1. Attach 2x double pulley holders (13) to the right and left adjustable cable holders (11 and 12) with 2x 1/2 ”X 4-1 / 4” hex screws (39), 4x 1/2 ”washers (51) and 2x nylon nuts 1/2 ”(56). 2. Attach the 2x guide rods (6) to the base (1). Depending on the weight configuration, attach the weight according to Fig.
  • Page 10 STEP 4 Do not tighten until prompted. The assembly contains one cable, but the steps are divided for better comprehensibility. Fasten the pulleys together with the cable. Fig. 1 - Attach the 90 mm pulley (33) to the holder (15) with the 3/8 ”X 1-3 / 4” bolt (42) and the 3/8 ”nylon nut (57) together with the cable guided upwards.
  • Page 11 STEP 5 1. Fig. C1 - fasten 2x 90 mm pulleys (33) to the double pulley holder (13) with 2x 3/8 "X 1-3 / 4" hexagon bolts (42) and 2x 3/8 ”nylon nuts (42) with cable guided according to picture. 2.
  • Page 12 STEP 6 Important: Before attaching the covers (7 and 10), make sure that the threaded hole faces outwards so that the large cover (37) can be attached. 1. Attach the cover (7) to the main posts (3) with 8x M6x12mm hex bolts (46) 2.

  • Page 13: Maintenance And Cleaning

    MAINTENANCE AND CLEANING • Check the device regularly before each use. Make sure all bolts are properly tightened. • Check cable guidance. • Make sure that the weight selection pin is properly inserted and not damaged. • You can adjust the height of the cable holder with a pin. •...

  • Page 14: Diagram

    DIAGRAM...

  • Page 15: Parts List

    PARTS LIST Name Qty. Name Qty. Base frame Pop pin Top frame 114mm aluminium pulley Main upright frame 90mm aluminium pulley Upright frame 50mm pulley Guide rod Weight stack cable Longer cover Pulley column cable Rear cover Acrylic panel 5/16” x 2-1/2” bolt set Guide rod holder 1/2”...

  • Page 16: Terms And Conditions Of Warranty, Warranty Claims

    TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated here under determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 89/2012 Coll. Civil Code, and Act No.
