HUBBELL LIGHTING LXTB Installation Instructions

Touch tablet graphical user interface with tablet cradle
Hide thumbs
1
2

Advertisement

Table of Contents

LXTB - Touch Tablet Graphical User Interface with Tablet Cradle
Installation Instructions
Hubbell Building Automation, Inc.
9601 Dessau Road • Building One • Suite 100
Austin, Texas 78754
512-450-1100 • 512-450-1215 Fax
www.hubbell-automation.com

Overview

This document provides instructions for the installation and operation of the Touch Tablet Graphical User Interface and Tablet Cradle.

Precautions

• Read and understand all instructions before beginning installation.
• Only use with provided 3' RJ-45 cable.
• Only use with LX Lighting Control Panels mounted with Touch Tablet housing.
• For indoor use only.
• Notice: do not install or operate unit if any damage is noticed.

Installation

1.
Install Tablet Cradle to Tablet Cradle Mounting Brackets using the 4 (four) screws included.
2.
Plug 3' RJ-45 cable (provided) into the RJ-45 socket located in back of the Touch Tablet.
3.
Connect the Touch Tablet to the LX Lighting Control Panel by plugging the free end of the 3' RJ-45 cable into the RJ-45 connector located
near the top of the Lighting Control Panel.
4.
Once connected to the Lighting Control Panel, the Touch Tablet should automatically power up and be ready for use.

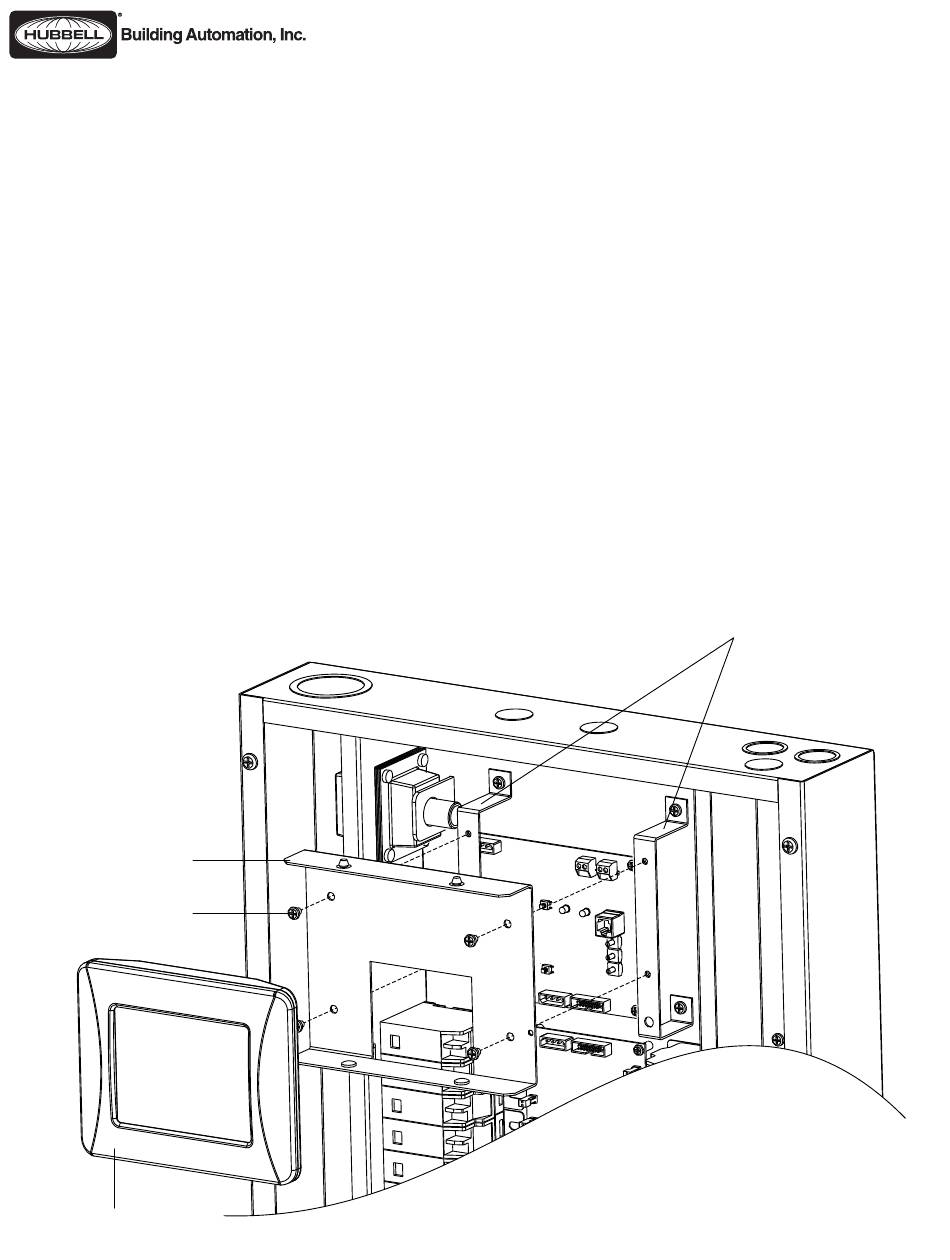

Tablet Cradle
Mounting Screws
(4 each)
LXTB Tablet
Tablet Cradle Mounting Brackets
Figure 1: Tablet Cradle Installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LXTB and is the answer not in the manual?

Questions and answers

Related Manuals for HUBBELL LIGHTING LXTB

Summary of Contents for HUBBELL LIGHTING LXTB

  • Page 1 LXTB - Touch Tablet Graphical User Interface with Tablet Cradle Installation Instructions Hubbell Building Automation, Inc. 9601 Dessau Road • Building One • Suite 100 Austin, Texas 78754 512-450-1100 • 512-450-1215 Fax www.hubbell-automation.com Overview This document provides instructions for the installation and operation of the Touch Tablet Graphical User Interface and Tablet Cradle.
  • Page 2 Figure 2: Back of the LX Touch Tablet showing the RJ-45 cable socket, RESET and SERVICE buttons. Operation Use a stylus or your fi ngers to press buttons on the Touch Tablet screen. Do not use writing utensils or anything sharp. The Touch Tablet can be reset by inserting a paper-clip (or other slim, blunt-tipped tool) into the RESET hole on the back of the Touch Tablet.
