HOWER AND

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

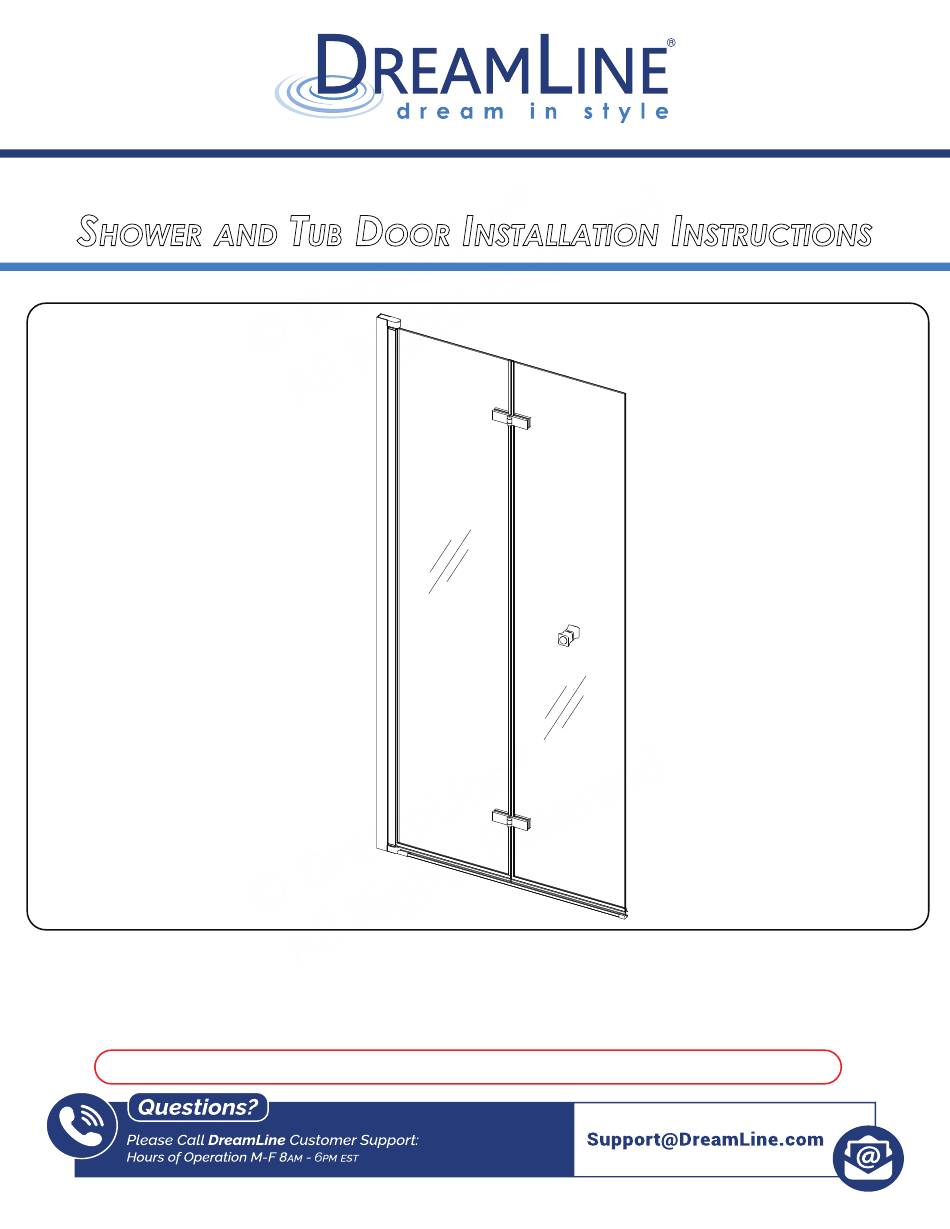

left-pivot door installation shown

IMPORTANT!

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice for the

purpose of product improvement and customer experience. Please refer to the model's web page on

DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional

product details.

Do Not Return Product to the Store. Contact DreamLine® with any questions

AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020

AQUA-Q FOLD

OOR

1-866-731-2244

NSTALLATION

NSTRUCTIONS

Model#

SD-363072Q-##

SD-363472Q-##

SD-363658Q-##

##=finish

01 - Chrome

04 - Brushed Nickel

06 - Oil Rubbed Bronze

09 - Satin Black

Table of Contents

Need help?

Do you have a question about the AQUA-Q FOLD and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamline AQUA-Q FOLD

Page 1 ® purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details. Do Not Return Product to the Store. Contact DreamLine® with any questions 1-866-731-2244 ©2020 DreamLine®...
Page 2 Record the following purchase information for your records or in the event you need to contact DreamLine ® Purchase Order Store/Vendor Number Purchased From OD Number Installation Date (optional) located on the shipping box or label if available. SKU Number...
Page 3: Table Of Contents
1 hour TIP - for ease of installation. recommended. NOTE - take note of special INCORRECT - NOTE feature; additional information. not recommended. REQUIRED - requires special attention; signifies a warning. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 4 IMPORTANT GENERAL PREPARATION • DreamLine® reserves the right to alter, modify or redesign products any time without • After opening all boxes and packages, read this introduction carefully. Check that all the prior notice for product improvement and customer experience. Please refer to the items are included in the package by marking off the components on the “Detailed...
Page 5: Model Specific Preparation
The left-hand door installation is shown throughout this manual. NOTE For the right-hand door installation, simply begin on the opposite wall and reverse the orientation of the installation steps shown. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 6: Adjustable Wall Profile System
Wall Profile Glass Profile NOTE ID groove with holes for attaching pro les must face the inside of the shower ST4.0×10mm Pan Head Screw (#09) Ø1/8” washer (#08) decorative cap (#08) AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 7: Tools
DreamLine for replacement. The shipping ® boxes may contain extra parts not used in your model configuration. Retain these installation instructions for future reference. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 8 Detailed Diagram of AQUA-Q FOLD Shower Door Components inside AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 9: Parts List
Parts List AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 10 AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 11: Installation Steps
Center the Wall Profile (#01) on the Threshold. NOTE Tools Needed Confirm the Wall Profile (#01) is plumb with a level before marking the location of the holes for drilling. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 12 ◾If No Stud is present behind the wall: drill a Ø5/16”(7mm) hole and insert the Wall Anchors (#07) and use the ST4.0 x 40mm Pan Head Screws (#05). Parts Needed Tools Needed AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 13: Glass-To-Glass Hinge Assembly Installation
Fig 3 To prevent glass-to-metal contact, confirm the vinyl gaskets are present between the Hinge Assemblies and the Door Glass. Parts Needed Tools Needed AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 14 Place 1/2” (12mm) thick wood or plastic shims onto the threshold to provide proper spacing beneath the door glass. 1/2” (12mm) Make any final adjustments to the door so that it is level and plumb in the opening. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 15 ST4.0×10mm Pan Head Screw (#07) Include the washers Parts Needed when installing the Tools Needed ST4.0×10mm Pan Head Screws (#07) washer (#08) decorative and Decorative Caps cap (#08) (#08) . AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 16: Vinyl Seals Installation
Bottom Sweep Vinyl (#11) as shown to prevent leakage in the corner. NOTE Notch +/- 1” to fit around sweep and Bottom Vinyl Seal (#11) press the onto the bottom edge of the Door Glass (#01). Parts Needed Tools Needed AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 17 Apply silicone along the connections of the Threshold Connector (#09) and Hinged NOTE Glass Profile (#02). Parts Needed Tools Needed AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 18: Knob Handle Installation
Fig 8 Parts Needed Extra gaskets are supplied with the Knob Handle (#10) to be used to align the inside and outside knobs with one NOTE another if necessary. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 19 Apply silicone to the wall and threshold, along the inside edge of NOTE the wall profile and threshold. Fig 9 Tools Needed Allow 24 hours for the silicone to cure before using the shower AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 20: Product Maintenance
◻ Confirm that all vinyl seals are intact (replace if missing or damaged to prevent leakage) ◻ Inspect exposed and concealed glass edges for damage ◻ Damaged Glass Must be Replaced! ◻ Inspect silicone caulk for gaps. Replace silicone as necessary to prevent water leakage. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 21: Troubleshooting
• Confirm the vinyl gaskets are present and the knob is tightly Knob Handle (#14) rattles secured to the glass. during operation The Aqua-Q Fold Shower/Tub Door is designed to swing out. Prior to contacting DreamLine® Customer Service, please have the following information readily available: - Purchase Order Information - Name, PO Number, Dealer/Vendor Name, etc.
Page 22: Factory Parts Information
04 = Brushed Nickel 06 = Oil Rubbed Bronze 09 = Satin Black Contact Support@DreamLine.com for Part replacement, installation assistance or additional information. Complete Warranty information is available on DreamLine.com. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 23 04 = Brushed Nickel 06 = Oil Rubbed Bronze 09 = Satin Black Contact Support@DreamLine.com for Part replacement, installation assistance or additional information. Complete Warranty information is available on DreamLine.com. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 24 04 = Brushed Nickel 06 = Oil Rubbed Bronze 09 = Satin Black Contact Support@DreamLine.com for Part replacement, installation assistance or additional information. Complete Warranty information is available on DreamLine.com. AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
Page 28 TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine Shower Doors and Enclosures please visit DreamLine.com ® AQUA-Q FOLD Shower and Tub Door Manual Ver 1 112020...
