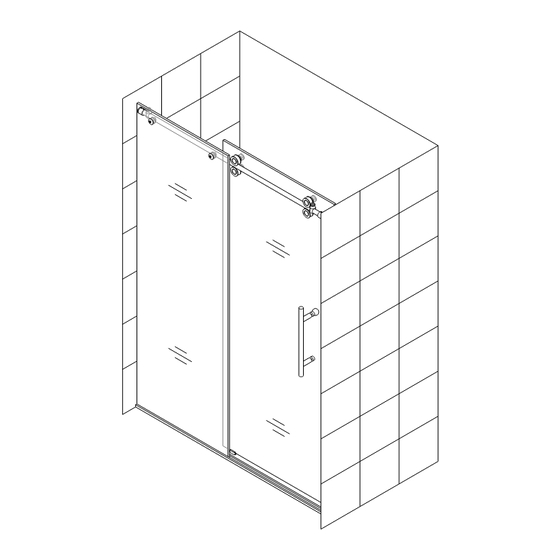

ENIGMA Shower Door Installation Instruction
IMPORTANT
Please read carefully the following instructions before installing your shower door. If you have any
questions regarding shower door installation, please call our technical support specialists Monday
through Friday, 9:00AM – 5:00PM EST at 1-866-731-8378 ext. 3 or e-mail our technical support
group at
support@BathAuthority.com
TM
DreamLine
reserves the right to alter, modify or redesign products
at any time without prior notice. For the latest up-to-date technical
drawings, manuals or any other details please refer to the
BathAuthority.com
web page.
Attention: This door is extremely heavy and requires
professional installation.
1
Rev 2.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENIGMA and is the answer not in the manual?

Questions and answers

Related Manuals for Dreamline ENIGMA

Summary of Contents for Dreamline ENIGMA

  • Page 1 ENIGMA Shower Door Installation Instruction IMPORTANT Please read carefully the following instructions before installing your shower door. If you have any questions regarding shower door installation, please call our technical support specialists Monday through Friday, 9:00AM – 5:00PM EST at 1-866-731-8378 ext. 3 or e-mail our technical support group at support@BathAuthority.com...

  • Page 2: Tools Required

    3 business days of the delivery date. Please note that DreamLine will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed.

  • Page 3: Packing List

    Before discarding the carton, check for small hardware bags that tend to fall to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement.
  • Page 4 Shower Door Installation 1. Measure the distance between two finished walls. This distance is marked as “W”. See Fig. 1 for details. 2. Your Guide rail (03) has been precut for the installation between the walls with a distance of 60”.
  • Page 5 If W<60”, then you have to cut the Threshold to the size of “W”. The length to cut off will be D1 D1 = (D−W). See Fig. 3 for details. 4. Place the Threshold (15) into the designated position and mark the drilling holes on the floor. Remove the Threshold, drill the holes in the floor using Ø5/16”...
  • Page 6 NOTE: Before you install the Stationary glass (02), you have to take the Glass door (05) into the shower room and lean it against the wall. 6. Place the Stationary glass (02) on the threshold and push the bottom edge into the groove of the Threshold (15) as shown on Fig.
  • Page 7 7. Outline the Guide rail brackets (08) position. Put the Stationary glass (02) aside. Remove the Guide Rail Brackets from the Guide Rail, place them to the outlined positions on the wall and mark the drilling holes. Drill the holes using Ø 3/8”...
  • Page 8 . 10 9. Place the Guide block (12) on the floor and parallel it to the Stationary glass (02). It should not pass beyond the vertical edge of the glass. Take a measurement to ensure the distance between the front line of the glass and the center line of the Guide block is 2 3/16”.
  • Page 9 . 12 11. Adjust the fasteners on both top Rollers (04) to ensure that the bottom edge of the Glass door (05) does not touch the bottom of the guide block. Tighten the fasteners. See Fig. 13 for details. . 13 12.
  • Page 10 13. Press the Bumper strip (13) on the vertical edge of the sliding Glass door (05) that’s close to the handle and also press the Anti-water strip (17) on the vertical edges of the Stationary glass (02) and the other side of the Glass door. See Fig.

  • Page 11: Product Maintenance

    . 17 Product Maintenance To insure long lasting life for your acrylic back walls, wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.
  • Page 12 SHOWER CABINS (JETTED & STEAM) DreamLine™ warrants glass, acrylic and finish to be free from defects in workmanship for a period of five (5) years from initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer; and plumbing, electrical and steam generator components for a period of one (1) year from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
