Lumens VC-A61P Quick Installation Manual

5100336-51
JUL, 2020

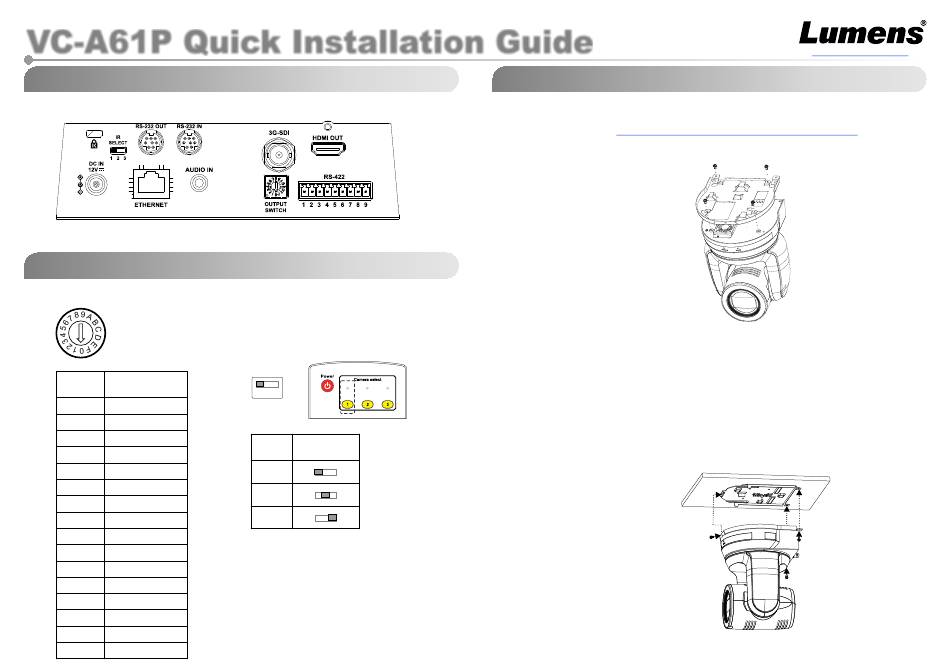

VC-A61P Quick Installation Guide
1. A view of the camera's I/O interface
2. Instruction on DIP SWITCH Setting
2.1 OUTPUT SWITCH
The factory setting
for the resolution is
1080p/59.94
*SDIsupports resolutions
up to 1080p 59.94/50
Setting Output Mode
0 2160p/29.97
1 2160p/25
2 1080p/59.94
3 1080p/50
4 1080p/29.97
5 1080p/25
6 720p/59.94
7 720p/50
8 720p/29.97
9 720p/25
A 1080i/59.94
B 1080i/50
C Reserved
D Reserved
E Reserved
F Reserved
2.2 IR SELECT
After the IR SELECT is configured,
it can be switched from the Camera
Select on the remote control
1 2 3
ID Setting
1
2
3
3. Install the camera on the ceiling
1.Please adjust the resolution on DIP Switch prior to installation.
(Please refer to 2. Instruction on DIP SWITCH Setting
2.Fix the metal plate A on the machine base with 4 M3 silver screws.
3.Lock the metal plate B on ceiling mounted hanger
※Caution:
(1) Please use the hanger that has obtained UL security approval.
(2) Please reserve the hole for the connecting wires of the camera.
4.Combine the metal plate A and the metal plate B
▼Push the metal plate A up to the ceiling and then to the right to
latch the metal plate B.
▼And then secure with 2 M3 silver screws and 1 M3 black screw.
www.MyLumens.com
)
black
screw
