Balanced Body Rialto with Tower Konnector Installing

Installing the Balanced Body
with Tower Konnector
The Konnector is compatible with Balanced Body Rialto
Reformers with tower ONLY. If you aren't sure whether this system
will work with your equipment, please contact Balanced Body at
1-800-PILATES (US and Canada), or +1-916-388-2838 (all other
countries).
To view the installation podcast, please visit
www.pilates.com/instructions
TOOLS REQUIRED (NOT INCLUDED):
» Power Drill
» Phillips Head screw driver
PARTS LIST (INCLUDED):
ITEM
Konnector Rope
Tri-Loops (Grey)
Tri-Loops (Black) with pulleys
Twist lock flanged post ASM
Under carriage ASM
Pulley Assembly for Wood
Shoulder brackets
Pulley Block Assembly
Wood Template
#10 x 5/8 Phillips Pan Head Screw
1/4-20 x 1/2 Flat head screws black
1/4" Flat Washer
1/4-20 Hex Nut
1/4-20 Acorn Nut
5/16" Drill bit
3/32" (2.5 mm) Allen wrench
5/32" Allen wrench
7/32" Allen wrench
7/16" Wrench
™
WARNING: Using the existing shoulder posts with a Konnector
system can cause the loops to fall off the posts during use
which may cause injury.
REMOVE ROPES, SHOULDER BRACKETS AND PADS
1.
2. Unthread each knob from the shoulder rest bracket by hand
3. Using the provided small Allen wrench, remove the four flat
PART NO. QTY
210-054 1
210-061 2
210-060 2
616-401 2
624-002 2
620-083 2
607-546 2
624-003 2
607-542 1
GEN9143 4
GEN6671 4
GEN9204 6

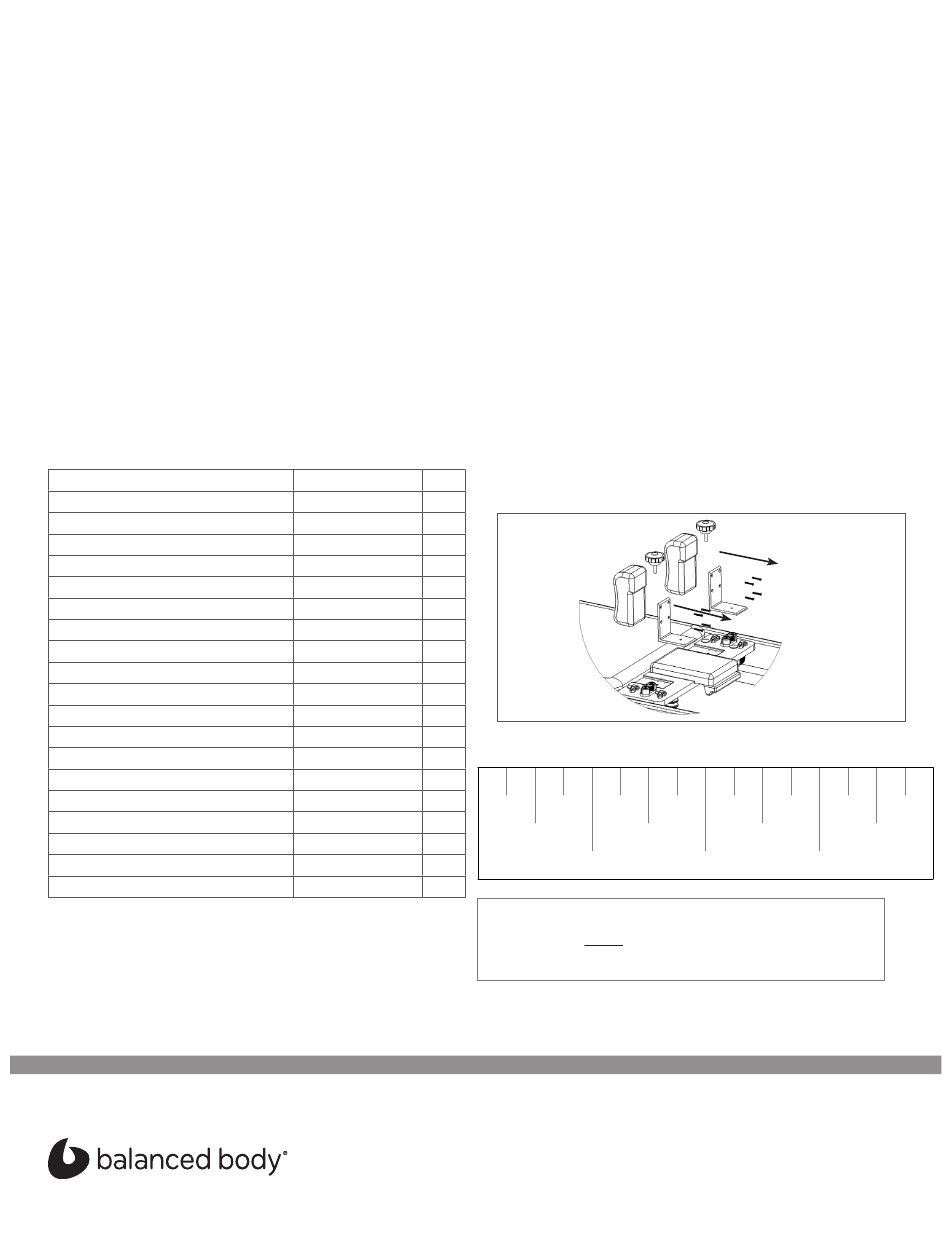

Figure A
GEN9056 6
GEN9181 2
TOL1059 1
TOL1605 1
GEN9282 1
TOL1358 1
616-113 1
WARNING: If you are only using some of the loops, the
unused loops MUST be stored on the flanged shoulder
posts.
Rialto
®
Remove the ropes and loops from your Reformer, they are no
longer needed.
and completely remove them from the shoulder rest bracket.
Remove the shoulder rest bracket from the carriage. Repeat
on the other side.
head screws from each shoulder bracket as shown in Figure
A. Keep theses screws, repeat on the other side.
1 2 3
