Summary of Contents for FourStarGroup 11223134C

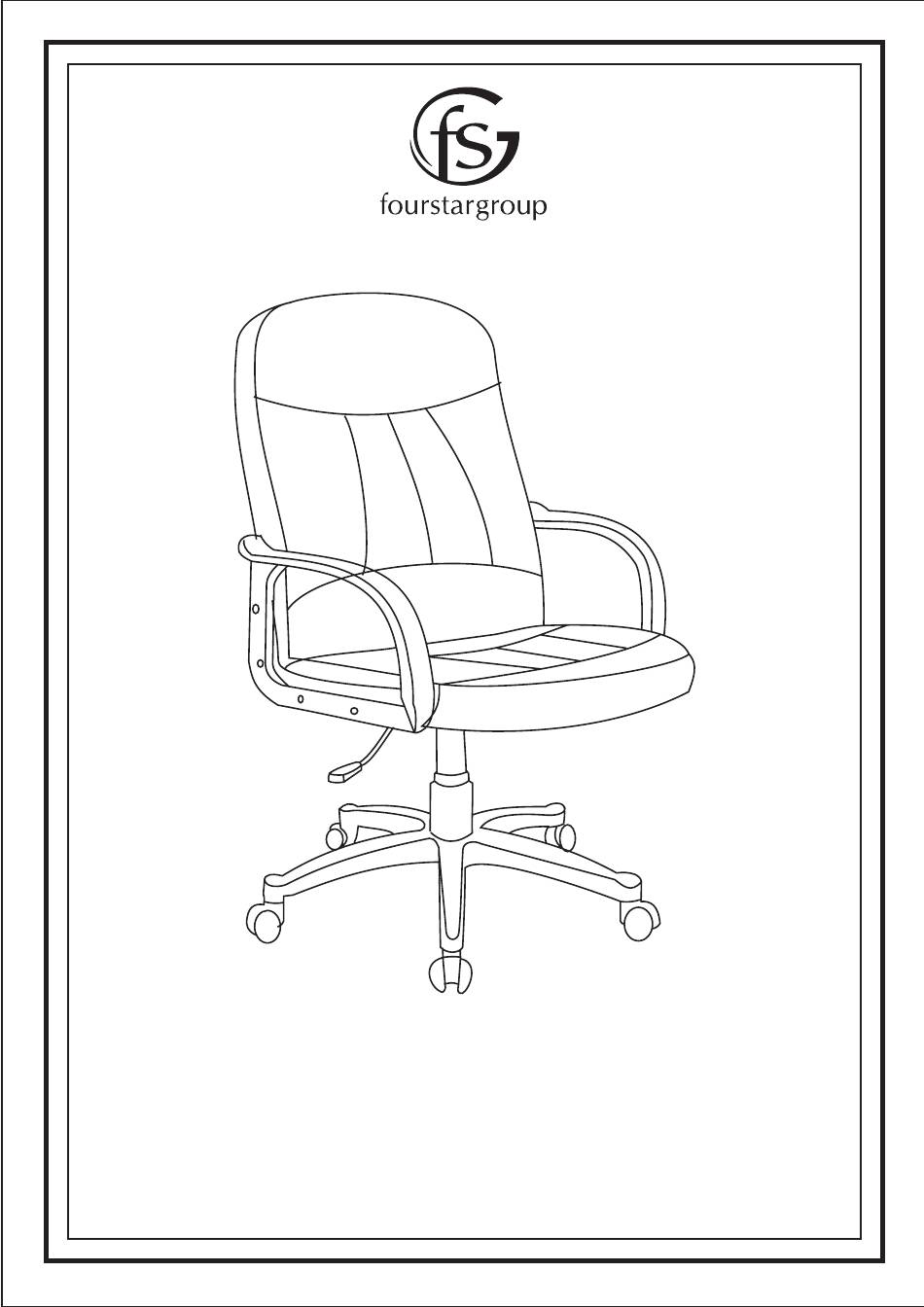

- Page 1 MODEL: 11223134C EXECUTIVE CHAIR FOR HOUSEHOLD USE ONLY...
- Page 2 IMPORTANT SAFEY INSTRUCTIONS Definitions Whenever used, the following terms identify safety and property damage messages and designate a level of hazard seriousness. This is the safety alert symbol. It alerts you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER- Indicates an imminently hazardous situation which if not avoided, will result in death or serious injury.
- Page 3 PARTS LIST AND HARDWARE CASTER 5PCS BASE GAS LIFT TELESCOPIC COVER BOLT 12PCS BOLT CAP 8PCS SEAT PLATE BACK CUSHION SEAT ARMREST 2PCS ALLEN WRENCH...
- Page 4 ASSEMBLY INSTRUCTIONS CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. 2. ASSEMBLE ON A SOFT SURFACE TO PREVENT DAMAGE TO FINISH OF CHAIR. 3. IT IS RECOMMENDED THAT TWO PEOPLE ASSEMBLE TOGETHER. STEP 1. ATTACH THE CASTERS (A) ONTO BASE (B), ATTACH GAS LIFT(C) AND TELESCOPIC COVER (D) AND PLACE ONTO THE GAS LIFT (C) AS SHOWN.
- Page 5 STEP 2. ATTACH SEAT PLATE (G) TO SEAT (I) USING BOLTS (E) WITH ALLEN WRENCH (K) AS SHOWN, MAKE SURE THE “FRONT” LABEL ON THE SEAT PLATE (G) ACES TOWARD THE “FRONT” LABEL ON THE SEAT (I). STEP 3. ATTACH BACK CUSHION (H) AND SEAT (I) WITH ARMRESTS (J) USING BOLTS (E) WITH ALLEN WRENCH (K) AS SHOWN.
- Page 6 STEP 4. INSERT (STEP 1) FINISHED PARTS INTO THE HOLES IN THE UNDERSIDE OF (STEP 2) FINISHED PARTS AS SHOWN. STEP 5. PLACE THE BOLT CAPS (F) ONTO THE ARMRESTS BOLTS AS SHOWN. HEIGHT ADJUSTMENT: TO LOWER THE SEAT, SIT ON IT AND PULL UP ON THE HEIGHT ADJUSTMENT LEVER.
