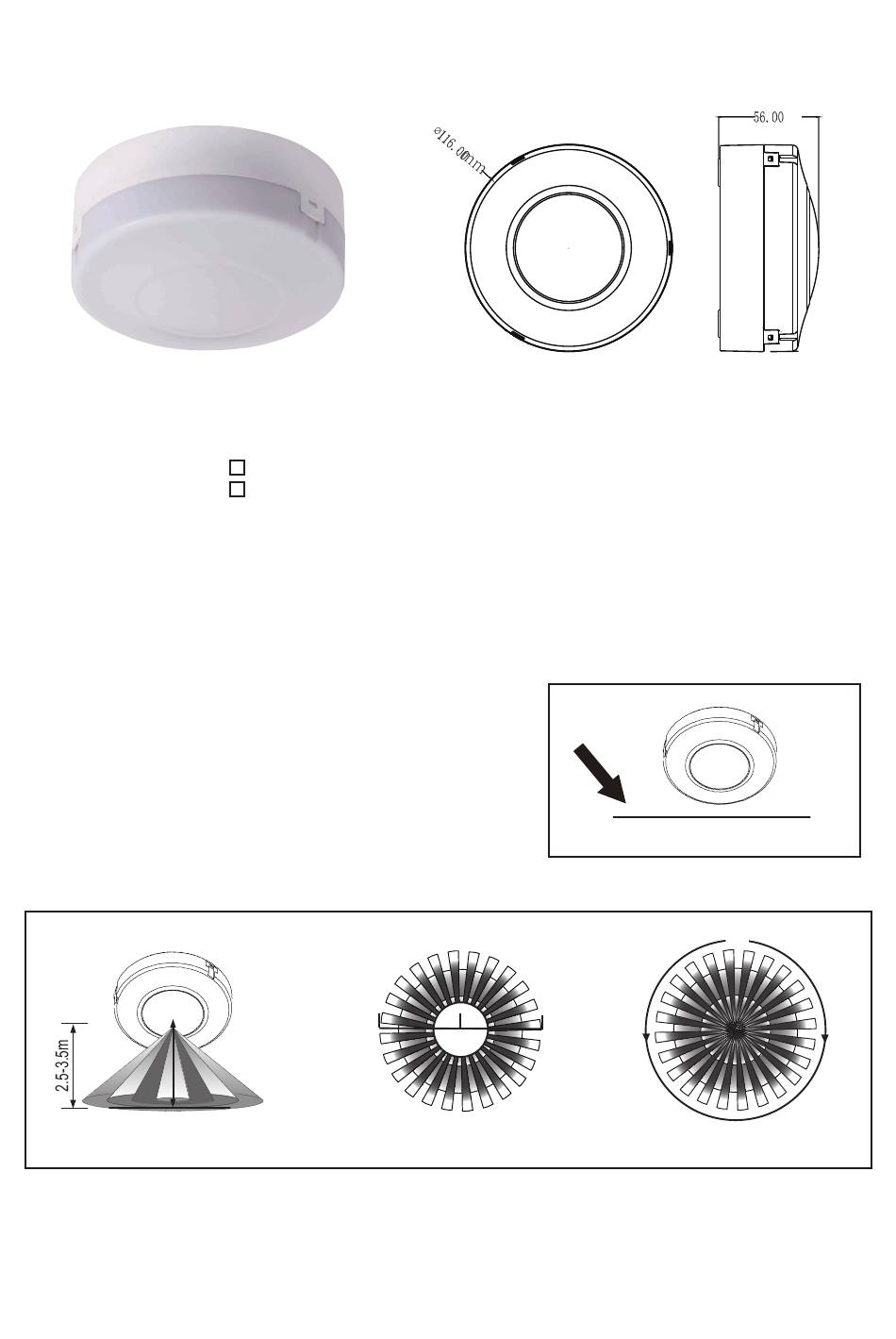

LX-MV-360S8-A Microwave Sensor Instruction
Specifications
Power
source:
100-130V/AC
220-240V/AC
Power
frequency:
50/60Hz
Transmission
power:
<0.2mW
Rated load:
1200W/5A,Max,tungsten(cosφ=1)(220-240V/AC)
300W/2.5A,Max,fluorescent(cosφ=0.5)(220-240V/AC)
600W/5A,Max,tungsten(cosφ=1)(100-130V/AC)
150W/2.5A,Max,fluorescent(cosφ=0.5)(100-130V/AC)
NOTE:
the high-frequency output of
this sensor is <0.2mW- that is just one
th
5000 of the transmission power of a
mobile
phone
or
microwave oven.
Sensor information
Height of installation2.5~3.5M
Utilizing field and introduction

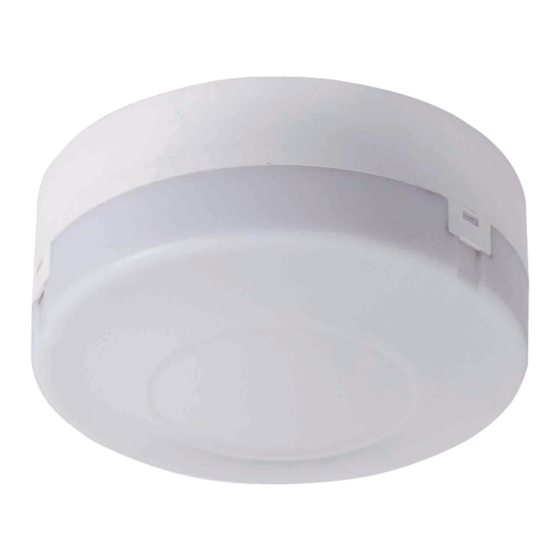

LX-MV-360S8 is a moving object sensor that can detect range of 360°and it's working frequency is 5.8G.The
advantage of this product is stable working state (stable working temperature: -15°C~+70°C), LX-MV-360S8
adopts a microwave sensor(high-frequency output<0.2mW),so that it is safe and performs better than infrared
sensor.
the
output
of
a
Max:10m
(Height of installation2.5~3.5M)
Sensing distance adjustment range
HF
system:
5.8GHz CW electric wave,ISM band
Detection
angle:
360°
Detection range: 2m-5m-10m(radii.) (adjustable)
Time
setting:
12sec±3sec/3min±1min/15min±2min/30min±3min (adjustable)
Light-control:
10LUX-100LUX-500LUX-2000LUX (adjustable)
Installation
sit:
indoors, ceiling mounting
Working temperature: -15°C~+70°C
Power
consumption:
approx.0.5W
Transmission power:<0.2mW
2m
2m
Max:10m
mm
360º
Sensing angle adjustment range
Advertisement
Table of Contents
Related Manuals for Lexing LX-MV-360S8-A
Summary of Contents for Lexing LX-MV-360S8-A
- Page 1 LX-MV-360S8-A Microwave Sensor Instruction Specifications Power source: 100-130V/AC system: 5.8GHz CW electric wave,ISM band 220-240V/AC Detection angle: 360° Power frequency: 50/60Hz Detection range: 2m-5m-10m(radii.) (adjustable) Transmission power: <0.2mW Time setting: Rated load: 12sec±3sec/3min±1min/15min±2min/30min±3min (adjustable) 1200W/5A,Max,tungsten(cosφ=1)(220-240V/AC) Light-control: 10LUX-100LUX-500LUX-2000LUX (adjustable) 300W/2.5A,Max,fluorescent(cosφ=0.5)(220-240V/AC) Installation...
-
Page 2: Installation
Installation 1． Through the buckle under cover(see fig.1)(fig2) 2． Hold base against the Ceiling and mark drill holes, paying attention to any existing wiring in the Ceiling; 3． Drill the holes, insert wall plugs (6mm dia.);(see fig.4); fig.1 fig.2 fig.3 Warning! When you are drilling ,please make sure you wear glasses and dust masks to... -
Page 3: Time Setting
Detection range setting (sensitivity) Detection range is the term used to describe the radii of the more or less circular detection zone produced on the ground after mounting the sensor light at a height of 2.5m, pull switch to the ON position as "1", pull switch to the OFF position as "0”, switch location and detection range of the corresponding table is as follows: Detection range SENS:S1,S2... -
Page 4: Troubleshooting
Warning! The following situation will lead to misoperation 1. Being installed in the rocking object will lead to misoperation. 2. The shaking curtain which is blown by wind will lead to misoperation, please select the suitable installed place. 3. Being installed in the place where the traffic is busy will lead to misoperation. 4. - Page 5 ● Please confirm with prefessional installation. ● Please cut off power supply before installation and removal operations. ● Make sure that you have cut off the power for safety purposes. ● Improper operation caused losses, the manufacturer does not undertake any responsibility. We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety...
