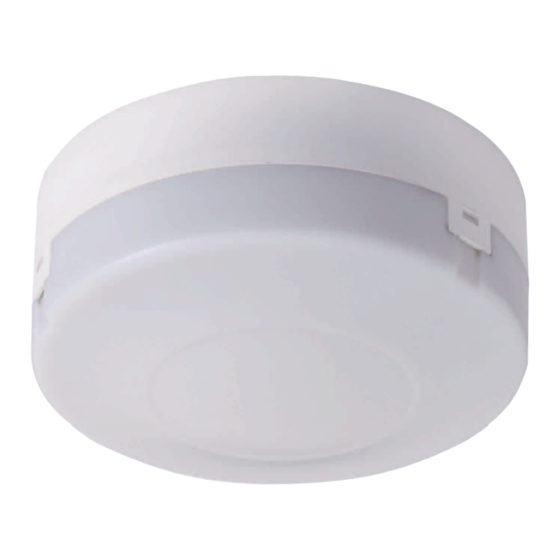

LX-MV-360S10-A Microwave Sensor Instruction
(Translucence)
Specifications
Power source: 90-240V/AC
Power frequency: 50/60Hz
Transmission power: <0.2mW
Rated load:
1200W/5A,Max,tungsten(cosφ=1)(220-240V/AC)
300W/2.5A,Max,fluorescent(cosφ=0.5)(220-240V/AC)
600W/5A,Max,tungsten(cosφ=1)(100-130V/AC)
150W/2.5A,Max,fluorescent(cosφ=0.5)(100-130V/AC)
NOTE:
the high-frequency output of this
sensor is <0.2mW- that is just one 5000 of the
transmission power of a mobile phone or the
output of a microwave oven.
Sensor information
Height of installation2.5~3.5M
Utilizing field and introduction
LX-MV-360S10-A is a moving object sensor that can detect range of 360° and it's working frequency is
5.8G.The advantage of this product is stable working state (stable working temperature: -15°C~+70°C),
LX-MV-360S10-A adopts a microwave sensor(high-frequency output<0.2mW),so that it is safe and performs
better than infrared sensor.
(Transparent)
Installation sit: ceiling mounting
HF system: 5.8GHz CW electric wave，ISM band
Working temperature: -15°C~+70°C
Detection angle: 360°
Detection range: 2m-5m-8m-10m (radii.), adjustable
Time setting: 6sec-1min-3min-5min-10min-15min,adjustable
Light-control: <10LUX-100LUX-300LUX-2000LUX,adjustable
Power consumption: approx.0.5W
th
Max:10m
Min:2m
Min:2m
(Height of installation2.5~3.5M)

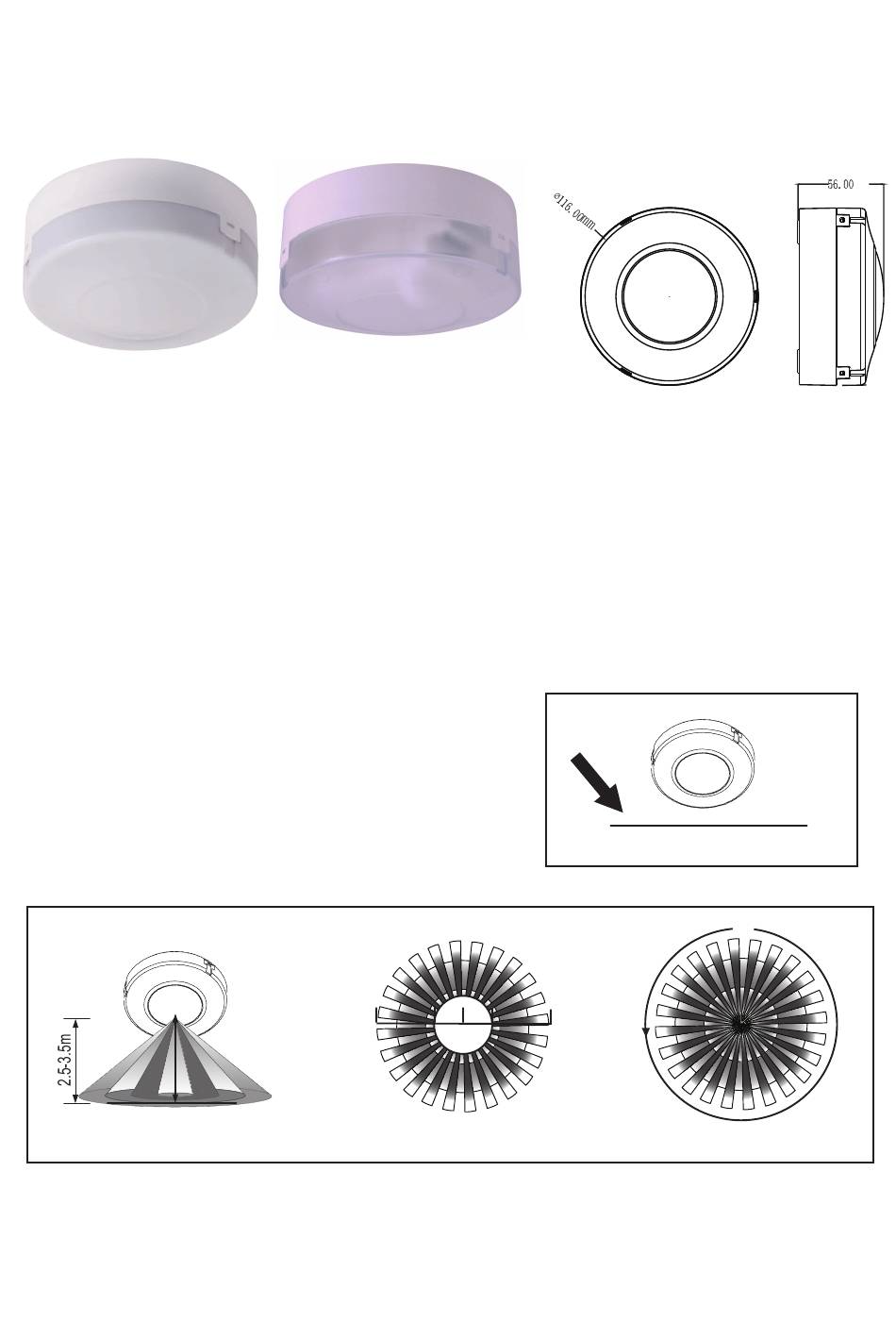

Sensing distance adjustment range
Transmission power<0.2mW
Max:10m
Sensing angle adjustment range
mm
360º
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lexing LX-MV-360S10-A
Summary of Contents for Lexing LX-MV-360S10-A
- Page 1 Height of installation2.5~3.5M Utilizing field and introduction LX-MV-360S10-A is a moving object sensor that can detect range of 360° and it’s working frequency is 5.8G.The advantage of this product is stable working state (stable working temperature: -15°C~+70°C), LX-MV-360S10-A adopts a microwave sensor(high-frequency output<0.2mW),so that it is safe and performs...
-
Page 2: Installation
Installation 1． Through the buckle under cover(see fig.1)(fig2) 2． Hold base against the Ceiling and mark drill holes, paying attention to any existing wiring in the Ceiling; 3． Drill the holes, insert wall plugs (6mm dia.);(see fig.4); fig.1 fig.2 fig.3 Warning! When you are drilling ,please make sure you wear glasses and dust masks to... -
Page 3: Time Setting
If you want LX-MV-360S10-A to detect small zone, you can just adjust the sense sliding controller SENS to the range that you need (You may need to adjust some times untill you think it is suitable).If you want that the light... -
Page 4: Troubleshooting
Warning! The following situation will lead to misoperation 1. Being installed in the rocking object will lead to misoperation. 2. The shaking curtain which is blown by wind will lead to misoperation, please select the suitable installed place. 3. Being installed in the place where the traffic is busy will lead to misoperation. 4. - Page 5 ● Please confirm with prefessional installation. ● Please cut off power supply before installation and removal operations. ● Make sure that you have cut off the power for safety purposes. ● Improper operation caused losses, the manufacturer does not undertake any responsibility. We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety...
