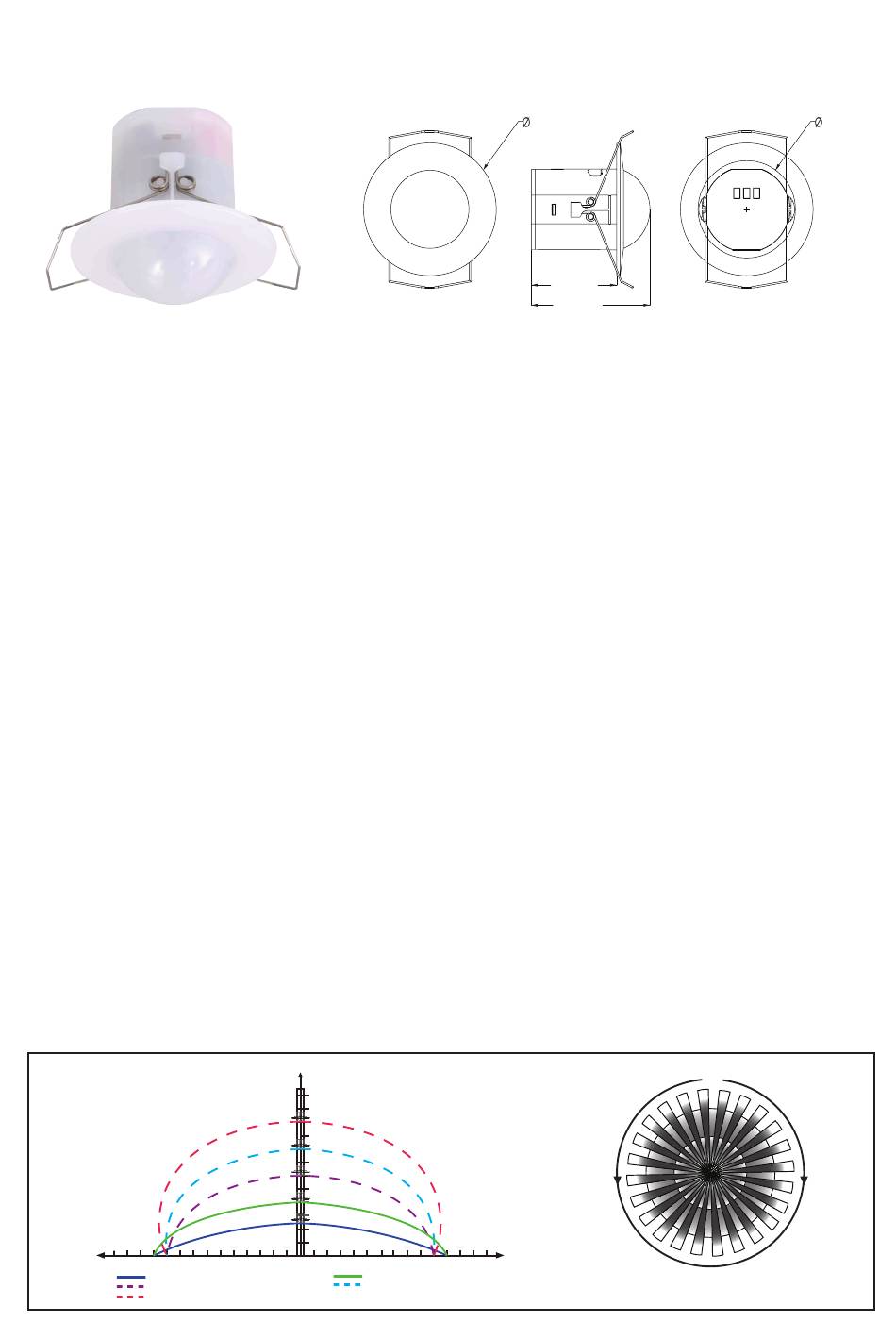

PD-MV1018B Microwave Sensor Instruction

Summary

This is a hi-precision digital microwave sensor whose detection range is 360°and working frequency is
5.8GHz. It is based on Doppler principle which integrates the emitting and receiving. It adopts MCU (Micro
Control Unit) that greatly increases its precision and decreases its fault rate. It's delicate in appearance and
compact in structure. It can be independently connected to the loads or easily installed inside the lightings with
lampshade made of glass or plastic. It is widely applied in the passageway, washroom, elevator, household or
other public areas for security protection or energy saving. It applies for several technical patents and is the
perfect choice for your intelligent living.

Features

1.Non-radiation harm: its transmitter power is lower than 0.3mW, which does no harm to human body.
2.Reliable & Stable performance: it applies the RC filtering and digital filtering in digital processing. It also uses
the digital zero trigger technology, that is, at zero point it will be auto-connected or auto-disconnected. It uses
the Tyco high-power relay to control output, which ensures its reliable performance. It adopts power
management chip to guarantee its stable performance in 100-240VAC.

Specifications

Power source: 100-240VAC
Power frequency: 50/60Hz
Rated
load:1100W Max.tungsten (220-240VAC)
550W Max.fluorescent & LED (220-240VAC)
550W Max.tungsten (100-130VAC)
275W Max.fluorescent & LED (100-130VAC)
Transmission power: <0.2mW
Working temperature: -15°C~+70°C
Protection level: IP20,Class II
Time setting: 8sec to 12min (adjustable)
Sensor information
(Ceiling installation)
L
14
13
12
11
10
9
Detection range: 11m max (Height of installation2.5m)
Detection range: 10m max (Height of installation6m)
Detection range: 10m max (Height of installation10m)
H
12
11
10
9
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
0
1
2
3
4
Ground
68mm
Detection angle: 360°(Ceiling installation),
Detection range: 2-10m(radii.) (adjustable)
Light-ontrol: 2-2000LUX (adjustable)
Installation sit: indoors, ceiling mounting
HF system: 5.8GHz CW electric wave,ISM band
L
5
6
7
8
9
10
11
12
13
14
Detection range: 11m max (Height of installation4m)
Detection range: 10m max (Height of installation8m)
43.7mm
60.7mm
180°(Wall installation)
(Ceiling installation)
25m Max.(radii.) (adjustable)
(Wall installation)
360º
Sensing angle adjustment range
50mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-MV1018B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lexing PD-MV1018B

  • Page 1 PD-MV1018B Microwave Sensor Instruction 68mm 50mm 43.7mm 60.7mm Summary This is a hi-precision digital microwave sensor whose detection range is 360°and working frequency is 5.8GHz. It is based on Doppler principle which integrates the emitting and receiving. It adopts MCU (Micro Control Unit) that greatly increases its precision and decreases its fault rate.
  • Page 2 (Wall installation) 25m Max. 180° Height of installation1-6M Correct moving orientation Detection angle Applications Microwave can penetrate the glass, plastic and wood, thus the microwave sensor can be installed inside the shade made of certain thickness of glass, plastic or wood. For example, the application in lightings, only if making connection as below shown can you change the common lightings into auto-sensing lightings.
  • Page 3 Detection range setting(sensitivity) Detection range is the term used to escribe the radii of the roughly circle casting on the ground when installed at the height of 2.5 m. To turn the knob fully anti-clockwise is the minimum range, fully clockwise is the maximum. 2-10m Note: the above detection range is gained in the case of a person who is between 1.6m~1.7m tall with middle figure and moves at a speed of 1.0~1.5m/sec.
  • Page 4 Installation  Switch off the power.  Set threaded tubes into the power cord and control line.  Connect the power and the load with the sensor according to the connection-line diagram.  Turn the knobs to the ideal conditions (Please define the settings as per the above SETTING MANNER ONE part mentioned.).
