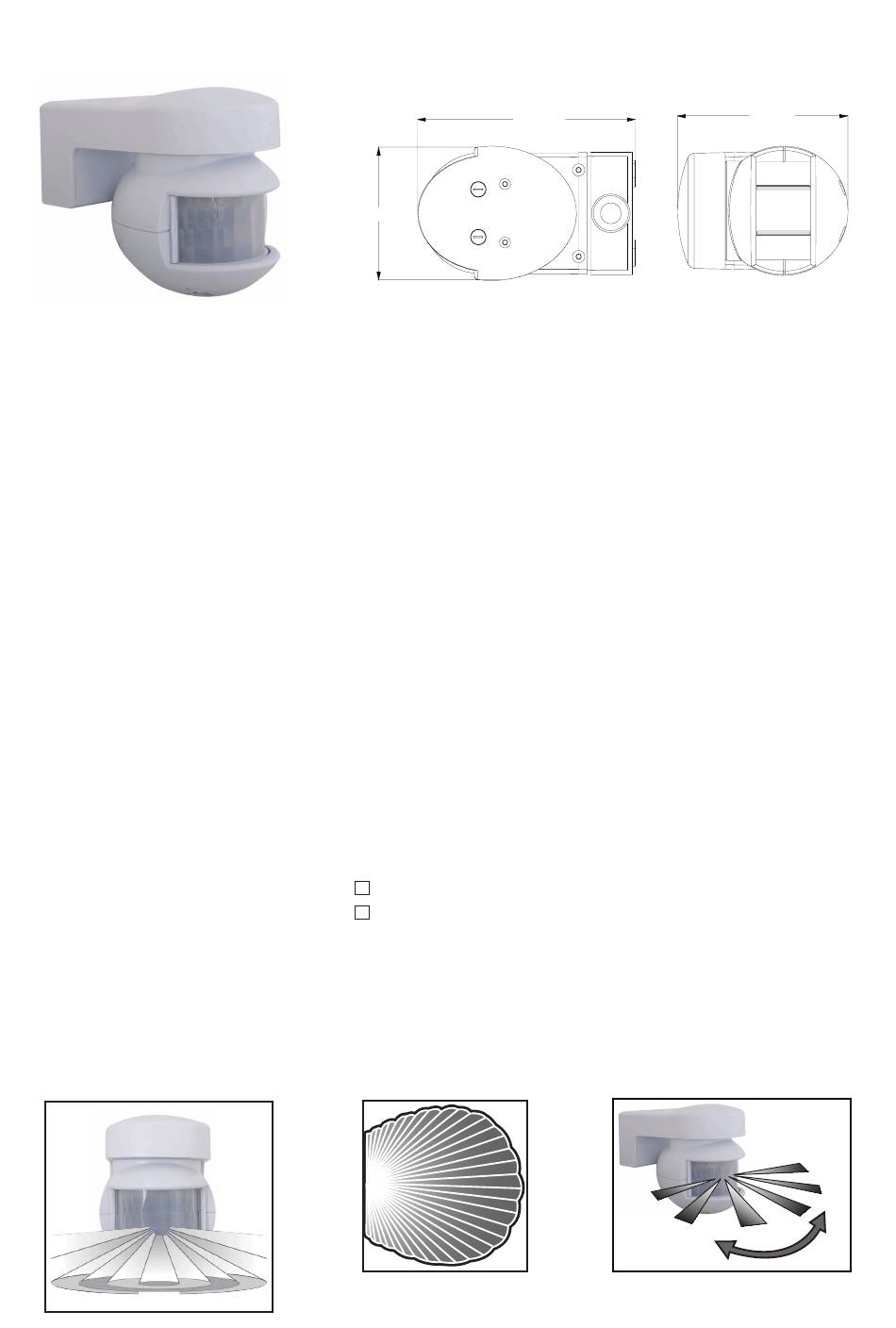

LX-PR-65S-Z Infrared Sensor Instruction
Summary
This product is an advanced digitally controlled infrared pyroelectric intelligent sensor product.This product uses one
high-resolution sensor that is almost twice the sensitivity of a single traditional sensor.It uses the MCU to accurately
calculate the switch information, and accurately controls the relay to be turned on at the zero point of the sine wave, so
that each load is turned on. At the zero point of the sine wave, the inrush current problem caused by the conventional
control mode when the sine wave high voltage is turned on is avoided, especially the large current damage relay
generated by the large-capacity capacitor under the impact of the high voltage under the load.
Due to the diversification of current electrical loads, especially LED lamps, energy-saving lamps, and fluorescent lamps
all have capacitors with different capacitances. This is a disaster for relays. Sometimes a 50W LED lamp can generate
surge currents of 80 to 120A. The 10A ordinary relay can only withstand 3 times of the inrush current, and it is likely that
the relay will be broken in a few days or several times. This is why the conventional sensor on the market has a short
life and a small load current.
In order to overcome this problem, this product adopts advanced digital precision calculation to turn on the load when
the sine wave is at zero potential, thus solving the load surge current problem, greatly enhancing the load capacity and
prolonging the service life of the product. The latest control method of mass production sensor technology can easily
control any load. It is a medium and high-end product. Although the cost is increased compared with the conventional
version, the reliability and life of the product are greatly increased. This product is equal to choosing peace of mind, and
choosing safety.
This product has a switching power supply version and a capacitor step-down version. The switching power supply
version has a working voltage of up to 100V-277V and a standby power consumption of <0.5W. In principle, the
capacitive step-down version can only have a single voltage, and the standby power consumption is >0.7W. You should
consider it when choosing a product.
Specifications
Power source: 220-240VAC,50Hz/60Hz
100-130VAC,50Hz/60Hz
All loads：1200W（220-240VAC ）
800W（100-130VAC）
Time setting: 10sec-12min (adjustable)
Detection range(22°C): 10m Max.
Sensor information
123mm
76mm
Light-control: ＜10LUX-2000LUX (adjustable)
Detection angle: 110º(adjustable)
Working temperature: -10°C-+40°C
Installation height: 1.8-2.5m
Working humidity: <93%RH
Detection motion speed: 0.6-1.5m/s
10m
Detection range（22℃）
100mm
110°
Detection angle
Advertisement
Table of Contents
Related Manuals for Lexing LX-PR-65S-Z
Summary of Contents for Lexing LX-PR-65S-Z
- Page 1 LX-PR-65S-Z Infrared Sensor Instruction 100mm 123mm 76mm Summary This product is an advanced digitally controlled infrared pyroelectric intelligent sensor product.This product uses one high-resolution sensor that is almost twice the sensitivity of a single traditional sensor.It uses the MCU to accurately calculate the switch information, and accurately controls the relay to be turned on at the zero point of the sine wave, so that each load is turned on.
- Page 2 Function LUX adjustment: LUX refers to the illuminance of the environment. Adjusting the LUX adjustment knob allows you to choose which illuminance you want to get the sensor into the induction. Choose the habit that suits you. Some of the choices in the 20LUX solution are to be illuminated. Some choose 50LUX ambient illumination to be inductive lighting, and some choose to be inductive lighting at any time, as long as the LUX adjustment knob is adjusted to the maximum.
- Page 3 (2)Light-control setting Adjust working light. Turn clockwise to increase it and turn anti-clockwise to decrease it. When turn to mini, it will only work below the light-control about 10LUX, when turn to max, it can work any light-control. <10-2000LUX Test 1.
- Page 4 Warning! ● Please confirm with prefessional installation. ● Please cut off power supply before installation and removal operations. ● Make sure that you have cut off the power for safety purposes. ● Improper operation caused losses, the manufacturer does not undertake any responsibility. This manual is for the current content programming of this product, there are any changes and modifications to the manufacturer without notice! This instruction, without our permission, should not be copied for any other purposes.
