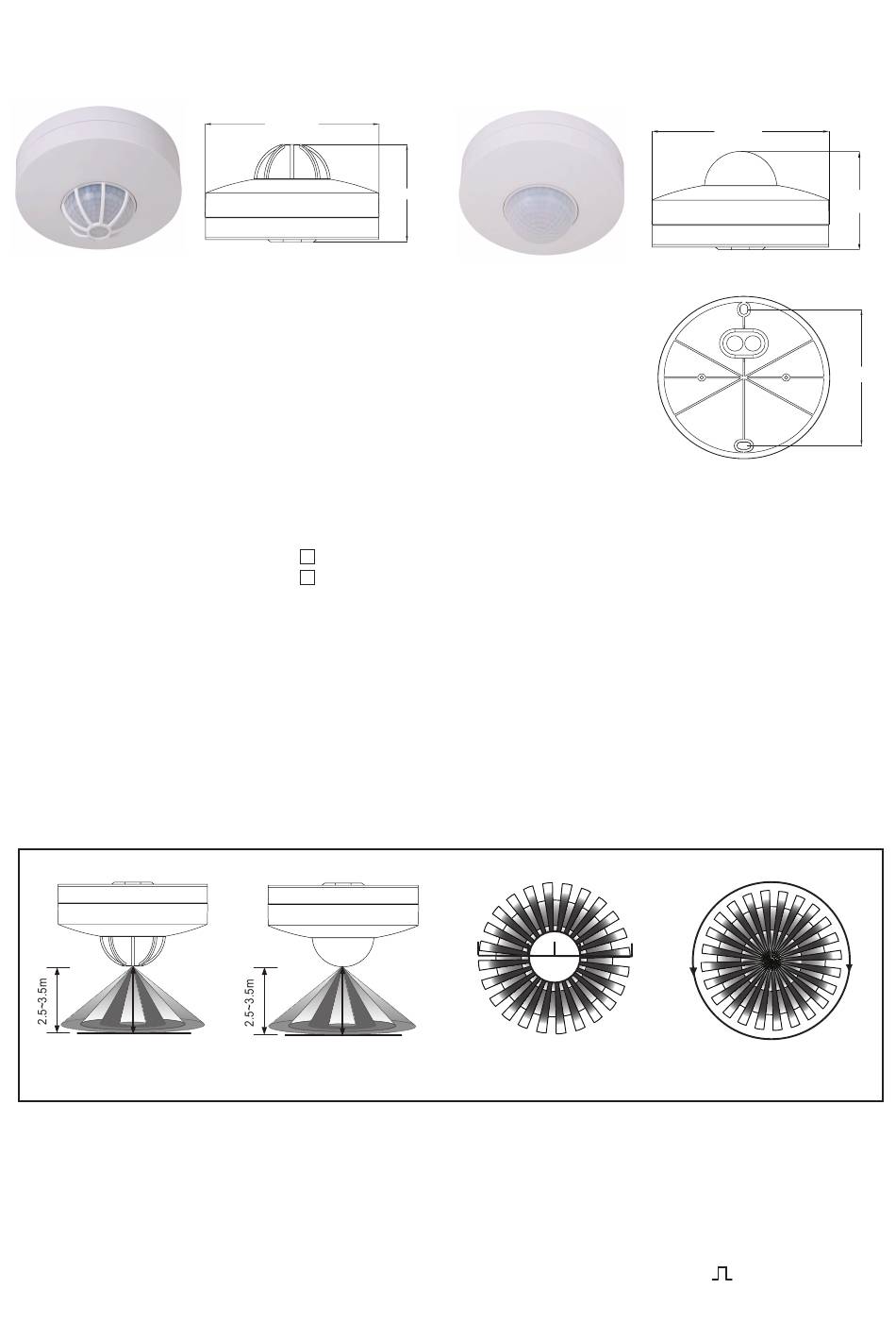

LX-PR-29B Infrared Sensor Instruction
Summary
The product is a new saving-energy switch, it adopts good sensitivity
detector, integrated circuit and SMT. It gathers automatism, convenient safe,
saving-energy and practical functions. Three detectors inside compose a
wide range detection field, it utilizes the infrared energy from human as
control-signal source, it can start the load at once when one enters detection
field. It can identify day and night automatically. It is easy to install and used
widely, possessing the functions of power show and detecting show.
Specifications
Power source: 220-240V/AC,50Hz
100-130V/AC,60Hz
Rated load: 1200W Max.tungsten (220-240V/AC)
300W Max.fluorescent (220-240V/AC)
600W Max.tungsten (100-130V/AC)
150W Max.fluorescent (100-130V/AC)
Standby power: working 0.45W(static 0.1W)
Sensor´s LED:
1. It always light after switch on power, and be off after the unit enter working state.
2. It light once when the unit receives sensing signal.
Sensor information
Height of installation2.5~3.5m
Function
You can manually adjust the time setting, sensitivity and light-control (For detail: see 1.knob setting); it is very
easy to use. Install sensor at 2.5~3.5m position on the wall (For detail: see 3. installation instruction) and
connect the wire according to the 2. connection figure. Switch on power, after about 1 minute the unit enter
stable working state. Here please turn TIME knob to the position close to minimum, and turn LUX to sun for
testing. If it works normally, turn the TIME knob to the minimum" IMPULSE" position(
again, the controlled lamp will be turned on and off regularly. If the above tests go through, then select the time,
light-control and sensitivity to your need. So its installation is ok.
105mm
59mm
Height of installation2.5~3.5m
Time setting: 10sec~12min(adjustable)
Light-control: 10LUX~2000LUX(adjustable)
Detection range: 3-10m (radii.)(adjustable)
Detection angle: 360º (ceiling installation)
Installation height: 2.5~3.5m
Working temperature: -10°C~+40°C
Sense motion speed: 0.6~1.5m/s
3m
3m
10m
3 X Detectors 3-10m
Sensing distance adjustment range
105mm
360°
10m
Sensing angle range
). When it senses
-29B
58mm
88.0mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lexing LX-RP-29B
Summary of Contents for Lexing LX-RP-29B
- Page 1 -29B LX-PR-29B Infrared Sensor Instruction 105mm 105mm 59mm 58mm Summary The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, 88.0mm saving-energy and practical functions. Three detectors inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field.
- Page 2 Knob setting ① SENS: Adjust detection range. Turn clockwise to increase it and turn anti-clockwise to decrease it. It is 3m when turn to mini, and it is 10m when turn to max. ② TIME: Adjust time setting of load work. Turn clockwise to increase it and turn anti-clockwise to decrease it. The time setting is about 12min when turn to max.
- Page 3 Note Should be installed by electrician or experienced man. Avoid installing it on the unrest objects. There shouldn’t be hindrance and moving object in front of the detection window effecting detection. Avoid installing it near air temperature alteration zones such as air condition, central heating, etc. ...
