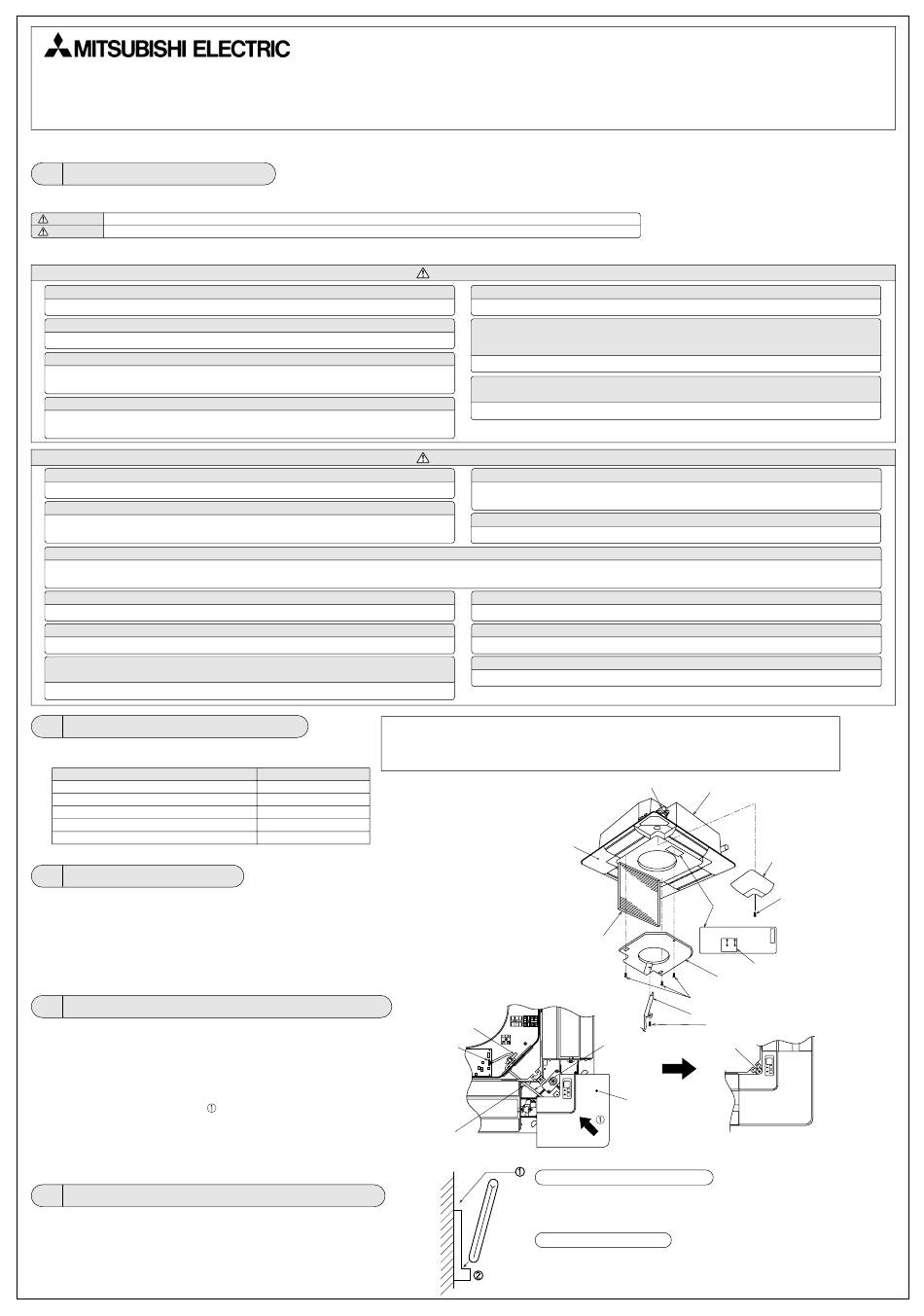

Mitsubishi Electric PAR-SW96U-E Installation Manual

RG79D052H01
Mitsubishi Package Air-Conditioner
Wireless Remote Controller Kit
PAR-SW96U-E
Installation Manual
This manual describes the installation for wireless remote controller of the Mitsubishi package air-conditioner.
Read this manual or unit's installation manual carefully.
１ Safety Precautions
・ Read these "safety Precautions" thoroughly and install securely.
・ Precautions are classified using the following symbols depending on the extent and type of danger by erroneous handling.
WARNING Erroneous handling can cause death or serious injury.
CAUTION Erroneous handling can cause personal injury or damage.
・ After using this manual, be sure to pass it to the customer together with the instruction manual provided with indoor unit. Ask the customer to keep this installation manual and the
instruction manual in a handy place, and to show them to the engineer when the air-conditioner is moved or repaired. Also ask the customer to pass them to any new user.
Ask a dealer or specialist to install the unit.
・ Incomplete installation could cause electric shock, fire, etc.
ecurely install the unit in a place that can withstand the weight.
・ Otherwise, the unit could fall, which could cause injury.
Never modify the unit or repair it by yourself.
・ Modification or incorrect repair could cause electric shock, fire, etc. Consult the dealer
from whom you purchased the unit.
Do not move the unit by yourself.
・ Incomplete installation could cause electric shock, fire, etc.Ask the dealer or a specialist
for installation.
Do not install the unit in a place where flammable gas could leak.
・ If gas leaks or accumulates around the unit, it could cause ignition, explosion, etc.
Do not use the unit in an abnormal environment.
・ Usage in a place where there is much oil (including machine oil), steam, sulfide gas,
etc. could greatly degrade its performance or damage components.
Take sufficient countermeasures against noise when the unit is installed in hospital, communication office, etc.
・ This unit could malfunction when affected by inverter equipment, private electric generator, high-frequency medical instruments, radio communication devices, etc. Also, this unit
could adversely affect medical instruments, communication devices, etc., thus interfering with human medical treatment, or causing disturbance in broadcast pictures or noise.
When doing wiring, make sure that wires are not subject to tension.
・ Tension on wires could disconnect them, or cause heat, fire, etc.
Do not rinse this unit with water.
・ Doing so could cause fault, electric shock, etc.
Do not install the unit in a place where the ambient temperature is over 40
0 , or exposed to direct sunlight.
℃
・ Installing in such a place could cause deformation, fault, etc.
２ Making Sure of Components
Make sure that the following components, along with this manual, are
packed in the box.
Component
Wireless Receiving Unit （Corner Panel）
Wireless remote controller
Remote control holder
"AAA" LR03 alkaline batteries
4.1x16 wood screws
３ Before installation
●Open the intake grill and remove the corner panel where refrigerant pipes are and where local wires are
drawn into.
※The corner panel removed is not needed.
●Remove the thermistor for room temperature fixed by 1 screw and the control box cover fixed by 3
screws,which is possible to hang temporarily.
４ Installation of wireless receiving unit
●Bring the cable of wireless receiving unit through the square hole
underneath the corner panel removed where refrigerant pipes are and
where local wires are drawn into.
●As shown in the figure,pull the cable into the inside of the control box
and connect it to CN90 on the indoor controller board. Then fix the
cable by the clamp, being able to remove the receiving unit afterwards in
case.
●Slide the receiving unit in the
screw which is used for the corner panel removed.
●After the installation completed, set the control box and the thermistor
as they were .
５ Installation of remote control holder
Remote control holder can be used for keeping the remote controller on the wall.
PAR− ＳW96U−E
1
1
1
2
2
※Turn off the main power before work.
direction as shown and fix it by the
WARNING
ecurely install the unit, referring to this installation manual.
・ Incomplete installation could cause electric shock, fire, etc.
All accessories must be installed by an authorized technician.The user must not try to
install accessories.Improperly installed accessories can cause water leakage,electric
shock or fire.
・ Shortage in electrical circuit capacity or incomplete construction could cause fire, etc.
ecurely connect the specified remote control cord, and fix it so that the terminal
connector is free from any external force via the cord.
・ Incomplete connection or fixing could cause heat, fire, etc.
CAUTION
Do not install the unit in a bathroom, kitchen, etc. where a great amount of steam is generated.
・ Avoid installing in a wall where condensation occurs. Installing in such a place could
cause a fault, electric shock, etc.
Do not install the unit in a place where acid solution, alkaline solution, special spray, etc. are frequently used.
・ Installing in such a place could cause fault, electric shock, etc.
Do not touch circuit boards with hands or tools, or allow dust to adhere to them.
・ Failure to do so could cause fault, fire, etc.
Do not operate buttons with wet hands.
・ Failure to do so could cause fault, electric shock, etc.
or below Do not push buttons with sharp objects.
℃
・ Failure to do so could cause fault, electric shock, etc.
Note The remote signal will reach the receiver over a distance of approx. 7 m in a straight
line and approx. 45゜ left or right. If the infrared receiver is affected by fluorescent light
(especially, inverter type), it may not be able to receive the signal. Take this into
consideration when installing fluorescent lights or replacing them.
Grill
Cramp
Indoor Controller
Board CN90
Square hole
Fitting remote controller into holder
① Fix the remote control holder to the wall using
the two wood screws provided.
② Insert the remote controller into the holder.
Removing remote control
●Pull out the remote controller.
Refrigerant pipes
Indoor Unit
Indoor
Controller
Board
Intake Grill
ペアNO．
Cont. Box Cover
Screw
Intake Sensor
Screw
Cable
Screw
Wireless Receiving Unit
（Corner Panel）
Corner Panel
Screw
Jumper Wire
