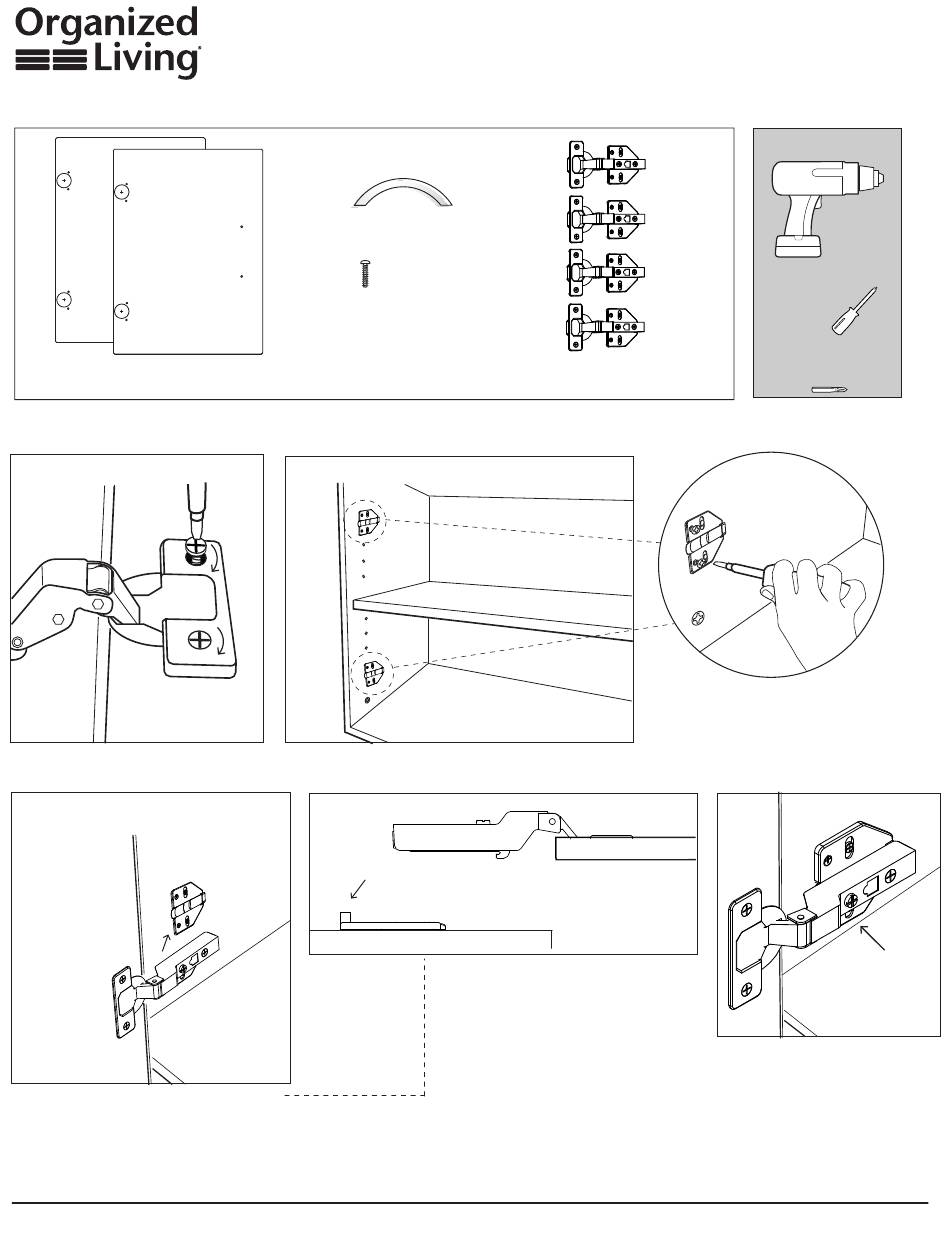

freedomRail Assembly Instructions
Doors for 1 Shelf OBox
(2) Handles
1" Machine Screws
(4)
(for Handles)
Step 2: Install 2 Hinge Plates on Each Side of Cabinet
Place Hinge Plate into Cabinet by aligning Euro Screws with Top and
Bottom Pairs of Holes. Tighten Euro Screws to secure Hinge Plate.
Detail A Top View
Hinge Plate on GOBox
(4) Soft Close Hinge Assembly
and Hinge Plates
Hinge Assembly and Door
Over
Tools Required
Power Drill
#2 Phillips
Screwdriver
#2 Phillips Driver
Snap
(b) Rotate Hinge Assembly until it snaps into
place. NOTE: Depending on the installation of the
Doors, there will be (2) holes at the top left or
bottom right corner of the Door.
1
