- Page 1 Remote Access Gateway IGW/910 with DNP/9535 Hardware Reference SSV Software Systems GmbH Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.0 Email: sales@ssv-embedded.de Date: 2019-12-11...
-
Page 2: Table Of Contents
Remote Access Gateway IGW/910 – Hardware Reference CONTENT INTRODUCTION ....................... 3 Safety Guidelines ........................3 Conventions ........................... 3 Block Diagram ........................4 Features and Technical Data ....................5 OVERVIEW ........................6 PINOUTS .......................... 7 Ethernet Interface ........................7 Screw Terminals ........................7 COM Ports 1..8 (D-Sub DB25 male) .................. -
Page 3: Introduction
Remote Access Gateway IGW/910 – Hardware Reference INTRODUCTION This document describes the basic hardware components of the Remote Access Gateway IGW/910. Safety Guidelines Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this manual and/or by incorrect handling, we do not assume liability. -
Page 4: Block Diagram
Remote Access Gateway IGW/910 – Hardware Reference Block Diagram Figure 1: Block diagram of Remote Access Gateway IGW/910 D o c u m e n t R e vi s i o n 1 . 0... -
Page 5: Features And Technical Data
Remote Access Gateway IGW/910 – Hardware Reference Features and Technical Data Processor Manufacturer / Type Atmel ATSAM-A5D35 SoC Clock speed 528 MHz Memory 256 MB SDRAM Flash 4 MB NOR memory Storage media 1x internal microSD card holder Interfaces Ethernet... -
Page 6: Overview

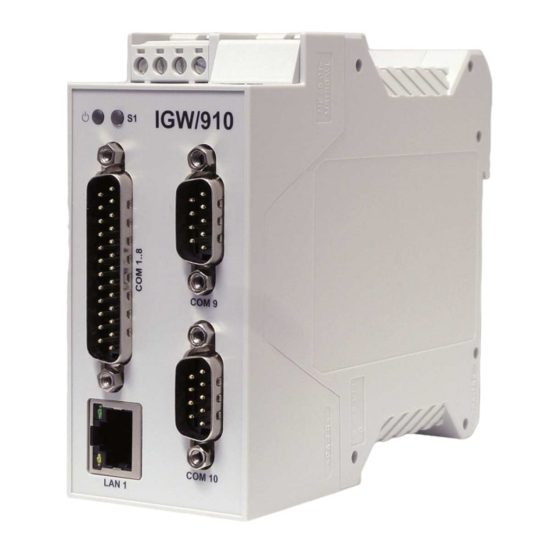

Remote Access Gateway IGW/910 – Hardware Reference OVERVIEW Figure 2: Overview Remote Access Gateway IGW/910 D o c u m e n t R e vi s i o n 1 . 0... -
Page 7: Pinouts
Remote Access Gateway IGW/910 – Hardware Reference PINOUTS Ethernet Interface Pin Name Function 10/100 Mbps LAN, TX+ 10/100 Mbps LAN, TX- 10/100 Mbps LAN, RX+ Bob-Smith Termination Bob-Smith Termination 10/100 Mbps LAN, RX- Bob-Smith Termination Bob-Smith Termination Table 2: Pinout Ethernet interface... -
Page 8: Com Ports 1
Remote Access Gateway IGW/910 – Hardware Reference COM Ports 1..8 (D-Sub DB25 male) Pin Name Function Ground RXD1 COM1 Serial Port: RS232 RXD TXD1 COM1 Serial Port: RS232 TXD Ground RXD2 COM2 Serial Port: RS232 RXD TXD2 COM2 Serial Port: RS232 TXD... -
Page 9: Com Port 9 (D-Sub De9 Male)
Remote Access Gateway IGW/910 – Hardware Reference COM Port 9 (D-Sub DE9 male) Pin Name Function Not connected RXD9 COM9 Serial Port: RS232 RXD TXD9 COM9 Serial Port: RS232 TXD Not connected Ground Not connected Not connected Not connected Not connected... -
Page 10: Linux Device Map
Remote Access Gateway IGW/910 – Hardware Reference LINUX DEVICE MAP This table shows which Linux device name is assigned to which interface of the IGW/910. Interface Name Linux Device Name Note eth0 LAN 1 ttyS0 Linux console for debug, RS232 on DNP... -
Page 11: Helpful Literature
Information in this document is provided ‘as is’ without warranty of any kind. Some names within this document can be trademarks of their respective holders. © 2019 SSV SOFTWARE SYSTEMS GmbH. All rights reserved. D o c u m e n t R e v i s i o n 1 . 0...
