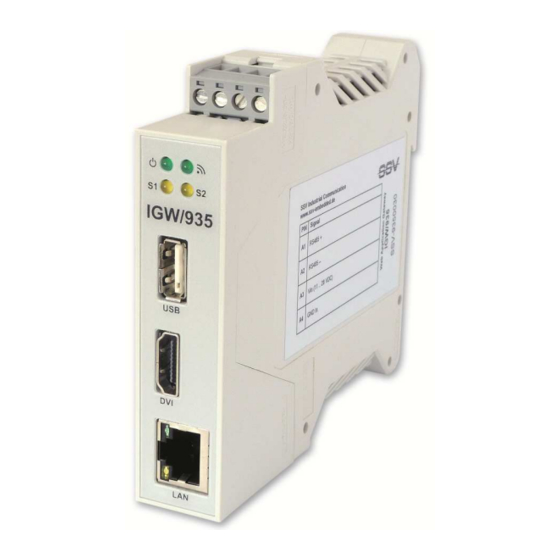

- Page 1 Web Application Gateway IGW/935 with eSOM/3517 First Steps SSV Embedded Systems Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.3 Email: sales@ssv-embedded.de Date: 2018-08-29...
-
Page 2: Table Of Contents
Web Application Gateway IGW/935 – First Steps CONTENT INTRODUCTION ....................... 3 Checklist ..........................3 Required Equipment ......................3 Conventions ........................... 3 SAFETY GUIDELINES ..................... 4 CONNECTIONS ........................ 5 Ethernet Link .......................... 5 DVI/HDMI Video Link ......................6 RS485 Serial Port COM1 ......................7 Power Supply ......................... -
Page 3: Introduction
Web Application Gateway IGW/935. Checklist Compare the content of your Web Application Gateway start-up package with the checklist below. If any item is missing or appears to be damaged, please contact SSV. Web Application Gateway IGW/935 with eSOM/3517 Documentation... -
Page 4: Safety Guidelines
Web Application Gateway IGW/935 – First Steps SAFETY GUIDELINES Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this manual and/or by incorrect handling, we do not assume liability. In such cases any warranty claim expires. -
Page 5: Connections
The following chapters describe how these connections have to be made. Ethernet Link The Ethernet link between the PC and LAN1 of the IGW/935 can be made on two ways: Direct with an Ethernet cross-over cable like shown in figure 1. -
Page 6: Dvi/Hdmi Video Link
Web Application Gateway IGW/935 – First Steps DVI/HDMI Video Link Use the DVI/HDMI video cable to connect an external monitor device with the IGW/935 like shown figure 3. Figure 3: DVI/HDMI video link D o c u m e n t R e v i s i o n 1 . 3... -
Page 7: Rs485 Serial Port Com1
Web Application Gateway IGW/935 – First Steps RS485 Serial Port COM1 To create an RS485 serial link on port COM1 of the Web Application Gateway IGW/935 connect an RS485 device like shown in figure 4. Figure 4: RS485 link on serial port COM1... -
Page 8: Power Supply
Table 3: Screw terminal power CAUTION! Providing the IGW/935 with a higher voltage than the regular 12 .. 24 VDC ±10%could cause damaged device components! Do NOT turn on the power supply while connecting it with the IGW/935. This could cause damaged device components! First connect the power supply and THEN turn it on. -
Page 9: Operation
Linux out of its Flash memory. This may take up to one minute. Accessing the SSV/WebUI WebConfig To open the login page of the SSV/WebUI enter the ex-factory IP address and port number of LAN1 of the IGW/936 manually in a web browser: http://192.168.0.126:7777*... -
Page 10: Accessing The Ssv/Webui With Dhcp Enabled
Accessing the SSV/WebUI with DHCP enabled If the automatic IP address configuration of LAN1 via DHCP is enabled, you have to check the assigned IP address, which is necessary to access the IGW/935 via a Telnet client or a web browser. - Page 11 Figure 8: The properties dialog shows the current IP address Now you are able to access the IGW/935 via a Telnet client or a web browser. D o c u m e n t R e v i s i o n 1 . 3...
-
Page 12: Firewall Configuration
Web Application Gateway IGW/935 – First Steps Firewall Configuration Choose from the menu Services > Firewall and NAT. Figure 9: Firewall and NAT settings 1. In the section Firewall configuration enable the checkbox. 2. In the section Forwarding with IP-Masquerading and NAT enable the checkbox. -
Page 13: Lan1 Configuration
1. In the section IP address configuration enable the radio button automatically. 2. Click on [Apply]. Please note: After DHCP was enabled, it is necessary to re-log into the SSV/WebUI with the new assigned IP address of LAN1. Please refer to chapter 4.3 to find out the current IP address. -
Page 14: Accessing The Ssv/Webui Demo Page
Web Application Gateway IGW/935 – First Steps Accessing the SSV/WebUI Demo Page To open the demo page of the SSV/WebUI enter the current IP address of the IGW/935 in a web browser, e.g.: http://192.168.0.126 Figure 11: Demo page of the SSV/WebUI The same demo page is visible if an external video monitor is connected to the IGW/935 DVI/HDMI video interface. -
Page 15: Access Via Telnet
Access via Telnet To access the IGW/935 via Telnet please open a Telnet client program (like e.g. TeraTerm) on your host PC and enter the current IP address* of the IGW/935 to activate a Telnet ses- sion. In the upcoming Telnet window you can login with the username root and the password root. -
Page 16: Access Via Ftp
Access via FTP The IGW/935 comes with a pre-installed FTP server, which allows the file transfer via Ethernet between a PC and the IGW/935. To access the IGW/935 via FTP use an FTP client like e.g. FileZilla. Figure 13: FileZilla as FTP client to access the FTP server Use for the FTP login the current IP address* of the IGW/935, the username root and the password root. - Page 17 Web Application Gateway IGW/935 – First Steps mount / -o remount,rw This command „mounts„ the file system as read/write. All files are now writable and deletable. Please pay attention not to damage important system files! With the command mount / -o remount,ro the system is set back to the read-only initial condition after the boot process.
-
Page 18: Software Expansions / Apps
Web Application Gateway IGW/935 – First Steps SOFTWARE EXPANSIONS / APPS SSV offers some apps for the IGW/935 to expand its functionality. Most of the apps are for free; some apps require a license. The apps can be obtained on the following website: https://www.ssv-embedded.de/downloads/igw935/... -
Page 19: Trouble Shooting Ip Address Problems
If the IP addresses of LAN1 and LAN2 are not configured properly it is possible, that the SSV/WebUI (the configuration user interface) of the IGW/935 cannot be accessed anymore. In that case it is necessary to restore the factory settings of the IGW/935. To do so please follow these steps: Connect the LAN1 interface of the IGW/935 via a cross-over-cable with the LAN inter- face of a Windows PC. -
Page 20: Helpful Literature
Web Application Gateway IGW/935 – First Steps HELPFUL LITERATURE IGW/935 hardware reference manual • eSOM/3517 hardware reference manual • CONTACT SSV Embedded Systems Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Email: info@ssv-embedded.de Internet: www.ssv-embedded.de Forum: www.ssv-comm.de/forum...
