Summary of Contents for SSV IGW/941

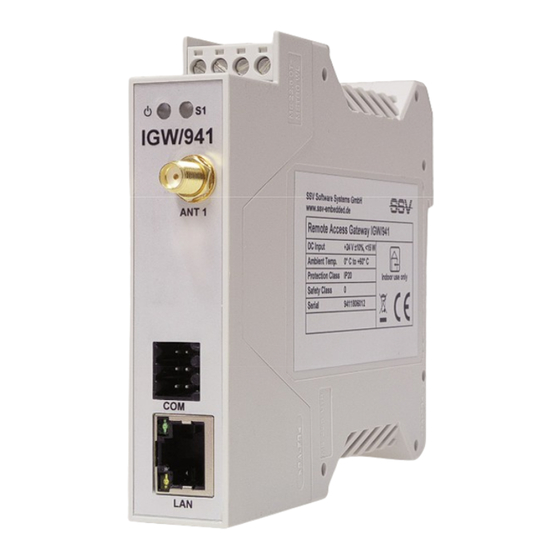

- Page 1 Remote Access Gateway IGW/941 with DNP/9535 Hardware Reference SSV Software Systems GmbH Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.4 Email: sales@ssv-embedded.de Date: 2019-07-03...
-
Page 2: Table Of Contents
Remote Access Gateway IGW/941 – Hardware Reference CONTENT INTRODUCTION ....................... 3 Safety Guidelines ........................3 Conventions ........................... 3 Features and Technical Data ....................4 OVERVIEW ........................5 PINOUTS .......................... 6 Ethernet Interface ........................6 Screw Terminals ........................6 Service Port ..........................7 SIM CARD ......................... -
Page 3: Introduction
Remote Access Gateway IGW/941 – Hardware Reference INTRODUCTION This document describes the hardware components and the necessary cable connections of the Remote Access Gateway IGW/941. Safety Guidelines Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this manual and/or by incorrect handling, we do not assume liability. -
Page 4: Features And Technical Data
Remote Access Gateway IGW/941 – Hardware Reference Features and Technical Data Processor Manufacturer / Type Atmel ATSAM-A5D35 SoC Clock speed 528 MHz Memory 256 MB SDRAM Flash 4 MB NOR memory Storage media 1x internal microSD card holder Interfaces Ethernet... -
Page 5: Overview
Remote Access Gateway IGW/941 – Hardware Reference OVERVIEW Figure 1: Overview Remote Access Gateway IGW/941 D o c u m e n t R e v i s i o n 1 . 4... -
Page 6: Pinouts
Remote Access Gateway IGW/941 – Hardware Reference PINOUTS Ethernet Interface Pin Name Function 10/100 Mbps LAN, TX+ 10/100 Mbps LAN, TX- 10/100 Mbps LAN, RX+ Bob-Smith Termination Bob-Smith Termination 10/100 Mbps LAN, RX- Bob-Smith Termination Bob-Smith Termination Table 2: Pinout Ethernet interface... -
Page 7: Service Port
Pinout service port = Cable bridge To create a serial connection between the IGW/941 and a PC an adapter cable and a null modem cable are necessary. The adapter cable is connected with the PC via the null modem cable like shown in fig. 2. -
Page 8: Sim Card
Remote Access Gateway IGW/941 – Hardware Reference SIM CARD The internal SIM card of the IGW/941 can be changed through the slot on the backside. To remove the SIM card just push it gently with a screw driver until you hear a soft "click". -
Page 9: Helpful Literature
Information in this document is provided ‘as is’ without warranty of any kind. Some names within this document can be trademarks of their respective holders. © 2019 SSV SOFTWARE SYSTEMS GmbH. All rights reserved. D o c u m e n t R e v i s i o n 1 . 4...
