HTML Operation
The USP 507 can be controlled and operated through its Ethernet port, connected
via a LAN or WAN, using a Web browser such as Microsoft
The browser displays the unit's factory-installed Web pages, which provide an
alternative means of viewing and operating the device.
N If the Ethernet connection to the USP 507 is unstable, try turning off the proxy
Accessing the Web Pages
Access the HTML pages as follows:
1.
2.
N If the local system administrators have not changed the value, the factory-
4.
N The browser's Address field should display the address in the following format:
N The following characters are invalid in file names:
5.

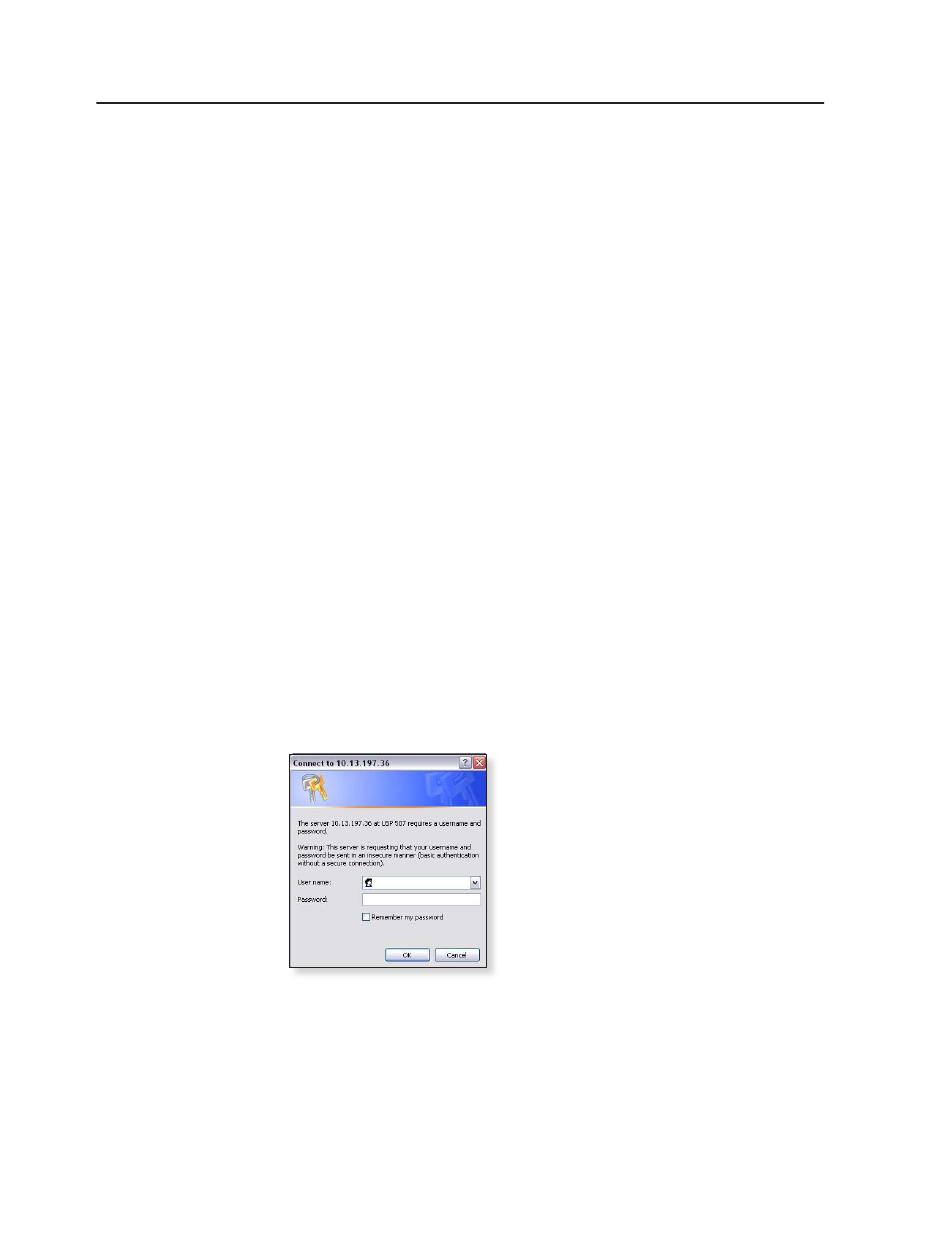

Figure 6–1 — Example of a network password dialog box
6.
N A user name entry is not required.
6-2 USP 507 • HTML Operation
server in the Web browser. To do this in Microsoft Internet Explorer, click Tools
> Internet Options > Connections > LAN Settings, and clear the "Use a
proxy server..." check box. Click OK.
Start the Web browser program.
Click in the browser's Address field and enter your USP 507's IP address.
specified default, 192.168.254.254, is the correct value for this field.
If you want the browser to display a page other than the default page (such as
a custom page that you have uploaded), enter a slash (/) and the name of the
file to open.
xxx.xxx.xxx.xxx/{optional_file_name.html}
+ ~ , @ = ' [ ] { } < > ' " ; : | \ and space.
Press the keyboard's Enter key. The USP 507 checks to see if the unit is
password protected.
If the unit is not password protected, the System Status Web page is
displayed.
If the unit is password protected, the network password dialog box is
displayed (figure 6-1).
In the Password field, enter the appropriate administrator or user password.
If desired, select the check box to have the system input your password the
next time you enter your USP 507's IP address. Click OK.
Some Web pages may not be available or may be viewable only when logged in
as a user.
Internet Explorer .
® ®
