4. When the activation call is in progress, the WWAN LED on the 3G NIM on the back of the 3G
router will be flashing constantly. When the activation call is complete, the WWAN LED will stop
flashing. At this point, the
A CLI U
CCESS THE
To establish a connection to the NetVanta router CONSOLE port, you need the following items:
• VT100 terminal or PC (with VT100 terminal emulation software)
• Straight-through serial cable with a DB-9 (male) connector on one end and the appropriate
interface for your terminal or PC communication port on the other end
1. Connect the DB-9 (male) connector of your serial cable to the CONSOLE port on the rear panel of
the unit and connect the other end of the serial cable to the terminal or PC.
2. Once the unit is powered up, open a VT100 terminal session using the following settings:
9600 baud, 8 data bits, no parity bits, and 1 stop bit. Press <Enter> to activate the AOS CLI.
3. Enter enable at the > prompt.
4. Enter the enable password when prompted. The default password is password.
A CLI U
CCESS THE
To establish a connection to the NetVanta router using a Telnet session, you need the following
items:
• VT100 terminal or PC (with VT100 terminal emulation software)
• Ethernet cross-over cable
1. Connect the router to your PC using the Ethernet port on the front of the unit and an Ethernet
cross-over cable.
2. During bootup, your PC will obtain an IP address from the NetVanta unit's DHCP server. By
default, the DHCP server is enabled
3. Open a Telnet session by going to
4. You will be prompted for a password. The default password is password.
5. Enter enable at the > prompt.
6. Enter the enable password when prompted. The default password is password.
A
CTIVATING THE
To activate the 3G CDMA NIM and cellular interface using the CLI, follow these steps:
config terminal
1. Enter
2. At the (config)# prompt, enter interface cellular 1/1 to access the configuration parameters for
the cellular interface.
(config-cellular 1/1)#
3. At the
connecting to the Sprint network, use the
otasp
network, use the
4. If the activation is successful, you will see the
command output. If you see the
are successful.
5. Enter exit to exit the cellular interface commands and return to the Global Configuration mode.
Quick Start Guide, 64703863G1-13A, September 2009

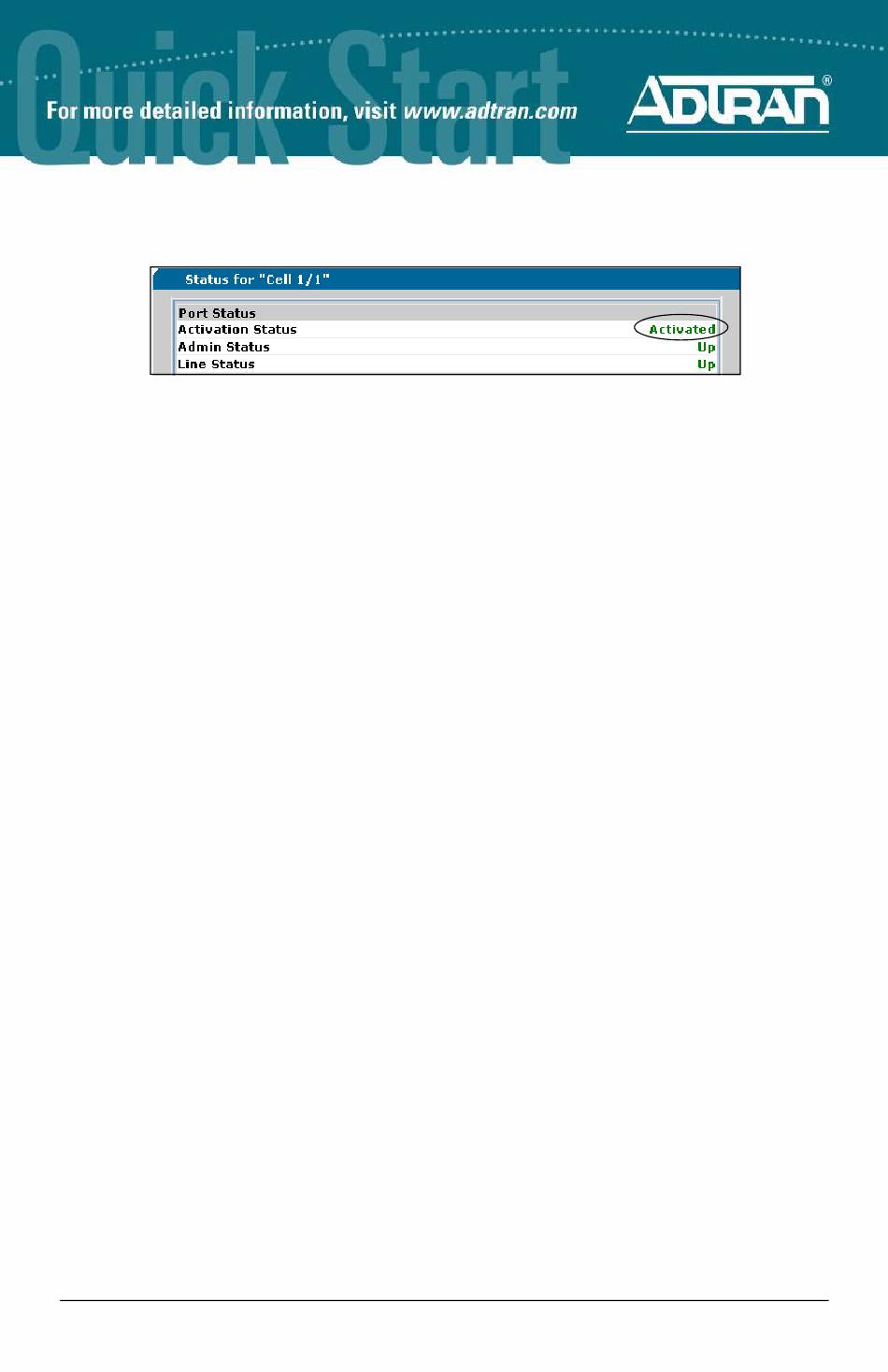

Status
dialogue box will indicate if the activation call was successful.
CONSOLE P
SING THE
T
SING A ELNET
.
Start > Run
3G CDMA NIM U
at the # prompt.
prompt, enter
oma-dm
keyword.
Activation FAILED
ORT
S
ESSION
telnet 10.10.10.1
and entering
CLI
SING THE
cdma activate [oma-dm | otasp]
keyword. If you are connecting to the Verizon
Activation SUCCESSFUL
message, repeat activation Step 3 until you
.
. If you are
message in the
