Caution
The thumbscrews should never be completely removed. Avoid loosening the thumbscrews too far.

Mapping the Inputs and Outputs for Each Device

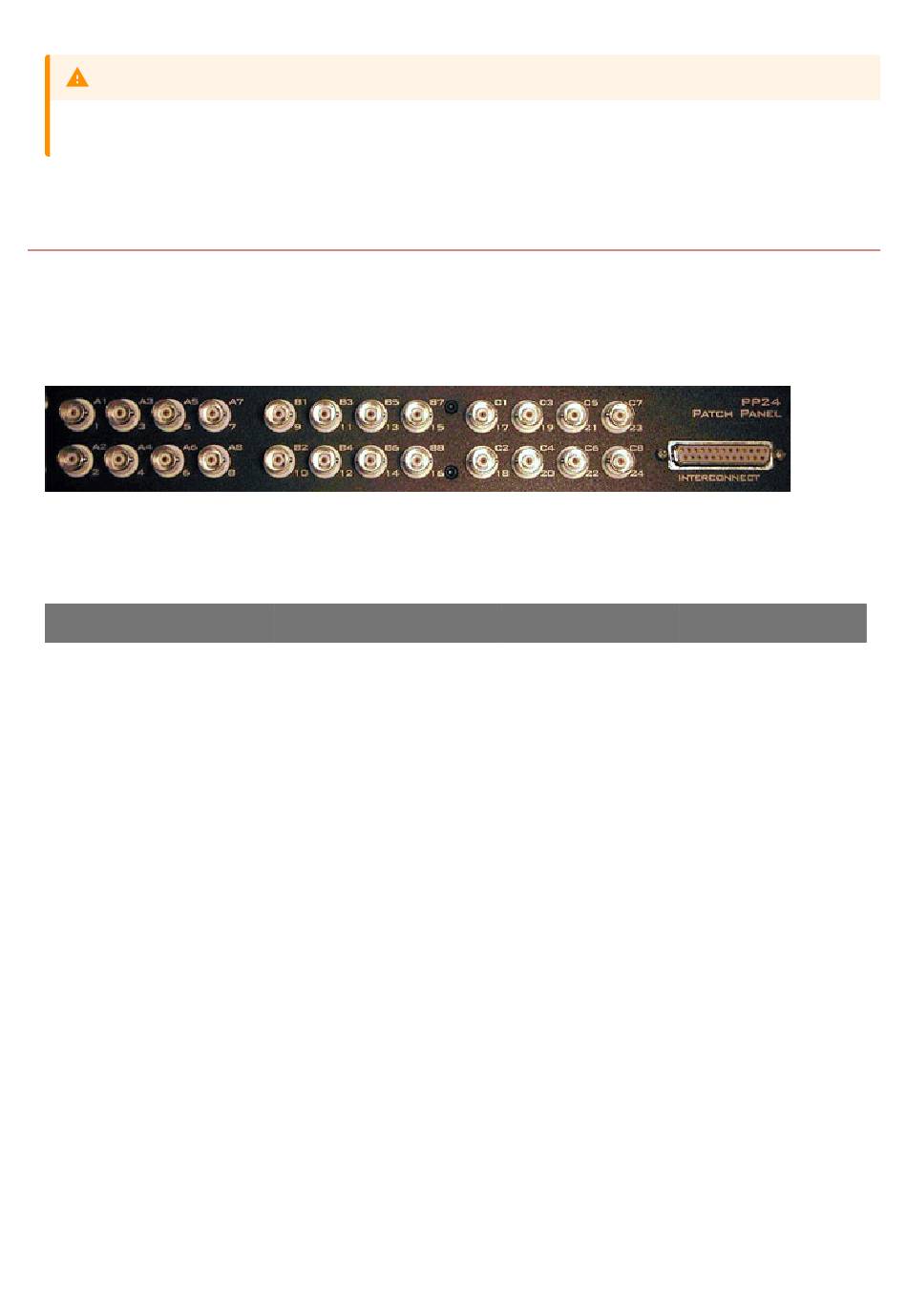

The PP24 consists of 3 banks of BNC connectors, Bank A, B, and C. Each of the banks is
labeled 1-8 within the set and each BNC is also numbered as part of the entire group from 1 -
24.
The following table shows the configuration of the BNC connectors for each I/O connector of
the RX and RZ devices.
Device & Connector
RZ5, RZ5D, RZ5P, RZ6, RZ10x
Digital I/O Connector
RZ2
Digital I/O Connector
RX5, RX6, RX7, RX8
Digital I/O Connector
RX5, RX7
Multi I/O Connector
RX8
Analog I/O Connector
For more information, see the diagrams for the desired device below.
A1 - A8
Digital I/O
Port C Bits 0-7
Digital I/O
Port C Bits 0-7
Bit Addressable Digital I/O
Bits 0-7
Analog Outputs
A2, A4, A6, A8 = Channels 1-4
A1, A3, A5, A7 = Not Used
Analog I/O
Block A Channels 1-8
B1 - B8
Digital I/O
Port A Bits 0-7
Digital I/O
Port A Bits 0-7
Digital I/O
Byte A Bits 0-7
Digital I/O
Byte C Bits 16-23
Analog I/O
Block B Channels 9-16
PP24 Patch Panel | 5
C1 - C8
Digital I/O
Port B Bits 0-7
Digital I/O
Port B Bits 0-7
Digital I/O
Byte B Bits 8-15
Digital I/O
Byte D Bits 24-31
Analog Output
Block C Channels 17-24
