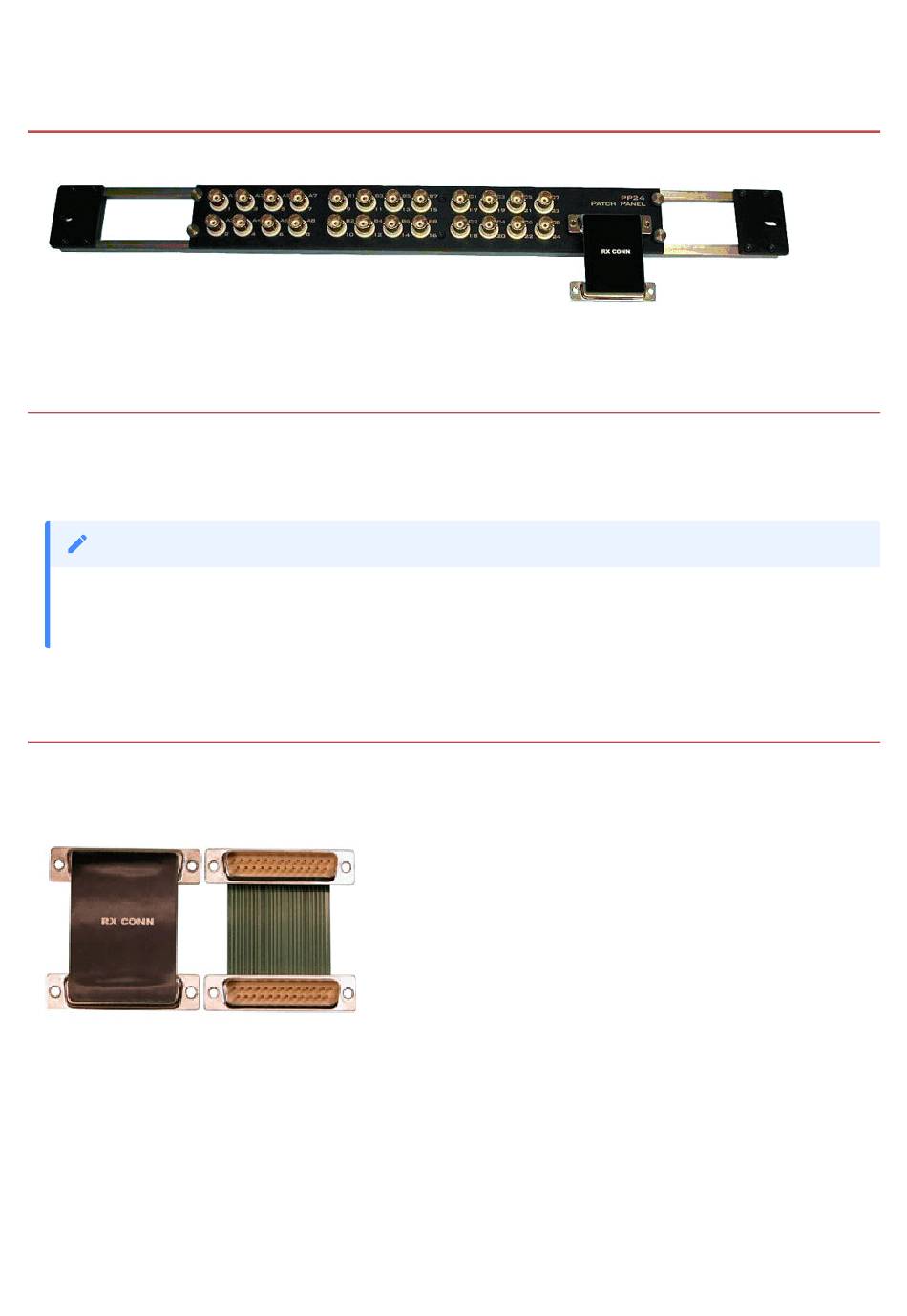

PP24 Patch Panel

Overview

The PP24 Patch Panel provides front panel BNC connections for easy access to the digital and
analog inputs and outputs of the RZ and RX processors.
Note
If using the RP2.1 or RA16BA processors, Power Multiplexer (PM2R), or Power Amplifier (SA8), use the
Patch Panel instead.

Adjustable Positioning

The PP24 comes with either an RX CONN or RZ CONN PCB adapter to match your processor
type.
The PP24 has a 25-pin connector on the front panel. The RX CONN PCB Adapter connects the
PP24 to an RX device positioned either directly above or directly below the PP24. The RZ
CONN connects an RZ processor positioned above the PP24. Loosen the four thumbscrews
(one on each corner of the PP24 front panel) to slide the BNC array into the correct position to
align the connector with the target device.
