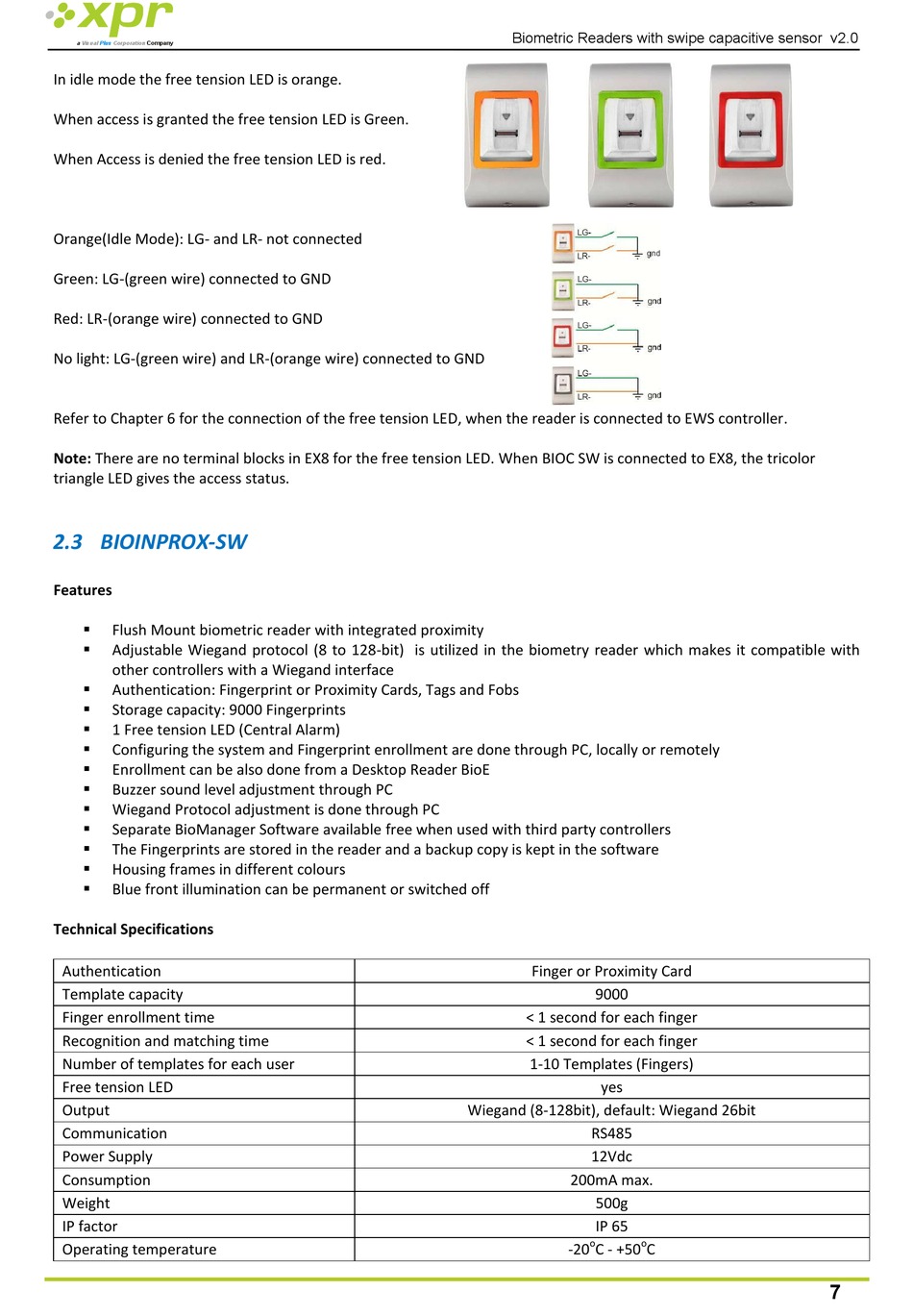

In idle mode the free tension LED is orange.
When access is granted the free tension LED is Green.
When Access is denied the free tension LED is red.
Orange(Idle Mode): LG- and LR- not connected
Green: LG-(green wire) connected to GND
Red: LR-(orange wire) connected to GND
No light: LG-(green wire) and LR-(orange wire) connected to GND
Refer to Chapter 6 for the connection of the free tension LED, when the reader is connected to EWS controller.
Note: There are no terminal blocks in EX8 for the free tension LED. When BIOC SW is connected to EX8, the tricolor
triangle LED gives the access status.

2.3 BIOINPROX-SW

Features

Flush Mount biometric reader with integrated proximity

Adjustable Wiegand protocol (8 to 128-bit) is utilized in the biometry reader which makes it compatible with
other controllers with a Wiegand interface

Authentication: Fingerprint or Proximity Cards, Tags and Fobs

Storage capacity: 9000 Fingerprints

1 Free tension LED (Central Alarm)

Configuring the system and Fingerprint enrollment are done through PC, locally or remotely

Enrollment can be also done from a Desktop Reader BioE

Buzzer sound level adjustment through PC

Wiegand Protocol adjustment is done through PC

Separate BioManager Software available free when used with third party controllers

The Fingerprints are stored in the reader and a backup copy is kept in the software

Housing frames in different colours

Blue front illumination can be permanent or switched off
Technical Specifications
Authentication
Template capacity
Finger enrollment time
Recognition and matching time
Number of templates for each user
Free tension LED
Output
Communication
Power Supply
Consumption
Weight
IP factor
Operating temperature
Biometric Readers with swipe capacitive sensor v2.0
Finger or Proximity Card
9000
< 1 second for each finger
< 1 second for each finger
1-10 Templates (Fingers)
yes
Wiegand (8-128bit), default: Wiegand 26bit
RS485
12Vdc
200mA max.
500g
IP 65
o
-20 C - +50
o
C
