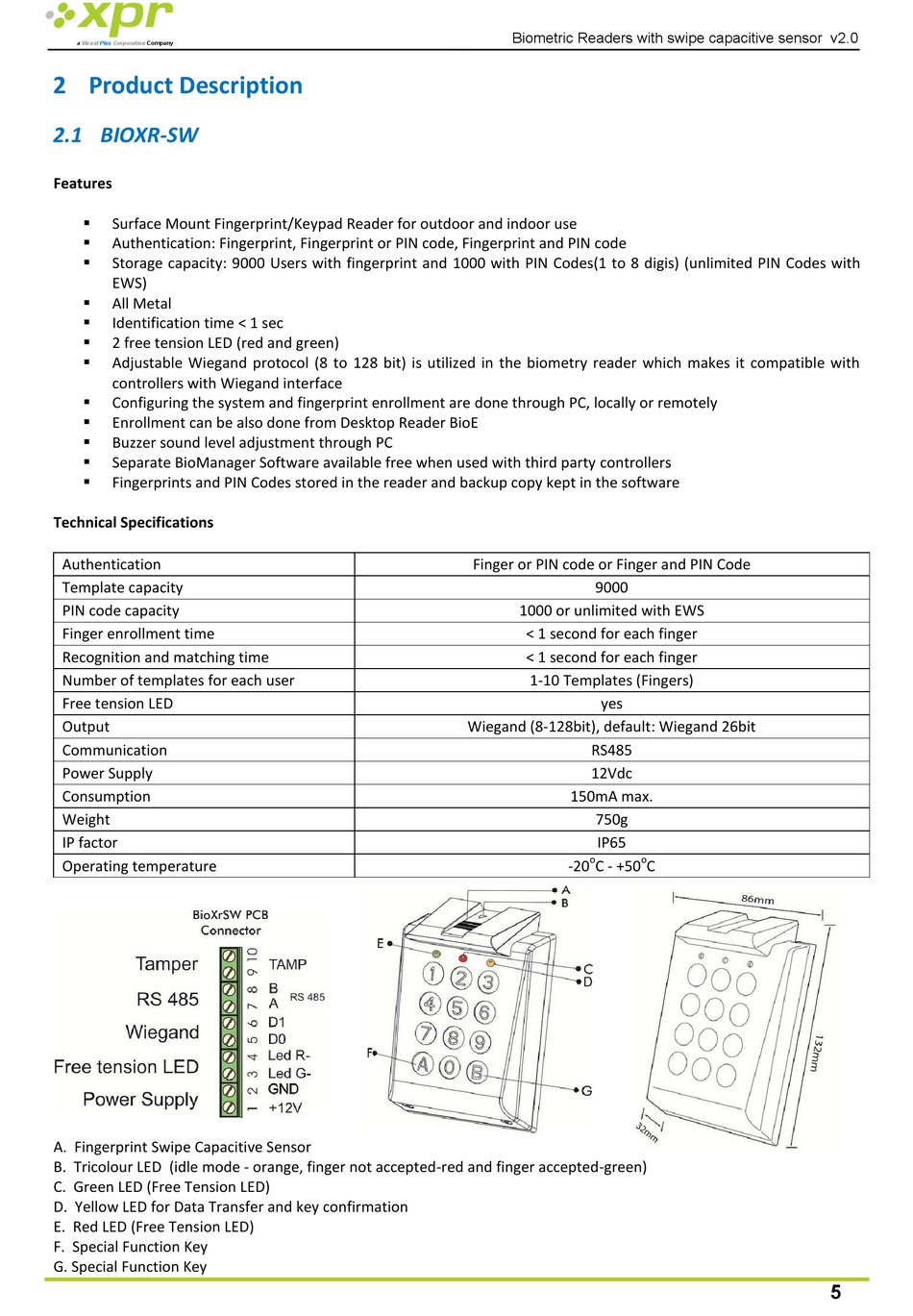

2 Product Description

2.1 BIOXR-SW

Features

Surface Mount Fingerprint/Keypad Reader for outdoor and indoor use

Authentication: Fingerprint, Fingerprint or PIN code, Fingerprint and PIN code

Storage capacity: 9000 Users with fingerprint and 1000 with PIN Codes(1 to 8 digis) (unlimited PIN Codes with
EWS)

All Metal

Identification time < 1 sec

2 free tension LED (red and green)

Adjustable Wiegand protocol (8 to 128 bit) is utilized in the biometry reader which makes it compatible with
controllers with Wiegand interface

Configuring the system and fingerprint enrollment are done through PC, locally or remotely

Enrollment can be also done from Desktop Reader BioE

Buzzer sound level adjustment through PC

Separate BioManager Software available free when used with third party controllers

Fingerprints and PIN Codes stored in the reader and backup copy kept in the software
Technical Specifications
Authentication
Template capacity
PIN code capacity
Finger enrollment time
Recognition and matching time
Number of templates for each user
Free tension LED
Output
Communication
Power Supply
Consumption
Weight
IP factor
Operating temperature
A. Fingerprint Swipe Capacitive Sensor
B. Tricolour LED (idle mode - orange, finger not accepted-red and finger accepted-green)
C. Green LED (Free Tension LED)
D. Yellow LED for Data Transfer and key confirmation
E. Red LED (Free Tension LED)
F. Special Function Key
G. Special Function Key
Biometric Readers with swipe capacitive sensor v2.0
Finger or PIN code or Finger and PIN Code
9000
1000 or unlimited with EWS
< 1 second for each finger
< 1 second for each finger
1-10 Templates (Fingers)
yes
Wiegand (8-128bit), default: Wiegand 26bit
RS485
12Vdc
150mA max.
750g
IP65
o
-20 C - +50
o
C
