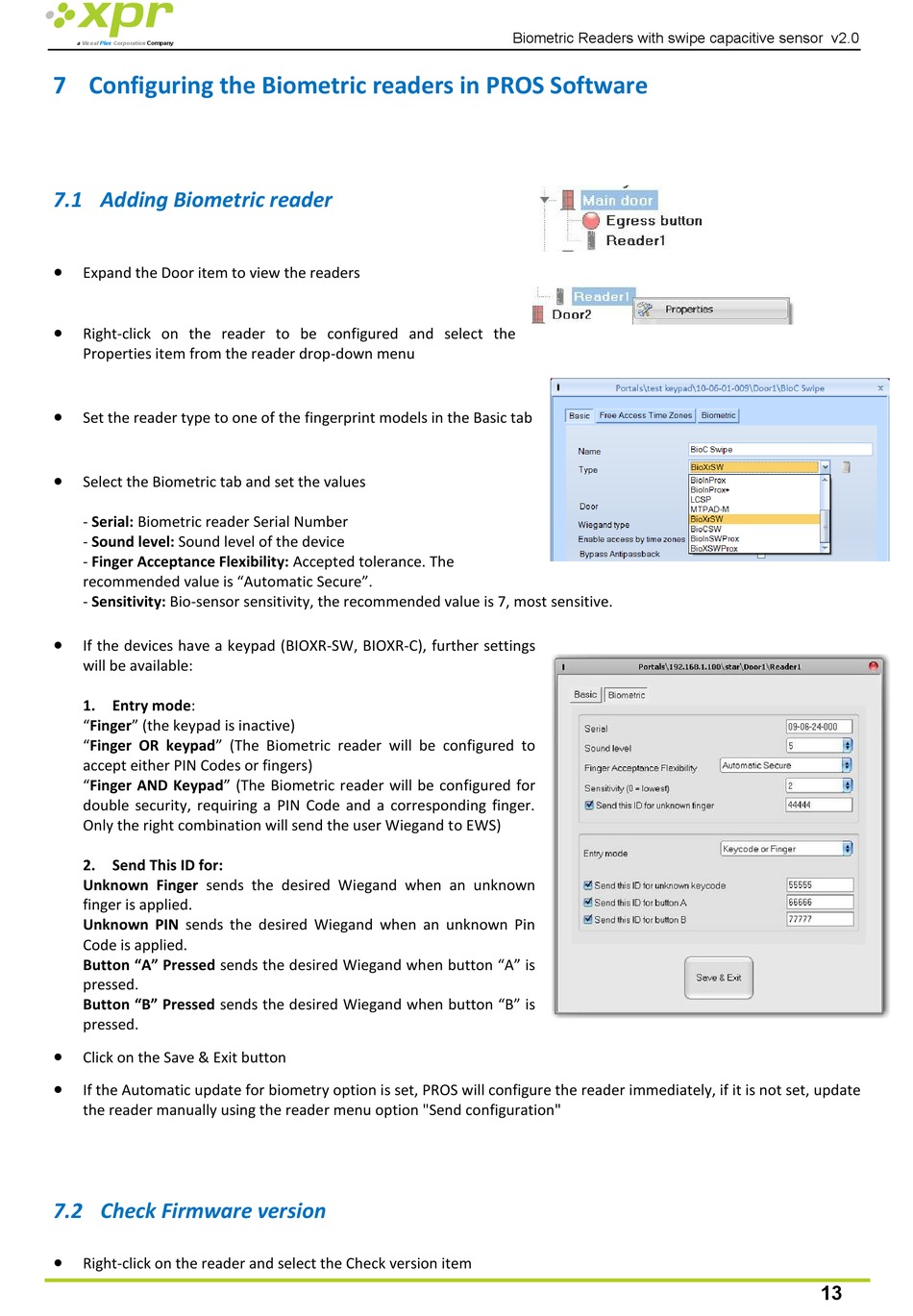

7 Configuring the Biometric readers in PROS Software

7.1 Adding Biometric reader


Expand the Door item to view the readers

Right-click on the reader to be configured and select the
Properties item from the reader drop-down menu

Set the reader type to one of the fingerprint models in the Basic tab

Select the Biometric tab and set the values
- Serial: Biometric reader Serial Number
- Sound level: Sound level of the device
- Finger Acceptance Flexibility: Accepted tolerance. The
recommended value is "Automatic Secure".
- Sensitivity: Bio-sensor sensitivity, the recommended value is 7, most sensitive.

If the devices have a keypad (BIOXR-SW, BIOXR-C), further settings
will be available:
1. Entry mode:
"Finger" (the keypad is inactive)
"Finger OR keypad" (The Biometric reader will be configured to
accept either PIN Codes or fingers)
"Finger AND Keypad" (The Biometric reader will be configured for
double security, requiring a PIN Code and a corresponding finger.
Only the right combination will send the user Wiegand to EWS)
2. Send This ID for:
Unknown Finger sends the desired Wiegand when an unknown
finger is applied.
Unknown PIN sends the desired Wiegand when an unknown Pin
Code is applied.
Button "A" Pressed sends the desired Wiegand when button "A" is
pressed.
Button "B" Pressed sends the desired Wiegand when button "B" is
pressed.

Click on the Save & Exit button

If the Automatic update for biometry option is set, PROS will configure the reader immediately, if it is not set, update
the reader manually using the reader menu option "Send configuration"

7.2 Check Firmware version


Right-click on the reader and select the Check version item
Biometric Readers with swipe capacitive sensor v2.0
