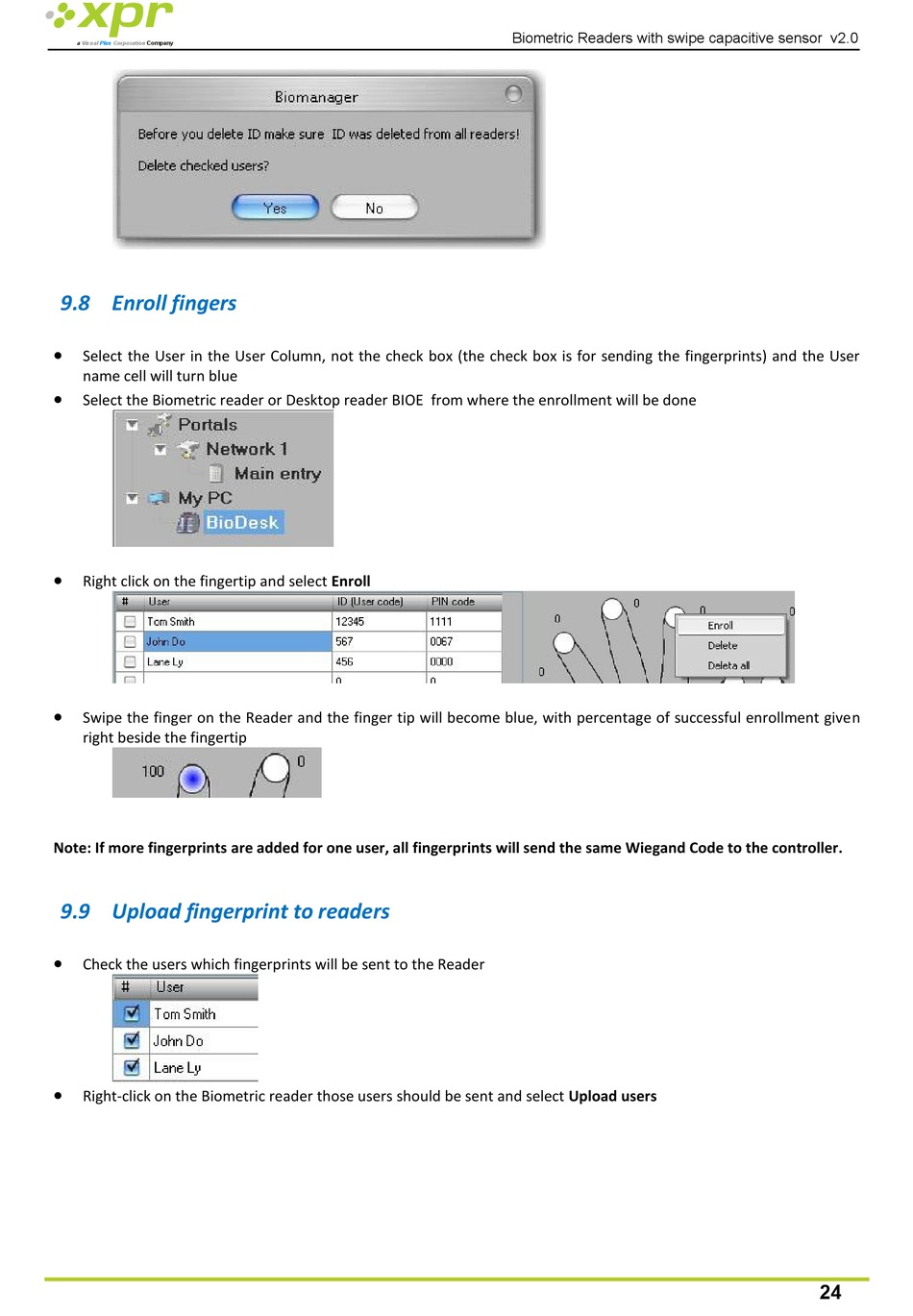

9.8 Enroll fingers


Select the User in the User Column, not the check box (the check box is for sending the fingerprints) and the User
name cell will turn blue

Select the Biometric reader or Desktop reader BIOE from where the enrollment will be done

Right click on the fingertip and select Enroll

Swipe the finger on the Reader and the finger tip will become blue, with percentage of successful enrollment given
right beside the fingertip
Note: If more fingerprints are added for one user, all fingerprints will send the same Wiegand Code to the controller.

9.9 Upload fingerprint to readers


Check the users which fingerprints will be sent to the Reader

Right-click on the Biometric reader those users should be sent and select Upload users
Biometric Readers with swipe capacitive sensor v2.0
