It is recommended to use the index or middle finger. If you choose another finger, the recognition rate may be decreased
because it tends to be more difficult to place the finger in the center of the sensor area.

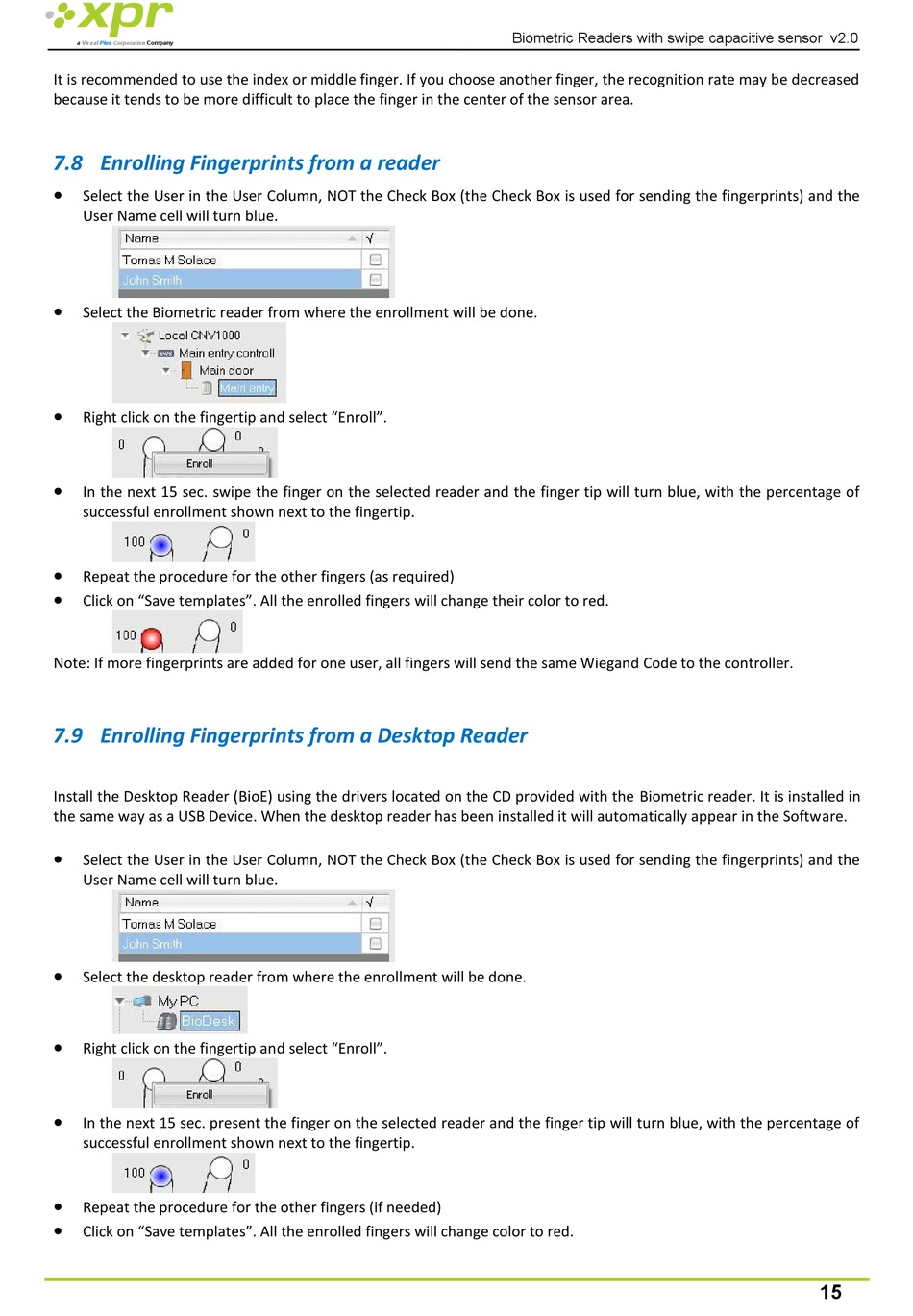

7.8 Enrolling Fingerprints from a reader


Select the User in the User Column, NOT the Check Box (the Check Box is used for sending the fingerprints) and the
User Name cell will turn blue.

Select the Biometric reader from where the enrollment will be done.

Right click on the fingertip and select "Enroll".

In the next 15 sec. swipe the finger on the selected reader and the finger tip will turn blue, with the percentage of
successful enrollment shown next to the fingertip.

Repeat the procedure for the other fingers (as required)

Click on "Save templates". All the enrolled fingers will change their color to red.
Note: If more fingerprints are added for one user, all fingers will send the same Wiegand Code to the controller.

7.9 Enrolling Fingerprints from a Desktop Reader

Install the Desktop Reader (BioE) using the drivers located on the CD provided with the Biometric reader. It is installed in
the same way as a USB Device. When the desktop reader has been installed it will automatically appear in the Software.

Select the User in the User Column, NOT the Check Box (the Check Box is used for sending the fingerprints) and the
User Name cell will turn blue.

Select the desktop reader from where the enrollment will be done.

Right click on the fingertip and select "Enroll".

In the next 15 sec. present the finger on the selected reader and the finger tip will turn blue, with the percentage of
successful enrollment shown next to the fingertip.

Repeat the procedure for the other fingers (if needed)

Click on "Save templates". All the enrolled fingers will change color to red.
