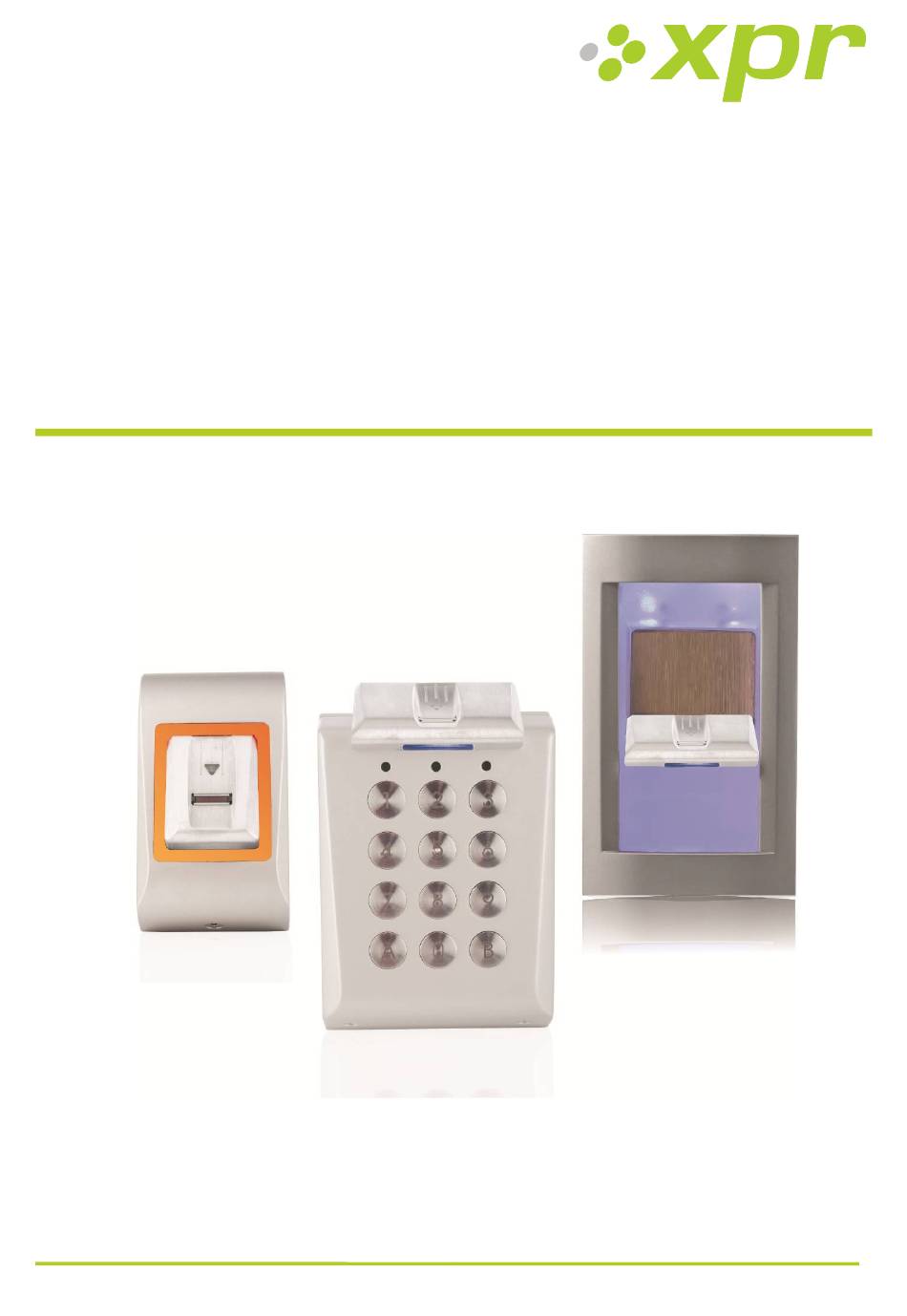

- Page 1 Company Visual Plus Corporation Biometric Readers with swipe capacitive sensor BIOXR-SW, BIOC-SW, BIOINPROX-SW User Manual Ver 2.0 www.visual-plus.com...
-
Page 2: Table Of Contents
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation Biometric Readers with swipe capacitive sensor Ver2.0 Contents Product concept ............................4 Product Description ..........................5 BIOXR-SW ..............................5 BIOC-SW ..............................6 BIOINPROX-SW ............................7 BIOE ................................. 8 Enrollment .............................. - Page 3 Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation Configuring the Biometric Readers in BioManager ..............20 Add Reader ............................20 Edit Reader ............................22 Delete Reader ............................22 Calibrate sensor ............................ 23 Add user ..............................23 Edit user ..............................23 Delete users ............................
-
Page 4: Product Concept
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 1 Product concept BIOC-SW, BIOXR-SW and BIOINPROX-SW are Biometric readers with adjustable Wiegand Output and can be connected to most Access Controllers with Wiegand interface. BIOE is a desktop USB biometric reader used for fingerprint enrollment. ... -
Page 5: Product Description

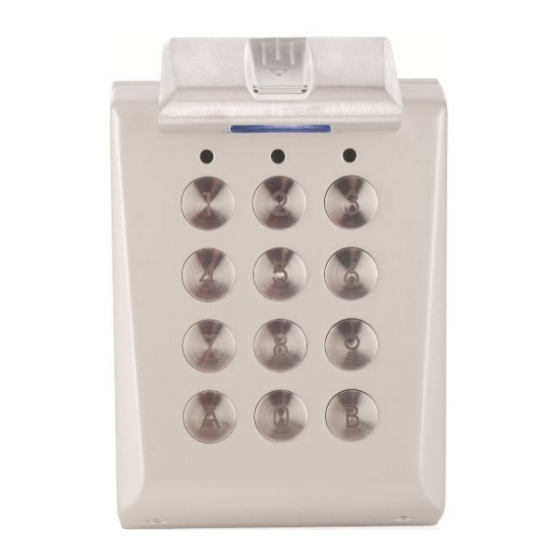

Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 2 Product Description 2.1 BIOXR-SW Features Surface Mount Fingerprint/Keypad Reader for outdoor and indoor use Authentication: Fingerprint, Fingerprint or PIN code, Fingerprint and PIN code Storage capacity: 9000 Users with fingerprint and 1000 with PIN Codes(1 to 8 digis) (unlimited PIN Codes with EWS) ... -
Page 6: Bioc-Sw
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 2.2 BIOC-SW Features Surface mount biometric reader with swipe capacitive sensor Adjustable Wiegand protocol (8 to 128-bit) is utilized in the biometry reader which makes it compatible with other controllers with a Wiegand interface ... -
Page 7: Bioinprox-Sw
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation In idle mode the free tension LED is orange. When access is granted the free tension LED is Green. When Access is denied the free tension LED is red. Orange(Idle Mode): LG- and LR- not connected Green: LG-(green wire) connected to GND Red: LR-(orange wire) connected to GND... -
Page 8: Bioe
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation A. Tricolour LED (idle mode - orange, finger not accepted-red and finger accepted-green) B. Fingerprint Swipe Capacitive Sensor C. Proximity Antenna 2.4 BIOE Features Desktop Biometric reader USB powered ... -
Page 9: Enrollment
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 3 Enrollment 4 Authentication There are 5 user authentication modes that can be assigned by the software: Only “Finger” (BIOXR-SW, BIOC-SW), “Finger OR Code”, “Finger AND Code” (BIOXR-SW), “Finger AND Card”, “Finger OR Card” (BIOIN PROX-SW) The tricolour LED has three colour statuses;... -
Page 10: Mounting
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 5 Mounting 5.1 BIOC-SW 5.2 BIOXR-SW 5.3 BIOIN PROX-SW Mounting Position... -
Page 11: Connecting Biometric Readers To Ews Controller
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 6 Connecting Biometric readers to EWS Controller The biometric readers are not able to work alone. They have to be connected to an access controller with Wiegand input. The Biometric readers can be connected to virtually any controller that conforms to Wiegand format standards (standard Wiegand 26bit or self-defined Wiegand). -
Page 12: Biometric Readers In Network With Ews Controllers
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 6.1 Biometric readers in network with EWS controllers The Biometric readers are connected through RS485 bus. The same RS485 bus that the EWS controllers are connected to. Maximum units in one network (EWS + Biometric readers) is 32. -
Page 13: Configuring The Biometric Readers In Pros Software
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 7 Configuring the Biometric readers in PROS Software 7.1 Adding Biometric reader Expand the Door item to view the readers Right-click on the reader to be configured and select the Properties item from the reader drop-down menu ... -
Page 14: Firmware Update
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 7.3 Firmware Update Right-click on the reader and select Firmware update menu On the Firmware update window, click on the Browse button. The default location of the firmware files installed with PROS is in the PROS folder under "Firmware"... -
Page 15: Enrolling Fingerprints From A Reader
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation It is recommended to use the index or middle finger. If you choose another finger, the recognition rate may be decreased because it tends to be more difficult to place the finger in the center of the sensor area. 7.8 Enrolling Fingerprints from a reader ... -
Page 16: Uploading The Fingerprints To The Biometric Readers
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation Note: If more fingerprints are added for one user, all fingerprints will send the same Wiegand Code to the controller. 7.10 Uploading the fingerprints to the Biometric readers Select the Users whose fingers templates will be sent to the reader, by clicking on the checkbox of the user ... -
Page 17: Complex Upload
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 7.15 Complex upload Complex user upload is used to send multiple user selections to many readers. Click on Upload table in the main menu Use the mouse click to select the combination you need or use right-click to check or clear an entire row or column ... -
Page 18: Connecting Biometric Readers To Third Party Controller
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation Connecting Biometric Readers to Third Party Controller Connect the lines D0, D1, Gnd and +12V to the third party controller. Connect the RS485 Line (A, B) to the converter. Connect the converter in the PC. Note: The Biometric reader must be powered from the controller or make common ground for the controller and the Biometric reader. -
Page 19: Converters Pin Description
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 8.1 Converters PIN description CNV100 Converter RS485 to RS232 Does not require installation CNV200 Converter RS485 to USB Requires installation as USB serial device (refer to CNV200 Manual) The Drivers are located on the CD CNV300 Converter RS485 to TCP/IP... -
Page 20: Configuring The Biometric Readers In Biomanager
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 9 Configuring the Biometric Readers in BioManager BioManager is software for fingerprint management of XPR Biometric readers, when used with third party access controllers. Main functions: - Fingerprint Enrollment It can be done by ANY Biometric reader in the network or by Desktop (USB) Biometric reader. - Page 21 Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation Click on Save and the reader icon appears under the selected portal Right-click on reader and select Version info If reader is online, new line is added on top of the event table If reader is not online, following line is added on top of the event table ...
-
Page 22: Edit Reader
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 9.2 Edit Reader Right-click on the reader and select Properties Edit reader properties and click Save button Right click on the reader and select Upload configuration ... -
Page 23: Calibrate Sensor
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 9.4 Calibrate sensor Right-click on the reader and select Calibrate See events panel to check Calibration flow It is recommended to do sensor calibration once after reader is mounted. Clean the fingerprint sensor before calibration. 9.5 Add user ... -
Page 24: Enroll Fingers
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 9.8 Enroll fingers Select the User in the User Column, not the check box (the check box is for sending the fingerprints) and the User name cell will turn blue ... -
Page 25: Delete Fingerprints
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation As each user is being sent, the checkbox will become unchecked indicating that the user is successfully sent. In the same time the orange LED of the Biometric reader blinks Note: Average time for transferring one finger template is 0,6 sec. -
Page 26: Complex User Upload
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 9.13 Complex user upload Complex user upload is used to sent multiply user selection to more readers. Click on Upload table at main menu Use mouse click to select the combination you need or use right-click to check or clear entire row or column ... - Page 27 Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation Click on Save button Note: Wiegand settings are out of scope for common end user. Please ask your installer to set the parameters and do not change it later. For more information please refer to BioManager User Manual.
-
Page 28: Wiegand Protocol Description
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 10 Wiegand protocol description The data is sent over the lines DATA 0 for the logic “0” and DATA 1 for the logic “1”. Both lines use inverted logic, meaning that a pulse low on DATA 0 indicates a “0”... -
Page 29: Connecting The Biometric Readers With Ex8 Controller
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 11 Connecting the Biometric Readers with EX8 controller When connected with EX8 controller, the Biometric Readers are becoming Standalone Biometric readers. The Biometric Reader becomes known to the EX8 controller as soon as they are linked. No further configuration is required. -
Page 30: Safety Precautions
Biometric Readers with swipe capacitive sensor v2.0 Company Visual Plus Corporation 12 Safety precautions Do not install the device in a place subject to direct sun light, humidity or dust. When the device is mounted outside, use the protective plastic cover (ref.: ATP). Do not install the device and cabling close to a source of strong electro-magnetic fields like radio-transmitting antenna.
