LINSHANG LS162A User Manual

LS162A is able to simultaneously measure and display UV, IR rejection value and
visible light transmission value. This meter is self-contained light sources and
self-calibration. No manual adjustment is needed. The users only need power on the
meter and put the testing sample in the opening.
on the display.
I: LS162A Parameter
1. Size: 120mm *75mm *25mm(L*W*H)
2. Weigh: 165g
3. Thickness of testing sample: < 8mm
4. Resolution: 0.1%
5. Accuracy: ±2%
6. VL Peak wavelength: 550nm
7. VL Peak wavelength: 365nm
8. IR Peak wavelength: 1400nm
9. Power Supply: 4*AAA alkaline battery
II: Operation
1. Power on:
When LS162A is off, press the "ON/Hold" key.
2. Power off:
Press "ON/Hold" key and hold for longer than 3 seconds, LS162A will be powered off.
3. Auto off:
No key is pressed in 3 minutes, and then LS162A will power off automatically.
4. Manual hold:
If "ON/Hold" key is short pressed during measure status, transmission value
will hold on the LCD, "HOLD" symbol is displayed on the LCD. Press the "ON/Hold"
key again will release the "Hold" mode.

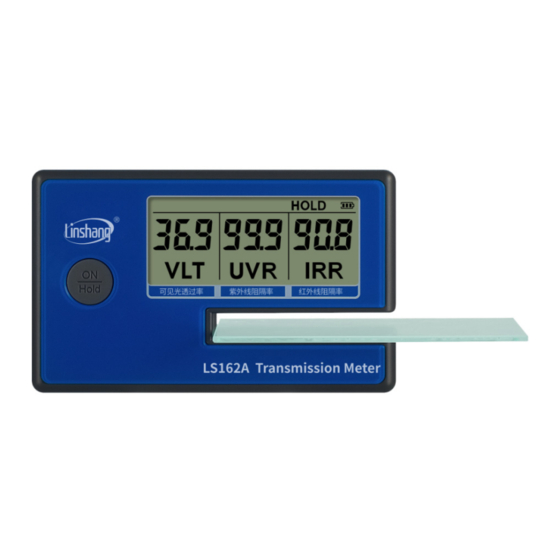

5. Measurement
When UVR(Ultraviolet Rejection) and IRR(Infrared Rejection) display 0.0 and
VLT(Visible light transmission) display 100, insert the testing sample in the "OPENING",
VLT, UVR and IRR value will display simultaneously.
III: Feature
1. UV rejection meter, IR rejection meter, Light Transmittance Meter, Three function in
ONE device.
2. Small size, portable product for transmission value measurement.
3. Test any sample thickness up to 8mm.
IV: Notes
1. When battery symbol is empty and flash, please replace the battery.
LS162A Transmission Meter
User Manual V3.1
Shenzhen Linshang Technology Co., Ltd
