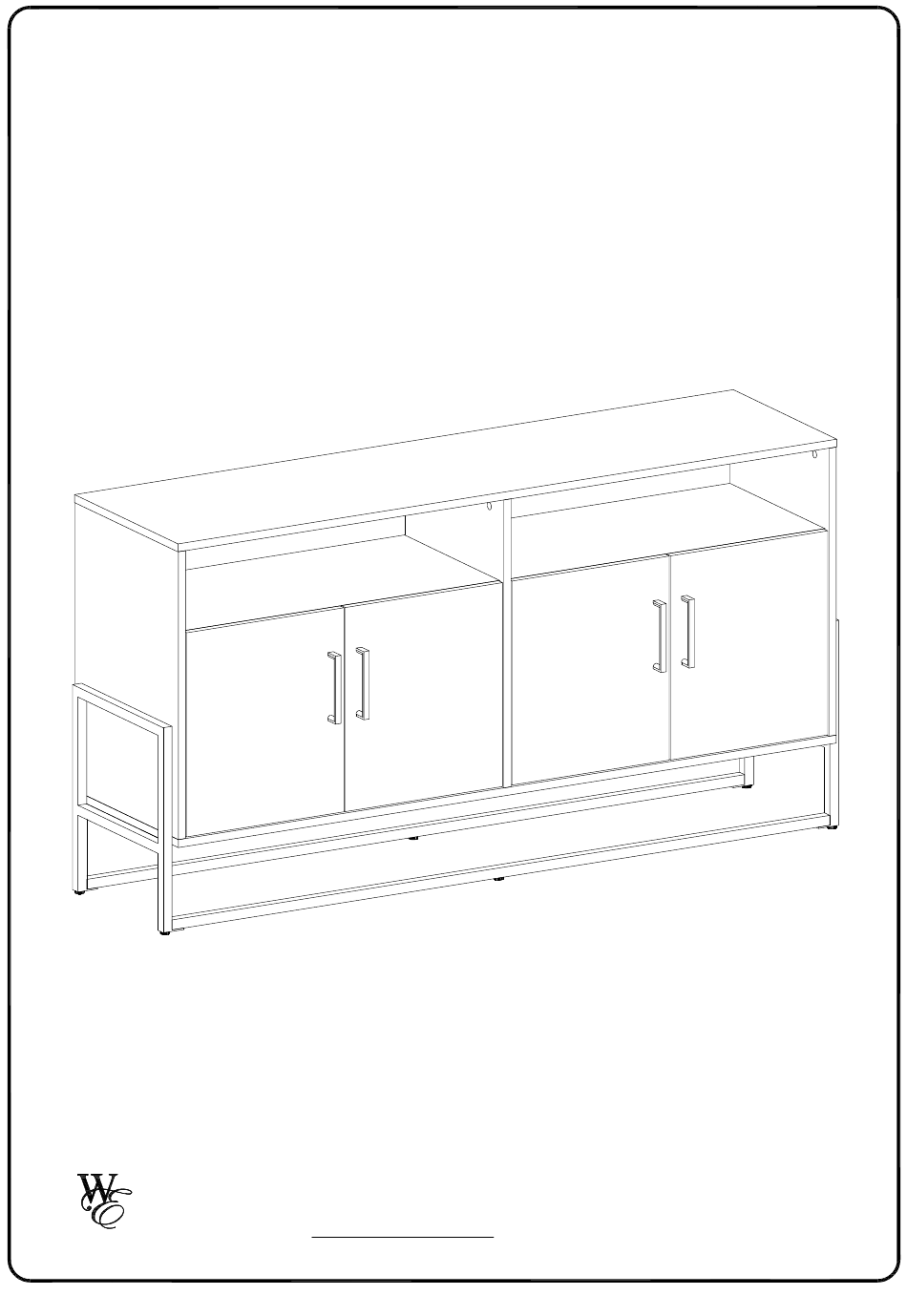

- Page 1 Item # : W58ASP Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Walker Edison Revised 13/12/2018 ® © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 2: General Assembly Guidelines
Concealed hinges are three-way adjustable. Horizontal In-and-Out Vertical by screw adjustment Via slots in the mounting by loosening the hinge-arm mounting screw or via cam plate or via cam adjustment adjustment Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 3: Parts List
Parts List © Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 4: Hardware List
Glue tube Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. © Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Step 1 Use screwdriver to secure cam bolts (B) into part (1). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Step 2 Insert wooden dowel (A) to part (2,7). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 7 Step 3 Use screwdriver to secure cam bolts((B) ,wooden dowel (A) to part (4,5,6). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 8 Step 4 Slide down part (2) to part(5) as per diagram. Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 9 Step 5 Use hex key (H) to insert screw (G) into part (2) and attach to part (7). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 10 Step 6 Connect part (2,7) to part (6) using cam locks (C). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.10...
- Page 11 Step 7 Connect part (2,7) to part (4) using cam locks (C). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.11...
- Page 12 Step 8 Slide down part (14) into grooves as per diagram. © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.12...
- Page 13 Step 9 Use hex key (H) to secure screw (G) into part(3) and attach to part (4,5,6). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.13...
- Page 14 Step 10 Connect part (1) to frame using cam locks (C). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.14...
- Page 15 Step 11 Insert cam lock (C) into part (7). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.15 ©...
- Page 16 Step 12 Use hex key( H) to secure bolt (E) into part (8,9). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.16 ©...
- Page 17 Step 13 Use hex key( H) to secure bolt (E) into part (8,9,10). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.17 ©...
- Page 18 Step 14 Turn the body upside down and place metal frame onto base panel (3). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.18 ©...
- Page 19 Step 15 Use hex key (H) to secure bolt (F) into part(4) Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.19 ©...
- Page 20 Step 16 Use hex key (H) to secure bolt (F) into part(6). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.20 ©...
- Page 21 Step 17 Attach the plastic wedges (Q) by using the screws (P) as shown in the diagram. Place sticker (D) into back panel. back panel. Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.21 ©...
- Page 22 Step 18 Place sticker (D) as per diagram. Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.22 ©...
- Page 23 Step 19 Insert shelf support pin (J) into side panel (4,5,6) as per diagram. Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.23 ©...
- Page 24 Step 20 Insert shelf (12) as shown in diagram. Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.24 ©...
- Page 25 Step 21 Use screwdriver to secure bolt (L) and handle (K) as per diagram. Insert screw (M) to door hinge (N) and attach to part (13,15). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.25...
- Page 26 Step 22 Insert screw (M) to door hinge(N) and attach to parts (4,5). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.26...
- Page 27 Step 23 Insert screw (M) to door hinge (N) and attach to parts (5,6). © Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. P.27...
- Page 28 Step 24 Use screwdriver to secure plastic strap (T) with screw (R) to back panel. P.28 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 29 Wall Use screwdriver to secure screw (S) , plastic strap (T), nut (U) into wall. P.29 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 30 Step 26 Facilitate adjustable feet to the body when encounter the ground issue . P.30 © Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 31: Final Assembly
Step 27 Final Assembly P.31 © Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
