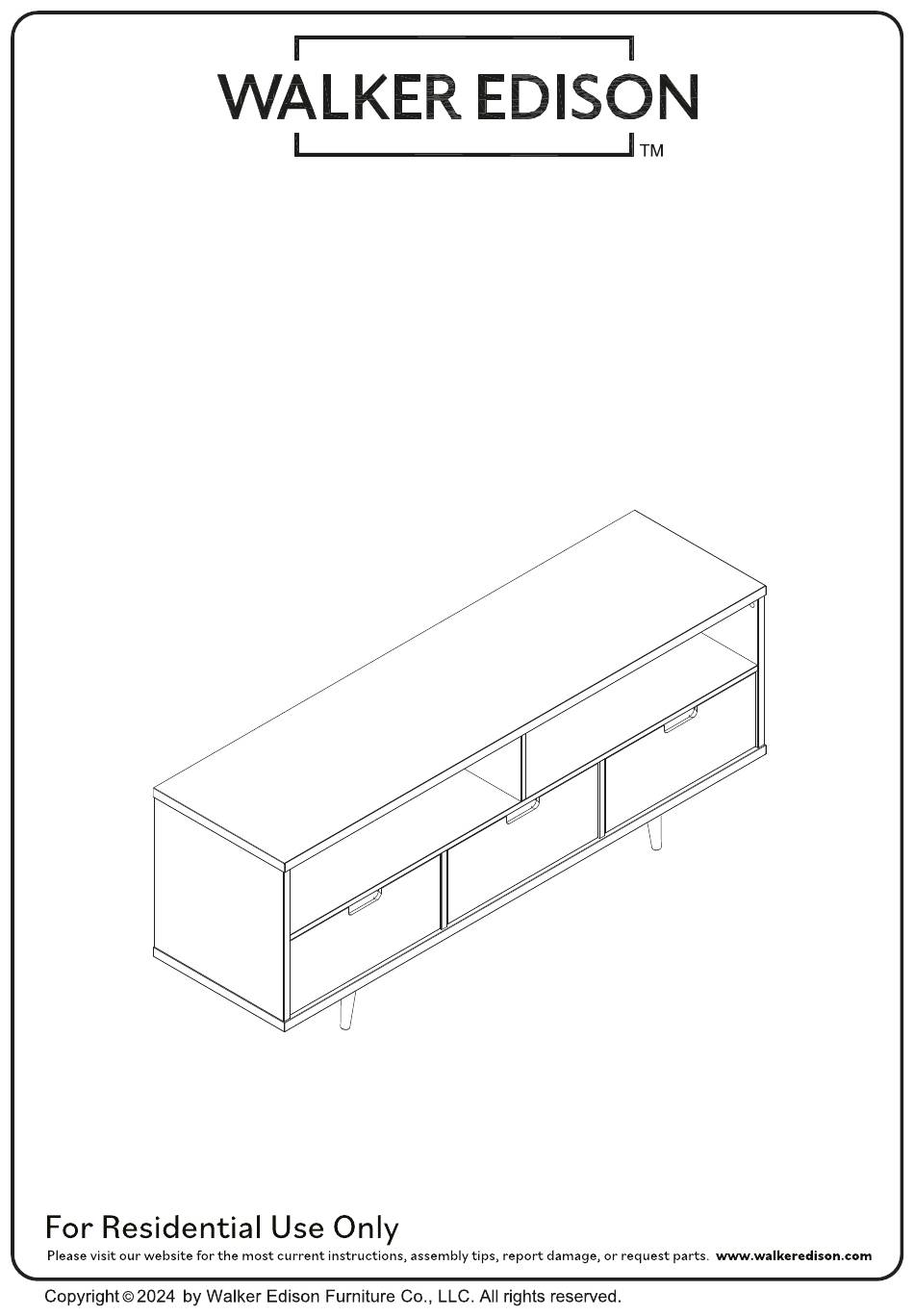

Page 3
Top Panel Shelf Base Center Upper Panel Center Bottom Panel Left Side Panel Right Side Panel Feet Upper Back Panel W58IV3DCA ST2505-003 29/2025 Back Panel 12/2024 V1 Drawer Front Drawer Left Side Drawer Right Side Drawer Bottom Drawer Back Drawer Slide...
Page 5
Step 1 Let's start! Insert Wooden dowel (D) into Shelf (2), Center upper panel (4), Center bottom panel (5), Left side panel (6), Right side panel (7), Feet (8), Drawer left side (12) and Drawer right side (13). 3: Align the dowel with corresponding 1: Select the appropriate size 2: Insert into drilled hole and press piece and press together until secure.
Page 6
Step 2 lnsert Wooden dowel (F) into Drawer slide (17). Attach the Drawer Slide (17) to Left side panel (6) and Right side panel (7) using Screw (I) and a Phillips head screwdriver.
Page 7
Step 3 lnsert Wooden dowel (F) into Drawer slide (17). Then attach the Drawer Slide (17) to Center bottom panel (5) using Screw (I) and a Phillips head screwdriver. Do this on both sides.
Page 8
Step 4 Join Center upper panel (4) and Shelf (2) using Screw (G) and a Phillips head screwdriver...
Page 9
Step 5 Attach Center bottom panel (5) to Shelf (2) using Screw (C) and a Phillips head screwdriver...
Page 10
Step 6 Secure Left side panel (6) and Right side panel (7) to Shelf (2) using Screw (C) and a Phillips head screwdriver...
Page 11
Step 7 Attach Cam Bolt (A) into the holes in Top panel (1).
Page 12
Step 8 Attach Feet (8) to Base (3) using Screw (C) and a Phillips head screwdriver. Also use screw (I) to fix Drawer limiter ( J) into Base (3).
Page 13
Step 9 Assemble Top panel (1) and Base (3) into Left side panel (6) and Right side panel (7) using Screw (G) and tightening Cam bolt (B) with a phillips head screwdriver. 1: Insert Cam Bolt into bolt holes on the flat side.
Page 14
Step 10 Use Metal Plate (H) and Screw (I) to assemble the Back panels (9,10) with a Phillips head screwdriver.
Page 15
Step 11 Now we willl assemble the drawers. Attach Drawer left side (12) and Drawer right side (13) to Drawer front (11) using Screw (C) and a phillips head screwdriver.
Page 16
Step 12 Slide Drawer bottom (14) on grooves on Drawer sides (12,13) fitting in Drawer front (11). Then, Secure Drawer back (15) to Drawer Left side (12) and Drawer right side (13) using Screw (C) and a Phillips head screwdriver.
Page 17
Step 13 To finish this up, let’s secure your TV Stand to the wall! Attach the Wall anchor (N) to your TV Stand using Washer (L), Screw (I) and a Phillips head screwdriver.
Page 18
Step 14 Insert the Plastic Bush (M) into the wall. Then, secure the Wall anchor (N) to the wall using a Washer (L), Screw (K) and a Phillips head screwdriver.
Page 19
You did it! Enjoy your new TV Stand! 45kg 100lbs 4,5kg 10lbs 23kg 50lbs Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with...
Page 21
Sloane 58" 3 Tiroirs en bois massif TV Stand Sloane 58" 3 Cajones de madera maciza TV Stand Revised 01/2025-V6...
Page 23
Liste de pièces / Lista de piezas Panneau Supérieur Panel Superior Étagère Prateleira Panneau Inférieur Panel Inferior Panneau Centrale Supérieur Panel Central Superior Panneau Centrale Inférieur Panel Central Inferior Panneau Gauche Panel Izquierdo Panneau Droit Panel Derecho Pied Panneau Supérieur Arriére Panel Superior Trasero W58IV3DCA ST2505-003...
Page 24
Partie Taille Quantité Parte Tamaño Nombre Cantidad Goujoun de Assemblage 5,5x28mm Conector Boitier de Assemblage 14x14mm Traba del Conector 3,5x30mm Tornillo Cheville 8x30mm Espiga Cheville 8x20mm Espiga 4x40mm Tornillo Plaque Placa 4x16mm Tornillo Limiteur de Tiroir Limitador del cajón 3,5x30mm Tornillo Rondelle Arandela...
Page 25
Étape / Paso 1 (FR) Commençons! Inserez la Cheville (D) dansl'Étagère (2), Panneau Supérieur Central (4), Panneau Inférieur Central (5), Panneau Latéral Gauche (6), Panneau Latéral Droit (7), Pieds (8), Côté Gauche du Tiroir (12) et Côté Droit du Tiroir (13). (ESP) Empecemos! Inserte las Espigas (D) en el Estante (2), Panel Superior Central (4), Panel Inferior Central (5), Panel Lateral Izquierdo (6), Panel Lateral Derecho (7), Pies(8), Lado Izquierdo del...
Page 26
Étape / Paso 2 (FR) Insérez la Cheville (F) dans la Glissière (17). Fixez la Glissière (17) dans le Panneau Gauche (6) et le Panneau Droit (7) à l'aide de la Vis (I) et d'un tournevis Phillips. (ESP) Inserte la Espiga (F) en la Corredera (17). Fije la Corredera (17) al Panel Izquierdo (6) y al Panel Derecho (7) usando el Tornillo (I) y un destornillador Phillips.
Page 27
Étape / Paso 4 (FR) Fixez l'Étagère (2) dans les trous du Panneau Supérieur Central (4) à l'aide de la Vis (G) et d'un tournevis Phillips. (ESP) Coloque el Estante (2) en los agujeros del Panel Superior Central (4) usando el Tornillo (G) y un destornillador Phillips.
Page 28
Étape / Paso 6 (FR) Fixez le Panneau Gauche (6) et le Panneau Droit (7) dans le Étagère (2) à l'aide de la Vis (C) et d'un tournevis Phillips. (ESP) Coloque el Panel Izquierdo (6) y el Panel Derecho (7) en la Estante (2) usando el Tornillo (C) y un destornillador Phillips.
Page 29
Étape / Paso 8 (FR) Fixez les Pieds (8) à le Panneau Inférieur (3) à l'aide de la Vis (C) et d'un tournevis Phillips. Utilisez la Vis (I) pour fixer le Limiteur de Tiroir ( J) à le Panneau Central (3). (ESP) Coloque los Pies (8) en la Panel Central (3) usando un Tornillo (C) y un destornillador Phillips.
Page 30
Étape / Paso 9 (FR) Fixez le Panneau Supérieur (1) et la Panneau Inférieur (3) dans les Chevilles du Panneau Gauche (6) et du Panneau Droit (7) à l'aide de la Vis (G) et du Boitier de Assemblage (B) et d'un tournevis Phillips.
Page 31
Étape / Paso 10 (FR) Fixez le Panneau Arrière Supérieur (9) et le Panneau Arrière (10) à l'aide de la Vis (I) et du Plaque (H) et d'un tournevis Phillips. (ESP) Fije el Panel Trasero Superior (9) y el Panel Posterior (10) con el Tornillo (I) y las Placas (H) y un destornillador Phillips.
Page 32
Étape / Paso 12 (FR) Pour terminer, fixons votre support TV au mur! Fixez l'Rubán(N) à votre support TV à l'aide d'une rondelle (L) et d'une vis (I). (ESP) Para finalizar, ¡fijemos el soporte de TV a la pared! Fije la Cinta (N) al soporte de TV con una arandela (L) y un tornillo (I).
Page 33
Step 13 (FR) Insérez la douille en plastique (M) dans le mur. Ensuite, fixez l'ancrage mural (N) au mur à l'aide d'une rondelle (L) et d'une vis (K). (ESP) Inserte el Tapón de plástico (M) en la pared. Luego, fije el anclaje de pared (N) a la pared con una arandela (L) y untornillo (K).
Page 34
Tu as réussi! Profite de ton nouveau TV Stand! Disfrute de su nueva TV Stand! 45kg 100lbs 4,5kg 10lbs 23kg 50lbs...
