SKILL
BOLLARD
MODELS: S.6350, S.6360
IMPORTANT - READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES, BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT, AND THE HAZARDS INVOLVED. PROPER GROUNDING IS REQUIRED FOR SAFETY.

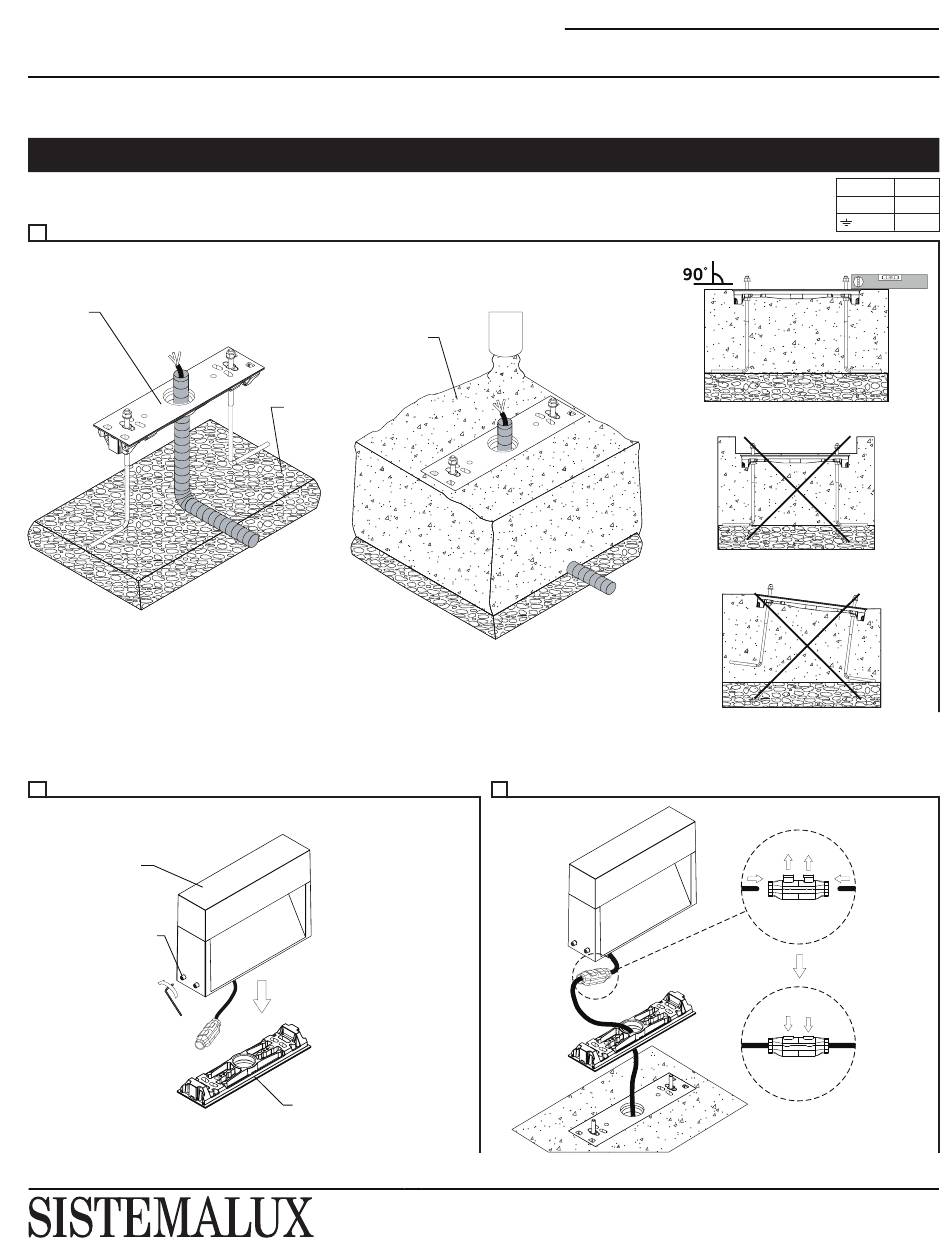

INSTALLATION IN CONCRETE WITH FLANGE - WITH INTEGRAL DRIVER (120-277V)
A- INSTALL FLANGE ACCESSORY IN CONCRETE FLUSH WITH THE MOUNTING SURFACE.
A
FLANGE
B- UNFASTEN THE SET (4) SCREWS WITH THE ALLEN KEY (INCLUDED) AND PULL MOUNTING BASE OFF THE MAIN BODY. DO NOT
COMPLETELY REMOVE SCREWS
C- MAKE ALL WIRE CONNECTIONS (FOLLOWING POLARITY MARKING).
B
MAIN BODY
SET SCREWS
INS-547
CONCRETE
ROCK
MOUNTING BASE
INSTALLATION SHEET
C
LAST UPDATE: January 25, 2018
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 OF 2
LIVE
BLACK
NEUTRAL
WHITE
GREEN
OK
NO!
NO!
EV - V0
