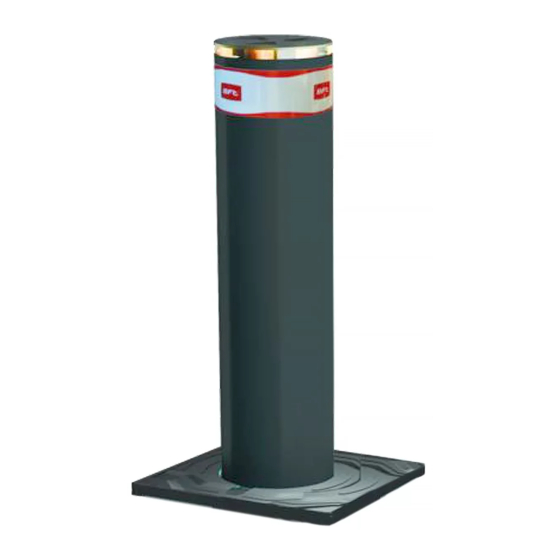

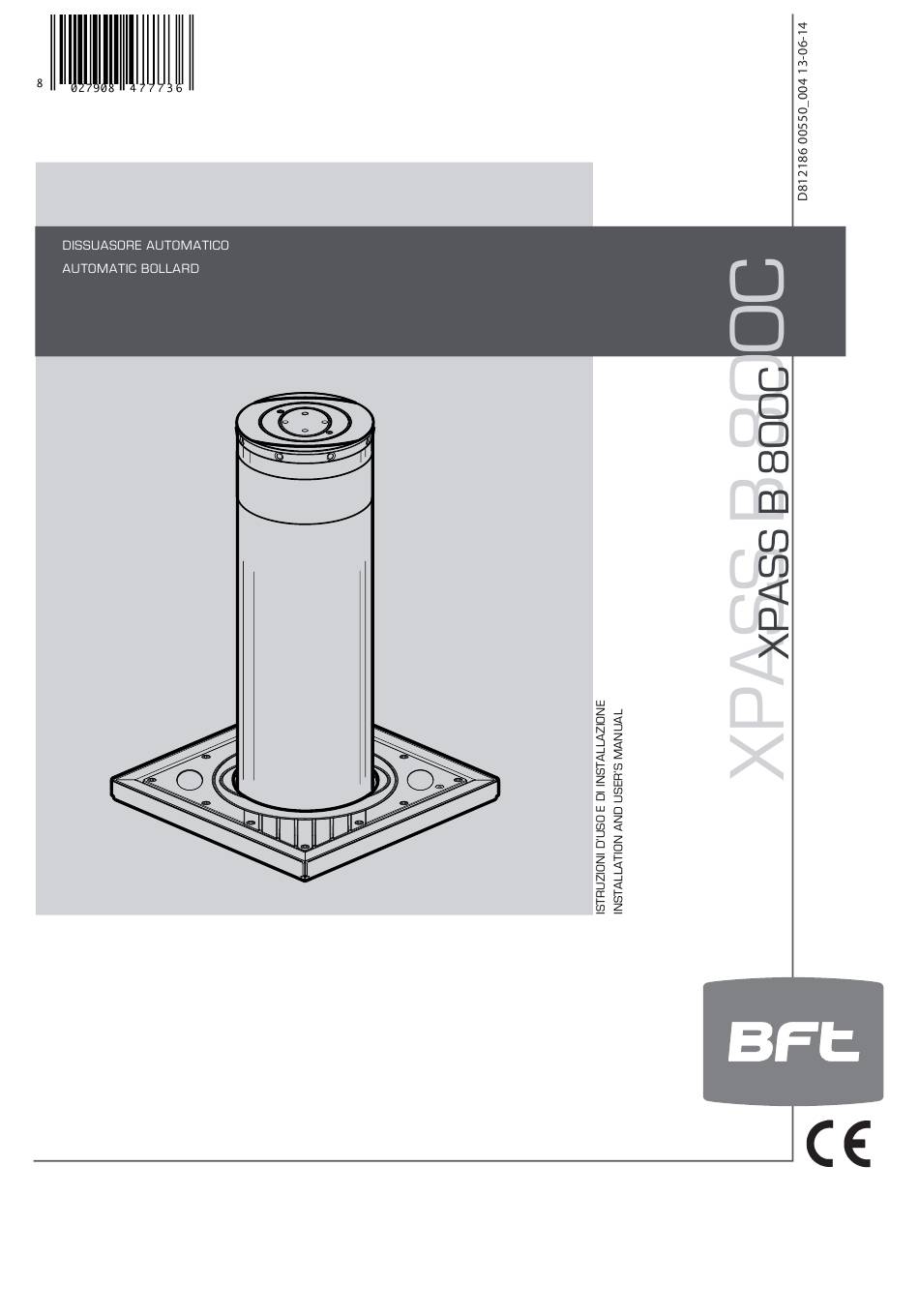

- Page 1 Attenzione! Leggere attentamente le “Avvertenze” all’interno! Caution! Read “Warnings” inside carefully! Attention! Veuillez lire attentivement les Avertissements qui se trouvent à l’intérieur! Achtung! Bitte lesen Sie aufmerksam die „Hinweise“ im Inneren! ¡Atención¡ Leer atentamente las “Advertencias” en el interior! Let op! Lees de “Waarschuwingen” aan de binnenkant zorgvuldig! www.BFTGateOpeners.com | (800) 878-7829 | Sales@BFTGateOpeners.com...
-
Page 2: Technical Specifications
The INSTALLATION, USE AND MAINTENANCE handbook is for installers, users and maintenance engineers. Please read it carefully before installing the appliance, before using it and before routine or extraordinary maintenance work. Operations that, if not carried out correctly, can be risky, are indicated with the following symbols The manufacturer is not liable for injury to people or animals or damage to things in the case of applications that exceed the limits specifi ed on the enclosed technical data sheet or by a use diff erent from what the appliance has been designed. - Page 3 DIMENSIONI D’INGOMBRO • OVERALL SIZE DIMENSIONS 1000 ÷ 1200 Ø20 Fe B44k (non forniti • not provided) Ø273 x 10 DISPOSIZIONE • LAYOUT Asfalto - Road surface Allacciamento alla rete fognaria Ø100 - Connection to the sewer network Ø100 Cemento RcK25 - Cement RcK25 Sabbia fi ne - Fine sand Guaina Ø50 - Sheathing Ø50 Ghiaia - Pebble gravel...
- Page 4 Lampe 2 x 0,5 Selettore a chiave - Key selector 2 x 0,5 XPASS B 800C / XPASS B 800C SD Cavo in dotazione / Cable supplied by us Rivelatore magnetico - Detector-Request istruction Cavo intrecciato / Twisted cable Fotocellula trasmettitore - Trasmitter photocell...
- Page 5 INSTALLAZIONE DISSUASORE • INSTALL BOLLARD DRENAGGIO • DRAINAGE Assicurarsi che il terreno abbia un buon assorbimento d’acqua immettendo circa 40 litri d’acqua e verifi cando che lo svuotamento avvenga in meno di 30 minuti; in caso contrario realizzare il drenaggio delle acque tra- mite tubazioni da collegare ad ogni singola cassaforma e raccordate alla rete fognaria con sifone, oppure ad un pozzetto dotato di un sistema di svuotamento dell’acqua.
- Page 6 LIVELLARE COL PIANO STRADALE • LEVEL WITH THE ROAD SURFACE RIEMPIRE DI SABBIA FINO A ~250 MM DAL PIANO STRADALE • FILL WITH SAND TO ~250 MM FROM THE ROAD SURFACE POSARE LA RETE ELETTROSALDATA • LAY THE ELECTROWELDED MESH COMPLETARE LA PAVIMENTAZIONE •...
- Page 7 COLLEGAMENTI ELETTRICI • ELECTRICAL CONNECTIONS PERSEO CBD / PERSEO CBE Sensore stelo alto • Sensor stem high Consultare il manuale d’installazione e uso della centralina PERSEO CBD / PERSEO CBE. Consult the PERSEO CBD / PERSEO CBE control unit’s installation and operating manual. SBLOCCO DI EMERGENZA •...
-
Page 8: General Safety
GENERAL SAFETY • For safety reasons and to comply with current standards, we recommend using the control unit. • The construction components of this product must comply with the following European Directives: 2004/108/CEE, 2006/108/EEC, 2006/42 EEC and subsequent amendments. As for all non-EEC countries, the above-mentioned standards as well as the current national standards should be respected in order to achieve a good safety level.
