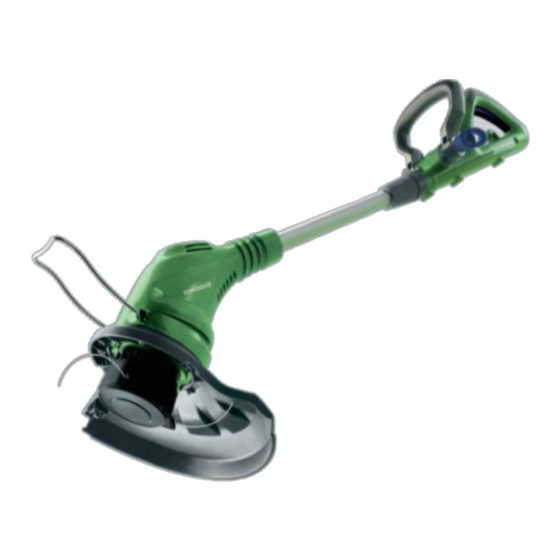

30cm 450w electric grass trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

30cm 450W Electric
Grass Trimmer
577144
These instructions contain important information that will help you get the best from your product,
ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call
the Customer Helpline on 0343 515 1905.
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 577144 and is the answer not in the manual?

Questions and answers

Related Manuals for PowerBase 577144

Summary of Contents for PowerBase 577144

  • Page 1 30cm 450W Electric starting assembly. Grass Trimmer 577144 These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call...

  • Page 2: Table Of Contents

    Contents Safety Information In the box Assembly Operating Instructions & Tips Maintenance Troubleshooting Technical Data Disposal Getting Help Warranty...

  • Page 3: Safety Information

    Safety Information Warning symbols Important - Please read these instructions fully before starting assembly. The following warning symbols appear throughout this instruction manual and indicate the appropriate safety measures you should take when assembling and operating the trimmer. Read the instruction manual. Wear ear and eye protection (PPE).
  • Page 4 The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. The product complies with the applicable UK directives and an evaluation method of conformity for these directives was followed. Important! When using this equipment, the following safety precautions must be followed to avoid injuries and damage.
  • Page 5 • If you give the equipment to any other person, give them these operating instructions as well. • We accept no liability for damage or accidents which result from non-compliance with these instructions. Safety warning WARNING! Be extra careful when using mains-powered equipment.
  • Page 6 • Never allow children or people unfamiliar with these instructions to use the trimmer. • Avoid using the trimmer if bystanders, especially children or pets, are nearby. • Use the trimmer only in daylight or good artificial light. • Avoid using the machine in bad weather conditions, especially when there is a risk of lightning.
  • Page 7 • Take care against injury from the line cutter on the grass guard which controls the cutting line length. After adjusting or extending new cutter line, always return the trimmer to its normal operating position before switching on. • Always ensure that the ventilation openings are kept clear of debris.
  • Page 8 ATTENTION! Danger! The cutting line continues to rotate for a few moments after the motor is switched off. Precautionary measures Work area • Do not expose the appliance to rain. Do not use the appliance in damp or wet conditions. •...
  • Page 9 • Never pull the cord to disconnect the plug from the socket. Keep the cord away from heat, oil and sharp edges. • If the main cable becomes damaged during use, switch the appliance off and disconnect the plug from the mains immediately. Do not touch the mains cable before disconnecting from the mains.
  • Page 10 Inspection and repairs • Before use, check the trimmer for damaged or defective parts. Check for misalignment and seizure of moving parts, broken parts, damage to guards and switches, or any other conditions that may affect its operation. • Do not use the appliance if any part is damaged or defective.
  • Page 11 • Before using the trimmer, check that your cutting path is free from sticks, stones, wire and any other dangerous objects that may cause damage or be thrown from the device. • Only use the trimmer in the correct position, with the cutting line near the ground.

  • Page 12: In The Box

    In the Box...
  • Page 13 Parts On/Off switch Cutting line Power cable Line release button Power cable strain relief Line eyelet Auxiliary handle Spool cap Lever for tube and cutting Line spool head angle adjustment Screw sleeve for tube length Cutter head with line spool adjustment Telescopic tube Flower guard...

  • Page 14: Assembly

    Assembly WARNING! Before assembly, make sure that the trimmer is switched off and unplugged. Step 1 - Assembling the auxiliary handle Carefully unpack the trimmer and check that it is complete: • Pull open the ends of the auxiliary handle to extend it and slide it over the handle mount (Fig.
  • Page 15 Step 3 - Fitting the flower guard • To position the flower guard (16), insert one end into the channel on the side of the motor housing (8), making sure it is secured in place. Apply outward pressure to the other side and insert it into the opposite channel (Fig.

  • Page 16: Operating Instructions & Tips

    Operating Instructions & Tips Starting and stopping Never use the trimmer without its safety guard. Always wear goggles when working with the trimmer. Before each use, check the trimmer for any damage and that it functions correctly. Check that the mains voltage is the same as indicated on the rating plate.
  • Page 17 Cutting WARNING: Danger of injury! Before starting the trimmer, check that the cutting head will not come into contact with stones, rubble or other foreign bodies. - Switch on the trimmer before you approach the grass that is to be cut. - Do not cut damp or wet grass.
  • Page 18 Trimmer settings Adjusting the auxiliary handle • The auxiliary handle (4) can be set in different positions. • Set the handle in such a manner that the cutting head is slightly tilting forwards when in the working position. • Release the winged nut (17) and adjust the auxiliary handle in the required position.
  • Page 19 Fig. 9 Fig. 10 90° Lengthening the cutting lines A short or worn cutting line will not cut effectively. If you notice reduced cutting performance, you should check if there is still enough line on the spool. Disconnect the power plug first! Spool replacement is detailed in section ‘Replacing the Trimming Assembly’.

  • Page 20: Maintenance

    Maintenance Cleaning Before undertaking any work on the trimmer, always disconnect the plug from the mains socket. Any work that is not described in these Instructions must be carried out by a qualified technician. Only use original parts and be very careful with the line cutter during installation work.
  • Page 21 • Simultaneously press the two retaining tabs on the side of the cutting head and remove the spool cap (13) (Fig. 11). • Remove the line spool (14) from the cutting head (Fig. 11). • Insert the new spool with the smooth side facing upwards in the cutting head and thread the two cutting lines (10) through the line eyelets (12).
  • Page 22 If you need to replace the fitted plug, then follow the instructions below. IMPORTANT! The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wire in the mains lead of this apparatus may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows.

  • Page 23: Troubleshooting

    Troubleshooting General troubleshooting Problem Possible Cause Solution Clean line spool (see Line spool is dirty ‘Maintenance’) Excessive vibration and/or poor cutting performance Exchange line spool (see Line spool is defective ‘Maintenance’) Check cable, line, plug; No mains power repair by qualified electrician On/Off switch is Trimmer will not...

  • Page 24: Technical Data

    Technical Data Technical data table Specification Value Model GT3010 Rated input voltage 230V~, 50Hz Power input 450W Idling speed 10000min Cutting circle dual line 300mm Dual line 2 X 5m, fully automatic Line thickness dual line 1.4mm / II Protection class Protection category IP20 Guaranteed sound power level (L...

  • Page 25: Disposal

    WARNING! The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

  • Page 26: Warranty

    Warranty This product is covered by a 3 year warranty. The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 3 years of the date of purchase.
