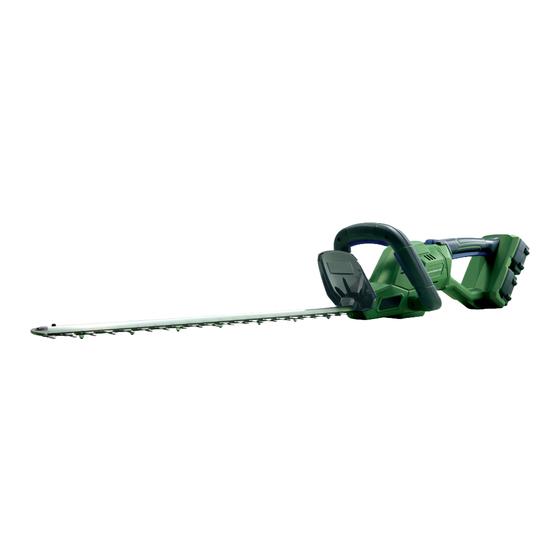

52cm 40v cordless hedge trimmer

Advertisement

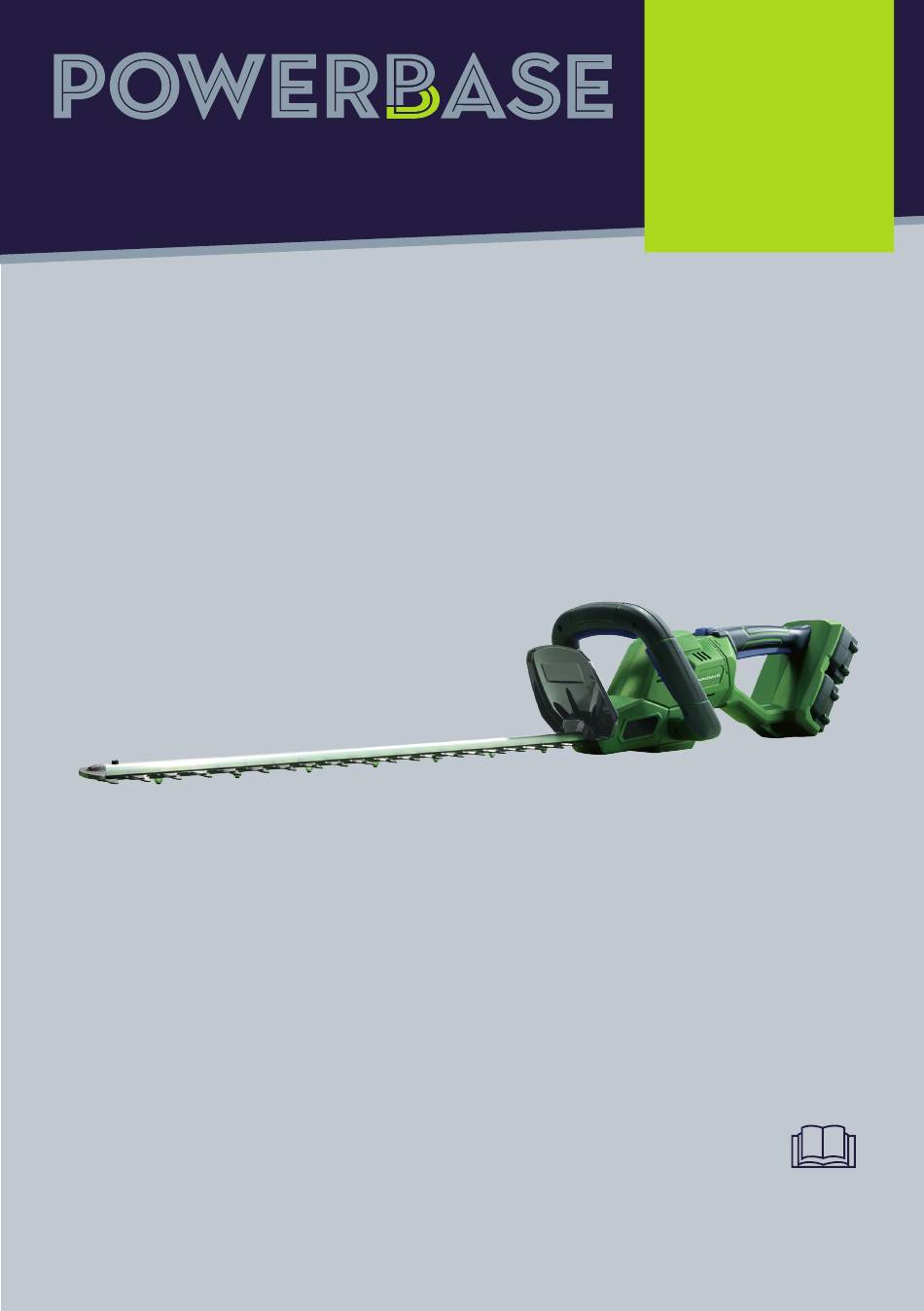

52cm 40V Cordless
Hedge Trimmer
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
577166
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 577166 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PowerBase 577166

  • Page 1 IMPORTANT! 52cm 40V Cordless Please read these Hedge Trimmer 577166 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help...
  • Page 2: Table Of Contents

    Contents General safety warnings Intended use Warning symbols In the box Operating the hedge trimmer Maintenance and storage Troubleshooting Technical data Disposal Getting help Warranty...
  • Page 3: General Safety Warnings

    General Safety Warnings General power tool safety warnings WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ‘power tool’ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 4 Personal safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 5 • Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. Power tool use and care • Do not force the power tool. Use the correct power tool for your application.
  • Page 6 • Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 7 • When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  • Page 8 serious personal injury. • Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer, always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
  • Page 9 trimmer, take great care and always hold it firmly with both hands. • Make yourself familiar with your working area and be alert for possible hazards, which you might not hear due to the motor noise. • Never attempt to use a damaged or incomplete tool or one fitted with an unauthorised modification.
  • Page 10 • When operating the power tool, take great care and always hold it firmly with both hands. Adopt a stable and safe position, especially on slopes. • Never touch the unprotected blades and never carry the trimmer by the blades. •...
  • Page 11 • After charging, disconnect the battery charger from the mains supply. Remove the chassis connection and then the battery connection. • Do not charge a leaking battery. • Do not use chargers for works other than those for which they are designed and intended.
  • Page 12 the battery charger is in a well-ventilated area and away from f lammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging. • Do not attempt to recharge non- rechargeable batteries, as they can overheat and break.
  • Page 13 connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. • Do not expose the battery pack to heat or fire. Avoid storing in direct sunlight. • Do not subject the battery pack to mechanical shock.
  • Page 14 • When discharging several battery packs, keep battery packs of different electrochemical systems separate from each other. • Recharge only with the charger specified by the manufacturer. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 15: Intended Use

    Intended use This Li-ion cordless hedge trimmer is intended for trimming hedges, bushes and shrubs. Observe the technical data for the maximum cutting capacity. Do not cut non plant material or branches exceeding the stated maximum capacity. For safety reasons, it is essential to read this entire instruction manual before first operation and to observe all the instructions herein.
  • Page 16 Do not operate or expose the product to rain or wet conditions. Guaranteed sound power level in 94dB. Keep bystanders away. Remove the battery pack before any adjustment or maintenance. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
  • Page 17 Warning symbols on the battery Do not dispose of batteries in rivers or immerse in water. Do not subject the battery to strong sunlight over long periods, and do not leave it on a heater (max. 45°C). Do not throw on fire. Contains a Li-ion battery.
  • Page 18: In The Box

    In the box Parts Blade sheath Blade Guard Front handle Safety switch Handle rotating button Rear handle Trigger Battery pack 10. Charger...
  • Page 19 WARNING! Before using the tool, read all instructions carefully. Blade sheath Charging the battery NOTE: The battery pack comes partly charged. Charge the battery pack prior to first use, ideally at least 60 minutes. • Always pull out the plug of the charger from the mains before removing or connecting the battery pack to the charger.
  • Page 20 Charge the battery pack before operating when it is at medium or low battery charging level. Connect the battery pack to the battery charger. Insert the mains plug into the socket. The green charging status LED light will flash. Once the battery pack is completely charged, the green charging status LED is lit continuously, indicating that the charging process is complete.
  • Page 21: Operating The Hedge Trimmer

    Operating the hedge trimmer Switching on/off WARNING! If any parts are missing, damaged or broken, do not operate your hedge trimmer until all damaged parts have been replaced or repaired. Failure to do so could result in serious personal injury. For your safety, this tool is equipped with a dual safety-switch system.
  • Page 22 Cutting the hedge WARNING! Before using this hedge trimmer, make sure that you have read all of the safety instructions. When operating the unit, check for the following: Wear eye protection and appropriate clothing (PPE). Hold the front handle with one hand and the rear handle with the other hand.
  • Page 23 Use the rotating handle This hedge trimmer has a rotating handle which allows you to rotate the rear handle to 5 positions (-90 , -45 , 45 , 90 ). Press the handle rotating button (6) to switch the handle to the position you need for easily trimming the side of the hedge.
  • Page 24: Maintenance And Storage

    Maintenance and storage WARNING! Before performing any repair work, always remove the battery pack. Cleaning the product – Use a soft brush to remove any accumulated debris. – Wear safety glasses to protect your eyes whilst cleaning. – Wipe down the product enclosure with a slightly damp cloth. –...
  • Page 25: Troubleshooting

    Troubleshooting Although your new cordless hedge trimmer is really easy to operate, if you do experience problems, please check the following: Problem Possible cause Solution Product does 1. Not connected to 1. Connect to battery not start battery pack pack 2.
  • Page 26 Noise and vibration data A weighted sound pressure 78.7dB(A) K : 3dB(A) A weighted sound power 89.5dB(A) The guaranteed sound power 94dB(A) level Typical weighted vibration 3.24m/s K=1.5m/s WARNING! The sound values have been determined according to the noise test code given in EN 60745-2-15, using the basic standards EN ISO 11094 and EN ISO 3744.
  • Page 27: Disposal

    Disposal The hedge trimmer and its accessories are made of various recyclable materials. Dispose of the hedge trimmer in accordance with your local recycling regulations. Getting help Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support. We are open during office hours but you can always send an email via support@coreservice.co.uk.
