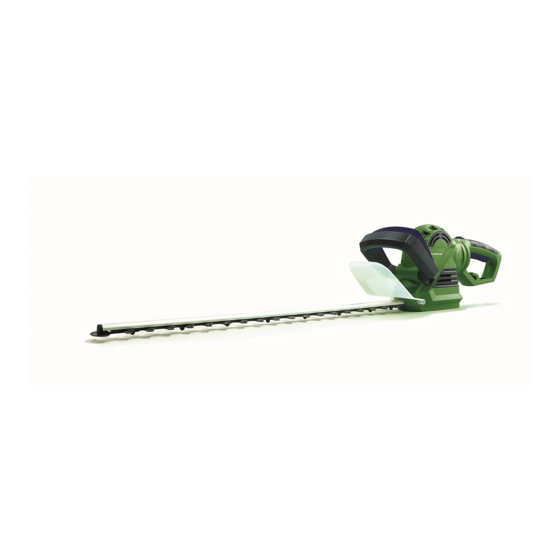

66cm 710W Electric
Hedge Trimmer
These instructions contain important information that will help you get the best from your product,
ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call
the Customer Helpline on 0343 515 1905.
577143
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PowerBase 577143
Summary of Contents for PowerBase 577143
- Page 1 66cm 710W Electric starting assembly. Hedge Trimmer 577143 These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call...
-
Page 2: Table Of Contents
Contents General Safety Warnings In the Box Assembly Operation Maintenance Troubleshooting Technical Data Disposal Getting Help Warranty... -
Page 3: General Safety Warnings
General Safety Warnings Important - Please read these instructions fully before starting assembly. Warning symbols Certain symbols below may be present on the tool. The aim of the safety symbols is to draw attention to possible dangers. The safety symbols and the information which accompanies them must be well understood and adhered to. - Page 4 Do not expose to rain. Disconnect the mains plug if the cord is damaged or entangled. Disconnect the plug before any maintenance. Conforms to the directive 2000-14/EC. Guaranteed sound power level for hedge trimmers. Class II equipment. Waste electrical products should not be disposed of with household waste.
- Page 5 General power tool safety warnings WARNING! This hedge trimmer can cause serious injuries! Never try to use this electric hedge trimmer before reading and fully understanding all the instructions, safety rules, control elements, etc., contained in this manual. Not respecting this information and the safety instructions can lead to an accident, such as a fire or an electric shock, resulting in serious injuries.
- Page 6 The term ‘power tool’ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety • Keep the work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
- Page 7 conditions. Water entering a power tool will increase the risk of electric shock. • Do not abuse the cable. Never use the cable for carrying, pulling or unplugging the power tool. Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock.
- Page 8 Protective equipment, such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions, will reduce personal injuries. • Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, and before picking up or carrying the tool.
- Page 9 • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care • Do not force the power tool. Use the correct power tool for your application.
- Page 10 • Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 11 Hedge trimmer safety warnings • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
- Page 12 • Hold the hedge trimmer by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a ‘live’ wire may make exposed metal parts of the hedge trimmer ‘live’ and could give the operator an electric shock.
-
Page 13: In The Box
In the Box Parts Power cable with plug Safety switch Power cable strain relief Front handle On/Off switch Front guard Rear handle Cutting blade Handle adjustment switch Blade cover Top cover... -
Page 14: Assembly
Assembly Blade cover Check the hedge trimmer for any missing parts. If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. Carefully remove the blade cover from the cutting blade before use. - Page 15 Handle adjustment The rear handle can be adjusted according to the type of work to be carried out. Pull back the handle adjustment switch, turn the handle in the desired direction and release the switch. The handle can be to set to 5 different positions: 0°, 45° and 90° in clockwise direction and 45°...
- Page 16 Switching on/off Ensure that all protective elements are firmly in place before using the hedge trimmer. Make sure to always adopt a very stable working position in order to use this power tool. This hedge trimmer is equipped with a safety switch, which requires both hands to be applied to the two switches in order to make the power tool work.
- Page 17 • Older hedges require a side to side movement. Hold the blades slightly inclined. • The branches which are too thick must be cut with a saw. • For the perpendicular faces of hedges, employ a cutting motion from bottom to top. To obtain a flat finish: •...
-
Page 18: Maintenance
Maintenance Remove the plug from the main power supply before any intervention on the power tool. Wear gloves for all blade cleaning operations. Always contact an authorised repairer in case of any doubts. Cleaning Clean and maintain the hedge trimmer regularly. This will keep its excellent cutting performance for many years. - Page 19 ATTENTION! All works except the current maintenance and any intervention on the cutting device, must be carried out imperatively by an After-Sales Service authorised by the manufacturer.
- Page 20 Plug replacement 5 AMP fuse approved to BS 1362 Connect Blue Brown L (Live) to N (Neutral) Outer sleeve Cable grip firmly clamped If you need to replace the fitted plug, follow the instructions below. IMPORTANT! The wires in the mains lead are coloured in accordance with the following code: Blue –...
-
Page 21: Troubleshooting
Troubleshooting General troubleshooting Suspected malfunctions are often due to issues that the user can fix themselves. Therefore, check the product using this section. In most cases, the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist, if you cannot solve the problem yourself. -
Page 22: Technical Data
Technical Data Technical data table Specification Value Factory model HTEG37-660 Operating voltage 230-240V~ 50Hz Power 710W Movement of the blades 1600min Length of the blade 660mm Length of the cutter 600mm Distance between the teeth 24mm Weight 4.1kg A weighted sound pressure 79dB(A) K=3dB A weighted sound power 99dB(A) K=3dB... -
Page 23: Disposal
WARNING! This equipment may cause Hand-Arm Vibration Syndrome (HAVS) if its use is not adequately monitored and managed. Preventative measures include, among others, regular maintenance and care of the product and cutting attachments, keeping hands warm and periodical breaks, as well as proper planning of work processes. Disposal Disposal and recycling Recycle unwanted materials instead of disposing of them as... -
Page 24: Warranty
Warranty This product is covered by a 3 year warranty. The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 3 years of the date of purchase.
