PowerBase SLK26B Instruction Manual

55cm 26cc petrol
Hide thumbs
Table of Contents

Advertisement

Quick Links

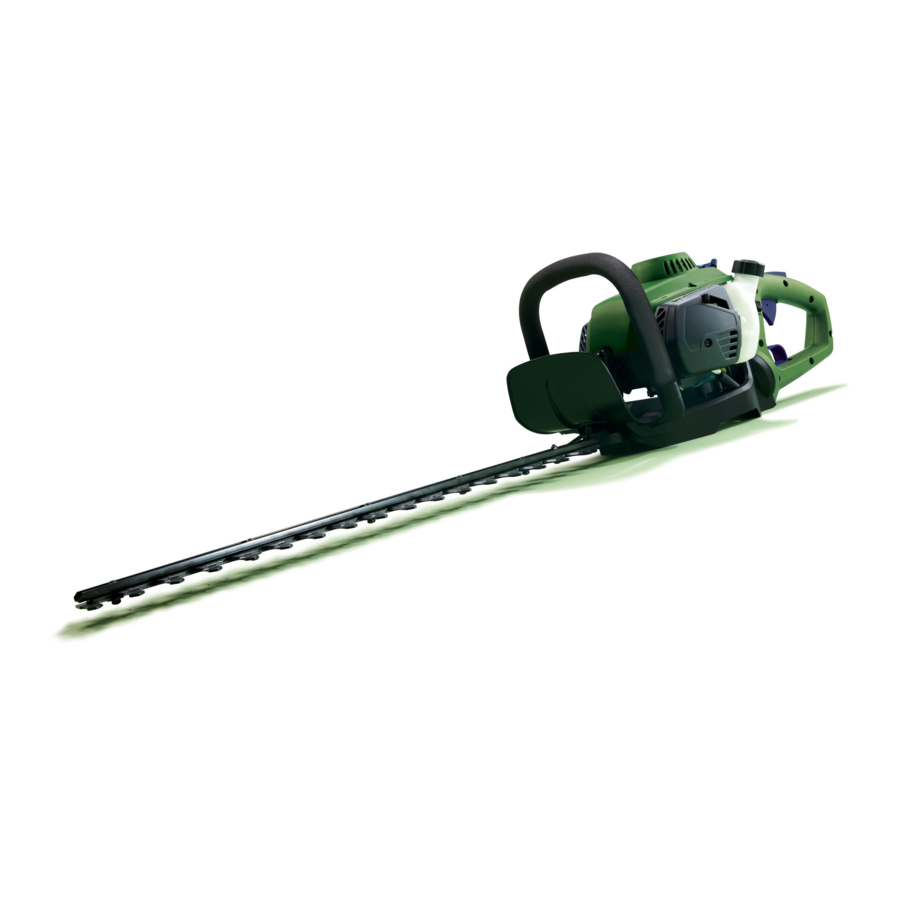

55cm 26cc Petrol
Hedge Trimmer
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
577158
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLK26B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBase SLK26B

Summary of Contents for PowerBase SLK26B

  • Page 1 Instruction Manual 53cm Self Propelled Petrol Rotary Lawn Mower IMPORTANT! 55cm 26cc Petrol Please read these Hedge Trimmer 577158 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call the Customer Helpline on 01904 727 509.

  • Page 2: Table Of Contents

    Contents General safety warnings Intended use Warning symbols In the box Preparing to operate the hedge trimmer Operate the hedge trimmer Stopping Cleaning the air filter Replacing the spark plug Maintenance and storage Troubleshooting Technical data Disposal Getting help Warranty...

  • Page 3: General Safety Warnings

    General Safety Warnings Safety warnings WARNING! Read all safety warnings and instructions designated by the symbol. Save all warnings and instructions for future reference. • Always ensure anyone intending to operate this machine is fully conversant with the contents of this instruction manual prior to assembling, maintaining or operating the machine.
  • Page 4 General safety • Keep these instructions in a safe place for reference at a later date. • Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. • Never allow children or people unfamiliar with these instructions to use the hedge trimmer.
  • Page 5 debris, which can be thrown or become entangled in the cutting line or blade. • Wear Personal Protective Equipment (PPE), such as safety glasses or goggles, when operating this unit. • Wear heavy, long trousers, boots, and gloves. Do not wear loose fitting clothing, shorts, or go barefoot.
  • Page 6 • Hedge trimmer transport. The hedge trimmer is transported with a blade protection cover. When not in use, replace this cover to prevent accidents. Secure the machine against tilting, damage and fuel leakage. • Remove tool keys. Before switching the hedge trimmer on, remove all keys, etc.
  • Page 7 suitable gloves and taking regular breaks. Please be aware that the time of usage is lowered by personal dispositions to bad circulation, a low outside temperature, or a firm grip of the tool when working. • Watch for damaged parts. The machine should be carefully inspected before use.
  • Page 8 Caution! Using different cutting blades, and other fixtures and extensions that are expressly not recommended, can endanger people and property. WARNING! The cutting blade can hurt your hands and fingers, and cause life- threatening injuries! The manufacturer cannot be liable if the machine was modified or used unprofessionally, and damage arose as the result of these actions.
  • Page 9 G. Do not use deformed or damaged cutting blades (cutting blade destruction). • Switch off the engine before you start adjusting or maintaining the machine. • Make this instruction manual available to everybody who is working with the machine. • Use this machine only for trimming hedges, foliage, and cutting wood, max.
  • Page 10 • Make sure the cutting blade is installed in the right position. • The machines protective device cannot be disassembled or made dysfunctional in any way. • Damaged or faulty protective devices should be replaced immediately. • Ensure that the hedge trimmer is correctly located in a designated working position before starting the engine.
  • Page 11 • If you want to remove some defects or clean the machine of jammed pieces of wood, you must switch it off first. • Machine adjustment, measuring, cleaning, etc., is allowed only when the engine is switched off. • Do not leave an active engine unsupervised. •...
  • Page 12 • The machine complies with all relevant safety provisions. Repairs can be carried out only by qualified repair staff in authorised centres using original spare parts. In case of non-compliance with the provision, there is a danger of accident. • Do not use the hedge trimmer if your concentration is lowered, after taking medication, if you are under the influence of alcohol, or are tired.

  • Page 13: Intended Use

    • Replace worn or damaged parts for safety. • If the fuel tank has to be drained, it should be done outdoors. Intended Use Your hedge trimmer has been designed for trimming light foliage, and is intended for DIY use only. The device is not permitted to be used in public gardens, parks, sports centres or at roadsides, as well as agriculture and...

  • Page 14: Warning Symbols

    Warning Symbols IMPORTANT! Please read all of the safety and operating instructions carefully before using this tool. Pay particular attention to all sections of this user guide that carry warning symbols and notices. WARNING! This is a warning symbol. This symbol is used throughout the user guide whenever there is a risk of personal injury.
  • Page 15 Wear hearing protection and eye protection (PPE) when using the device. Wear robust footwear when using the device. Wear protective gloves when using the device. Guaranteed sound power level. ‘I’ means ON ‘STOP’ means OFF Choke. Move choke lever to the ‘RUN’ position. See the Starting and Stopping Engine Section.

  • Page 16: In The Box

    In The Box Parts Hedge trimmer 2. Blade cover 3. Trimmer blade 4. Switch 5. Handle rotating switch 6. Engine start pull handle Fuel tank cap 8. Front handle 9. Front guard Tools 10. Plug wrench and Phillips screwdriver x 1 11.

  • Page 17: Preparing To Operate The Hedge Trimmer

    Preparing to Operate the Hedge Trimmer WARNING! Always shut off the engine before fuelling. Never add fuel to a machine with a running or hot engine. Move at least 30ft. (9m) from the refuelling site before starting the engine. Do not smoke! IMPORTANT! It is crucial that the fuel is mixed correctly.

  • Page 18: Operate The Hedge Trimmer

    1b. FILLING THE FUEL TANK Clean the surface around the fuel cap to prevent contamination. Loosen the fuel cap slowly. Remove and rest the cap on a clean surface. Carefully pour fuel into the tank using a funnel to avoid spillage. Prior to replacing the fuel cap, clean and inspect the seal located in the fuel cap.
  • Page 19 4) Move the choke lever (F) to the position. 5) Pull the starter grip until the engine runs. 6) Let it run for about 30 seconds then operate the hedge trimmer. ATTENTION! Don’t touch the blade. 2b Starting under warm conditions 1) Set the switch (A) to I (on).
  • Page 20 Step 4 – Trimming Depress the throttle lever lock (D) and throttle lever (E) to activate the blade. Always start with the sides of the hedge. Guide the trimmer along an arch route up and down and keep cutting. You should be using both blade sides.

  • Page 21: Stopping

    Stopping The hedge trimmer is equipped with an automatic brake system for quick stopping, which stops the blade immediately once the throttle is released to prevent a possible accident. If you want to switch off the machine completely, you must move the switch into the ‘STOP’...

  • Page 22: Replacing The Spark Plug

    Replacing the Spark Plug WARNING! Always turn off the engine before performing maintenance tasks. 1) Pull off the ignition cable plug. 2) Use the plug wrench to unscrew and remove the spark plug. 3) Insert a new spark plug and tighten it carefully with the plug wrench.

  • Page 23: Maintenance And Storage

    Maintenance and Storage Storing the hedge trimmer for short periods • Drain all fuel from the tank into a container approved for petrol. Run the engine until it stops. Clean all foreign material from the trimmer. Store it in a well-ventilated place that is out of the reach of children.
  • Page 24 Never allow fluid to get into the machine. Do not use caustic cleaning products. Ensure that the blades cutting edge is always well oiled. List of consumable Powerbase parts 984125 Air filter...

  • Page 25: Troubleshooting

    Troubleshooting CAUTION! - Always switch off the engine and pull the ignition cable before starting any inspection or adjustment work. - Remember that the exhaust and other parts will get hot after running the engine, even if only for a few minutes. The following table provides solutions to common problems encountered with the hedge trimmer.
  • Page 26 Fouled spark plug Clean the spark Engine does plug, check its not reach its (remains of carbon maximum on the electrodes) temperature, speed spark gap to large replace if needed. Adjust at 0.6- 2. Fouled carburettor 0.7mm or its jets 2.

  • Page 27: Technical Data

    Technical Data Property Value Model no. SLK26B Engine type Single-cylinder, 2-stroke Displacement (cc) 26cm Max. power/engine speed 0.75 kW/8000 min Tank capacity 460ml Idle speed 3000min Clutch speed 4000min Ignition C.D.I Cutting length 550mm Fuel ratio (petrol: 2-stroke engine oil)

  • Page 28: Disposal

    Disposal The hedge trimmer and its accessories are made of various recyclable materials. Dispose of the hedge trimmer in accordance with your local recycling regulations. Getting Help Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support. We are open during office hours but you can always send an email via support@coreservice.co.uk.
