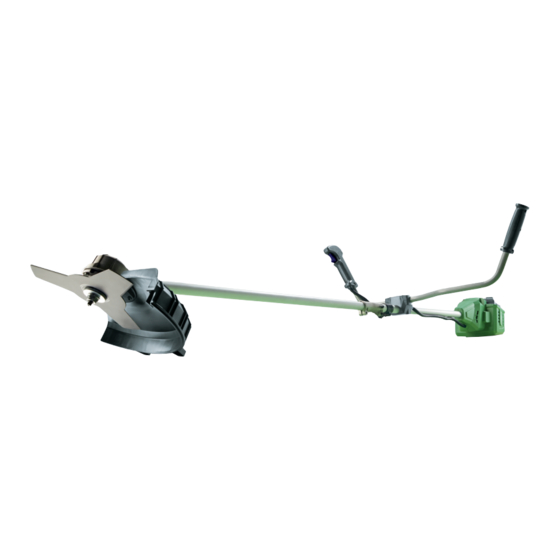

34cm 40V Cordless
Brush Cutter
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
577171
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 577171 and is the answer not in the manual?

Questions and answers

ROY WEBB
June 10, 2025

where is the model number to be found

0

Subscribe to Our Youtube Channel

Related Manuals for PowerBase 577171

Summary of Contents for PowerBase 577171

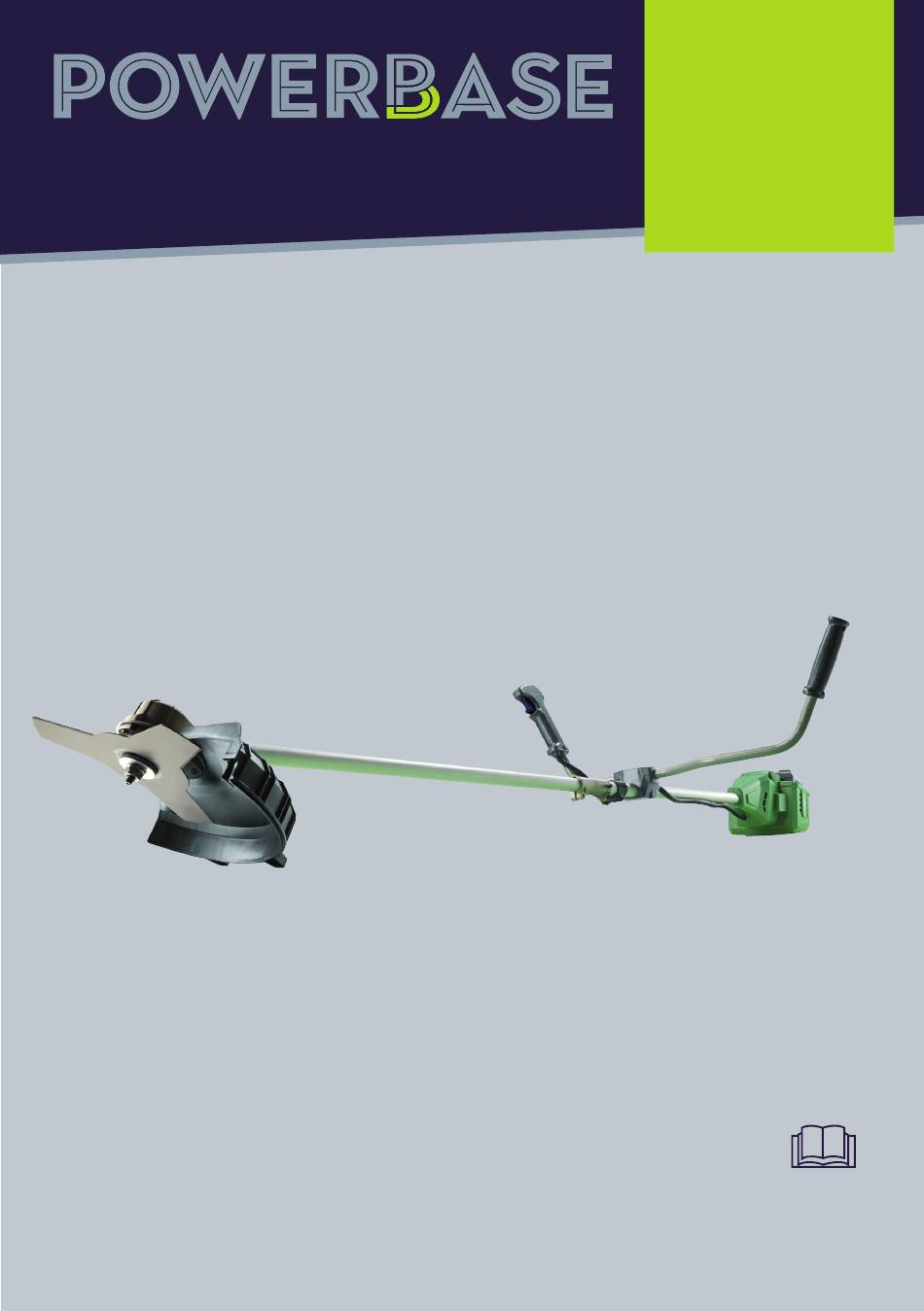

  • Page 1 IMPORTANT! 34cm 40V Cordless Please read these Brush Cutter 577171 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help...

  • Page 2: Table Of Contents

    Contents General Safety Warnings.................3 Intended use......................In the box..../ / /./....................19 Assembly......................21 Operating the hedge trimmer../ /............24 Maintenance and Storage../ /............27 Troubleshooting....................28 Technical Data..../../ /................29 Recycling and Disposal../............30 Warranty......................31...

  • Page 3: General Safety Warnings

    General Safety Warnings safety warnings WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric. shock, fire and/or serious injury. WARNING! Read all safety warnings and instructions designated by the symbol. Save all warnings and instructions for future reference.
  • Page 4 General Safety • Keep this operating and maintenance manual in a safe place for reference at a later date. • Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. • Never allow children or people unfamiliar with these instructions to use the cutter.
  • Page 5 Personal safety • Use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. •...
  • Page 6 clothes, jewellery or long hair can be caught in moving parts. • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of a dust collection device can reduce dustrelated hazards. Operation safety •...
  • Page 7 • Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine) 1) Whenever the machine is left unattended. 2) Before clearing a blockage. 3) Before checking, cleaning or working on the machine. 4) After striking a foreign object. 5) Whenever the machine starts vibrating abnormally.
  • Page 8 General safety warnings for battery chargers WARNING! This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the machine by a person responsible for their safety.
  • Page 9 • Do not use the charging device in the open. • Do not short out the contacts of the battery or charger. • Respect the polarity (+/-) when charging. • Do not open the unit and keep out of the reach of children.
  • Page 10 in air temperatures below 0°C, or above 45°C. This is important as it can prevent serious damage to the battery pack. • Only charge a battery pack of the same model provided by the manufacturer or different models recommended by them. Safety warnings for battery packs •...
  • Page 11 advice. • Seek medical advice immediately if a cell or battery pack has been swallowed. • Keep the battery pack clean and dry. • Wipe the battery pack terminals with a clean, dry cloth if they become dirty. • The battery pack needs to be charged before use.

  • Page 12: Intended Use

    • Do not use any battery pack which is not designed for use with the equipment. • Keep the battery pack out of the reach of children. • Retain the original instruction manual for future reference. • Remove the battery from the equipment when it is not in use.
  • Page 13 Warnings Symbols The following warning symbols appear through this manual and indicate the appropriate safety measures you should take when operating and maintaining the machine. Warning! Read the instructions for use prior to. operating the machine. Keep bystanders away. Wear eye and ear protection. Wear protective gloves.

  • Page 14: In The Box

    In The Box Parts Battery pack x 2 2. Dual port charger 3. Shoulder strap 4. Adjustment knob 5. Brush cutter blade 6. Hex key & hexagon socket wrench Operation handle 8. Safety guard 9. lower shaft 10. Upper shaft 11.

  • Page 15: Assembly

    Assembly WARNING! Always take care when removing the packaging to prevent causing damage to the machine. Remove all parts of the brush cutter from the box and carefully remove all packaging. Take care not to lose any instructions which may be affixed to the parts. These provide important information which will be required when assembling the brush cutter.
  • Page 16 Assemble the upper cover of the handle holder. Assemble the lower shaft Release the fasten bolt on the shaft connector. Insert the lower shaft into the connector, make sure the stop pin (a) on the shaft slots into the hole (b). Fasten the bolt on the connector.
  • Page 17 Fix the guard with 4 screws and tighten the screws. Assemble the brush cutter blade Press the lock button (C) to fix the output shaft, then rotate the nut in clockwise direction by the socket wrench. Take the outer flange off after releasing the nut, then put the blade, outer flange and nut according to priority.and fasten the nut in anti-clockwise direction.
  • Page 18 Fit the shoulder strap Hook the shoulder strap into the supporting ring on the shaft. Adjust the length until the shaft is below your right hip. NOTE: Let the cutting attachment rest lightly on the ground. If you use a cutting blade, it should balance about 10cm above the ground to prevent contact with stones and the like.
  • Page 19 Warning! Do not use force when installing the battery pack. If the battery pack does not slide in easily, it is not being inserted correctly. Verify that the switch is in the OFF position before inserting or removing the battery pack. Verify that the battery pack has been removed and the switch is in the OFF position before inspecting, adjusting or performing maintenance on any part of the brush cutter.
  • Page 20 3 Green LEDs continuously lit Battery pack fully charged 2 Green LEDs continuously lit Battery pack 65% charged 1 Green LED continuously lit Battery pack 35% charged Battery is dead and needs to be No LED lit charged Charge the battery pack before operating when it is at medium or low battery charging level.
  • Page 21 Operation Starting WARNING! Do not start the unit until it has been completely assembled. Danger of injury! WARNING! Do not operate the device unless you did not find any faults. If a part has become defective, make sure to replace it before you use the device again. Installing the battery pack Keep the battery pack in line with the holder on the device.
  • Page 22 Working instructions Extending the cutting line WARNING! Do not use any kind of metal wire or metal wire encased in plastic in the line spool. This may cause serious injuries to the user. To extend the cutting line, run the engine at full speed and tap the line spool on the ground.
  • Page 23 ATTENTION: Even if it is used carefully, cutting around foundations, stone or concrete walls will result in the line suffering more than normal wear. Trimming/mowing Swing the trimmer from side to side in a scything motion. Always keep the line spool parallel to the ground. Check the site and decide which cutting height you require.
  • Page 24 right. Place the handle in the required position. Remember the increased risk of injury to the user, bystanders and animals, and the danger of damaging property due to objects (for example stones) being thrown. WARNING! Do not use the equipment to remove objects from footpaths, etc.

  • Page 25: Maintenance And Storage

    Maintenance and Storage Injury warning: Always wear protective gloves when working on or around cutting tools. When not in use, in transit or storage, always install transport protection on all cutting tools. Before performing any maintenance or cleaning work, always turn off the engine and pull out the spark plug boot.
  • Page 26 3. Remove any remaining cutting line. 4. Place the new cutting line in the center and hang the loop which has formed into the recess in the spool splitter. 5. Under tension, wind the line onto the spool anti-clockwise. The spool splitter will separate the two halves of the line.
  • Page 27 10. Join the housing parts together again. 11. Cut the excess line to a length of around 13cm. This will reduce the load on the engine when starting and warming up. 12. Remount the line spool. If you are replacing the complete line spool, skip ‘Assembly’.
  • Page 28 Replacement parts/accessories: For the cutting attachment listed here, you can always use the safety guards provided with the unit. Machine/brush cutter: 3541000101047001 Shoulder strap 3222470101132001 Cutting blade 3122470201127001 Spool line Cleaning and storage After use, remove the battery pack from the trimmer. When not in use, store the machine in a dry, safe place, out of the reach of children.

  • Page 29: Troubleshooting

    Troubleshooting Although your new cordless grass trimmer is really easy to operate, if you do experience problems, check the following: Tool runs slowly Check that the spool housing can rotate freely. Carefully clean it if necessary. Check that the cutting line does not protrude more than 9cm from the spool housing.

  • Page 30: Technical Data

    Technical Data Property Value Model No. GY2247 Voltage (2X20V) No Load speed 5800min Brush cutter Sound pressure level LpA=79.1dB(A), K=3dB(A) Sound power level LwA=88.4dB(A), K=2.31dB(A) Cutting width 255mm Grass trimmer Sound pressure level LpA=83dB(A), K=3dB(A) Sound power level LwA=92.5dB(A), K=1.92dB(A) Cutting width 340mm Vibration...

  • Page 31: Disposal

    Disposal The brusher cutter and its accessories are made of various recyclable materials. Dispose of the lawn mower in accordance with your local recycling regulations. Getting Help Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support. We are open during office hours but you can always send an email via support@coreservice.co.uk.
