41cm 20V Cordless

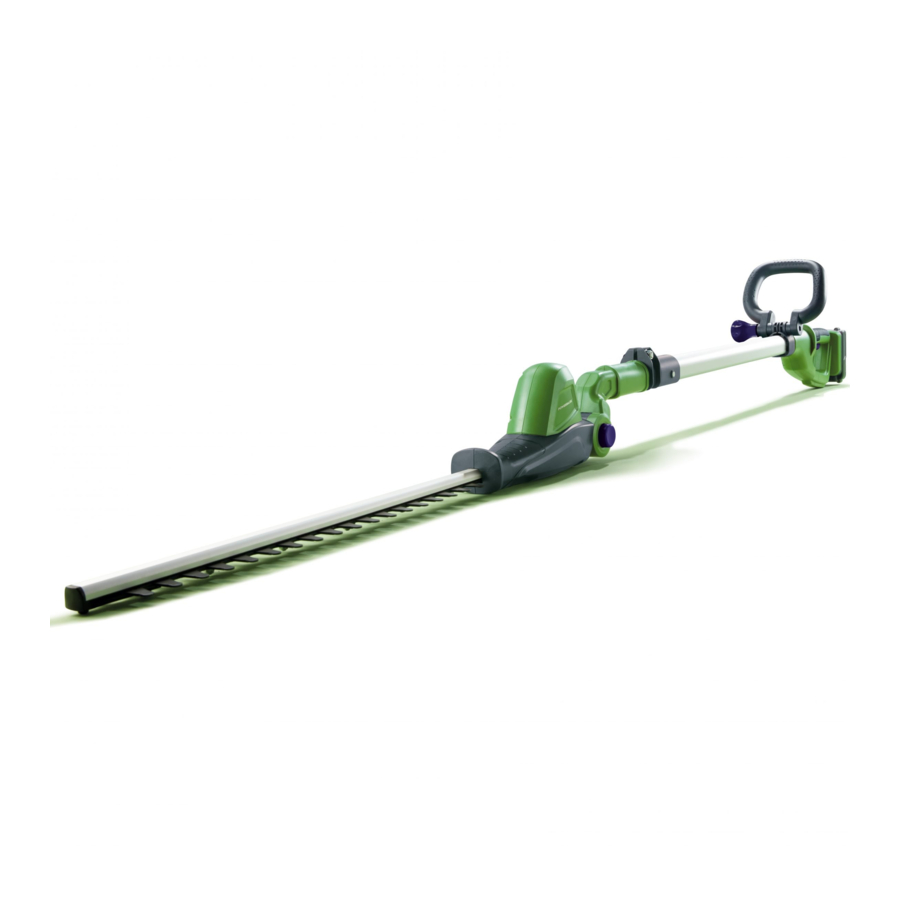

Pole Hedge Trimmer
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
577167
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PowerBase M0E-16ET20-410
Summary of Contents for PowerBase M0E-16ET20-410
- Page 1 Instruction Manual 53cm Self Propelled Petrol Rotary Lawn Mower IMPORTANT! 41cm 20V Cordless Please read these Pole Hedge Trimmer 577167 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
-
Page 2: Table Of Contents
Contents General Safety Warnings..................3 Intended use......................Warning symbols....................18 In the box........................21 Assembly......................25 Operating the hedge trimmer..............26 Maintenance and storage................28 Troubleshooting....................29 Technical data......................30 Disposal......................31 Getting help......................31 Warranty......................32... -
Page 3: General Safety Warnings
General Safety Warnings General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ‘power tool’... - Page 4 not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching sockets will reduce the risk of electric shock. • Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Page 5 Personal safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 6 unexpected situations. • Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. Power tool use and care • Do not force the power tool. Use the correct power tool for your application.
- Page 7 untrained users. • Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 8 children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the power tool by a person responsible for their safety. WARNING! Children must be supervised to ensure that they do not play with the power tool.
- Page 9 or charger. • Respect the polarity (+/-) when charging. • Do not open the unit, and keep out of the reach of children. • Do not charge the batteries of other manufacturers or ill-suited models. • Ensure that the connection between the battery charger and battery is correctly positioned, and is not obstructed by foreign bodies.
- Page 10 model provided by the manufacturer or different models recommended by them. Safety warnings for battery packs • Do not dismantle, open or shred cells or battery packs. • Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short circuit each other, or be short-circuited by conductive materials.
- Page 11 clean, dry cloth if they become dirty. • The battery pack needs to be charged before use. Always refer to this instruction manual and use the correct charging procedure. • Do not keep the battery pack on charge when it is not in use. •...
- Page 12 future reference. • Remove the battery from the equipment when it is not in use. • Dispose of safely in an environmentally- friendly manner. Not with domestic, household waste. Charger safety warnings • Before charging, ensure your charger matches the local AC supply. •...
- Page 13 do not continue to use it, if the cord is damaged. • Do not use in damp or wet conditions. • Do not open or probe the charger. • The charger is intended for indoor use only. Hedge trimmer safety warnings •...
- Page 14 • Hold the power tool by insulated gripping surfaces only; the cutter blade may contact hidden wiring. Cutter blades contacting a ‘live’ wire may make exposed metal parts of the power tool ‘live’ and could give the operator an electric shock.
- Page 15 • Always ensure that all guards are fitted when using the device. Never attempt to use an incomplete tool or a tool with unauthorised modifications. • Always use two hands to operate the power tool. • When transporting or storing the tool, always fit the blade sheath.
- Page 16 immediately switch it off, remove the battery, and check for any damage. • Always be aware of falling debris when cutting the higher sides of a hedge. Information about noise reduction A certain amount of noise caused by this device is unavoidable. Carry out noise- intensive work at authorised and designated times.
- Page 17 Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: • Health defects resulting from vibration emissions if the product is being used over long periods of time or not adequately managed and properly maintained.
-
Page 18: Intended Use
Intended use This Li-ion cordless pole hedge trimmer is intended for trimming hedges, bushes and shrubs. Observe the technical data for the maximum cutting capacity. Do not cut non plant material or branches exceeding the stated maximum capacity. For safety reasons, it is essential to read this entire instruction manual before first operation and to observe all the instructions herein. - Page 19 DANGER! Keep hands away from the blades. Do not operate or expose the product to rain or wet conditions. WARNING! The device is not protected against electric shocks when it touches high voltage lines! Maintain a safe distance of 10m from live electrical lines. Guaranteed sound power level data is 90dB.
- Page 20 Warning symbols on the battery Do not dispose of batteries in rivers or immerse them in water. Do not subject the battery to strong sunlight over long periods, and do not leave it on a heater (max. 45°C). max. 45 Do not throw on fire.
-
Page 21: In The Box
In the box Parts 8. LED light Working head 9. Safety lock-off button 2. Pole tube 10. Front handle 3. Blade sheath 11. Quick release knob 4. Blade 12. Pivot knob 5. Main switch 13. Front handle adjusting knob 6. Battery pack Charger... - Page 22 WARNING: Ensure the battery pack is disconnected from the hedge trimmer before carrying out assembly. Charging the battery WARNING! The charger and battery pack are specifically designed to work together, do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections;...
- Page 23 Important charging notes Never allow the battery to completely discharge before recharging. The battery pack should be placed on the charger whenever the battery pack is noticeably running down or the tool no longer performs a task it previously performed. 2.
- Page 24 kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean. 9. Do not immerse the charger in water or any other liquid. WARNING! Never attempt to open the battery pack for any reason.
-
Page 25: Assembly
Assembly Assemble the front handle Attach the front handle (10) to the block on the pole tube (2) and insert the bolt. Tighten the knob (13) to the bolt. Take off the blade sheath Slide the blade sheath off before you start the trimmer. -
Page 26: Operating The Hedge Trimmer
Operating the hedge trimmer Switch ON/OFF WARNING! If any parts are missing, damaged or broken, do not operate your hedge trimmer until all damaged parts have been replaced or repaired. Failure to do so could result in serious personal injury. Switching on Push forward the safety lock-off button (C) and then press the main switch (B) on the handle. - Page 27 Function of the swivel head Note: The cutter head can be locked in nine positions (-45°~90°). Hold the handle (D) tightly. Push the lock button (E) and then turn the cutter head (F) to the desired position. Release the lock button (E) again and check whether the cutter head is locked in place.
-
Page 28: Maintenance And Storage
Maintenance and Storage Maintenance WARNING! Before any maintenance, always take off the battery pack and wear protective gloves. • Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition. Regularly examine the machine and replace worn or damaged parts for safety. -
Page 29: Troubleshooting
Cleaning the Trimmer WARNING! Before commencing these cleaning procedures or when clearing a blockage, make sure that the hedge trimmer is switched off and the battery is disconnected. Wear safety glasses to protect your eyes whilst cleaning. • Use a soft brush to remove any accumulated debris. •... -
Page 30: Technical Data
Technical data Technical data table Model M0E-16ET20-410 Voltage 20V d.c. Battery type Lithium-ion No load speed 1200/min. Cutting length/tooth spacing 410mm/14mm Battery pack Battery pack B0P-SP07-20-ZJ Battery type Lithium-ion Battery capacity 20Vd.c. 2.5Ah Charging time 1.5 hours Charger Charger B0Q-SP06-20ZB... -
Page 31: Disposal
WARNING! The sound values have been determined according to the noise test code given in EN 60745-2-15, using the basic standards EN ISO 11094 and EN ISO 3744. The sound intensity level for the operator may exceed 80dB(A) and ear protection measures are necessary. The declared vibration value (according to EN 60745-1) has been measured in accordance with a standard test method, and may be used for comparing one product with... -
Page 32: Warranty
Warranty This product is covered by a 2 year warranty. The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 2 years of the date of purchase.
