Delmhorst Navigator Series Quick Start Manual page 2

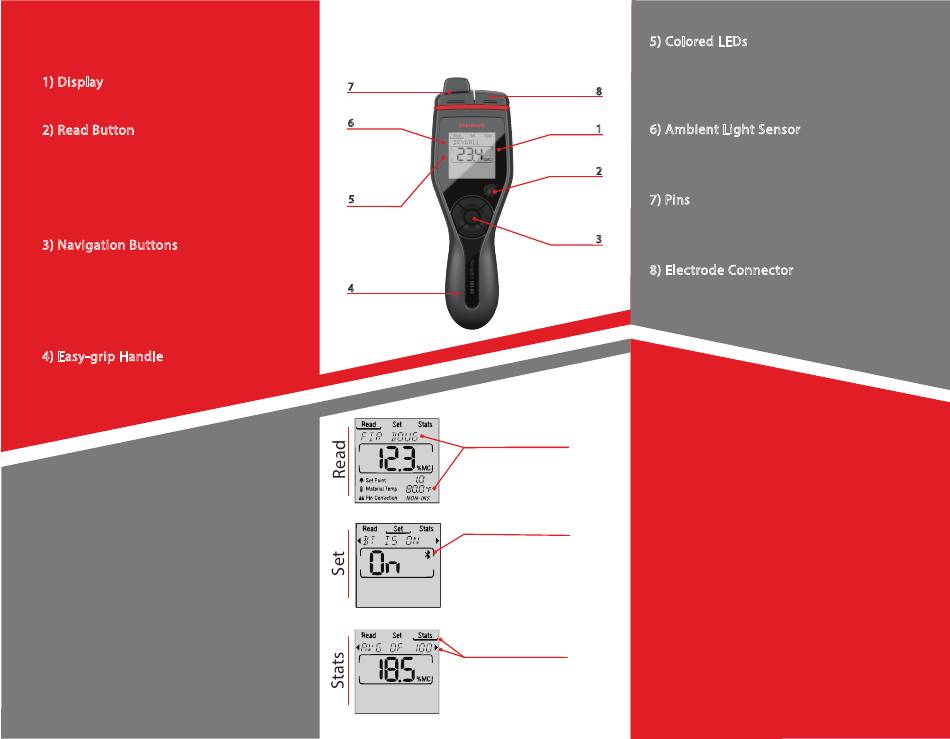

Components
1) Display
• Large, easy to read under all conditions
2) Read Button
• Press from any screen to enter live
reading mode
• Press again to toggle between live
and held reading
3) Navigation Buttons
• Move between and down into the
READ, SET and STATS menus
• Center button to save readings or
changes to settings
4) Easy-grip Handle
• Easily push pins into material
Set Functions
• Calibration Check: 12% MC
• Temperature Units: °F/°C
• Meter Timeout: 1/4/10 minutes
• Bluetooth®: ON/OFF
• Display Brightness: 1-10
• Backlight: ON/OFF/AUTO
• Display Contrast: 1-10
Your BDX Meter
Electrode Connector
7 Pins & Pin Cap
& Electrode Cap
Light
6 Sensor
5
LEDs
Easy-grip
handle
4
Read Adjustments
• Up/down to move between
Read screen settings settings
• Left/right buttons to adjust value
Bluetooth® Indicator *
• Solid
- On and connected
• Blinking
- On and seeking connection
• None
- Off
Selection Arrows
• Left/right to adjust when
blinking
• Center/down to enter current
selection
5) Colored LEDs
• Red, yellow, and green LEDs show the
relative moisture status
8
• Adjustable within the Delmhorst
6) Ambient Light Sensor
Display 1
• Turns backlight on and off in Auto
Read
Backlight mode
Button 2
7) Pins
• Insert integral pins up to 5/16" into
Navigation
material to take reading
Buttons 3
8) Electrode Connector
• Connect with any Delmhorst
electrode to extend functionality
Read Functions
• View, hold and save readings
• Change material/species
• Adjust alarm set point
• Set material temperature
• Set insulated vs. non-insulated pins
Stats Functions
• Save up to 100 readings
• Saved readings contain material type,
reading value, material temp, and pin type
• View average, high and low values
• View last 10 readings
Edge
App
