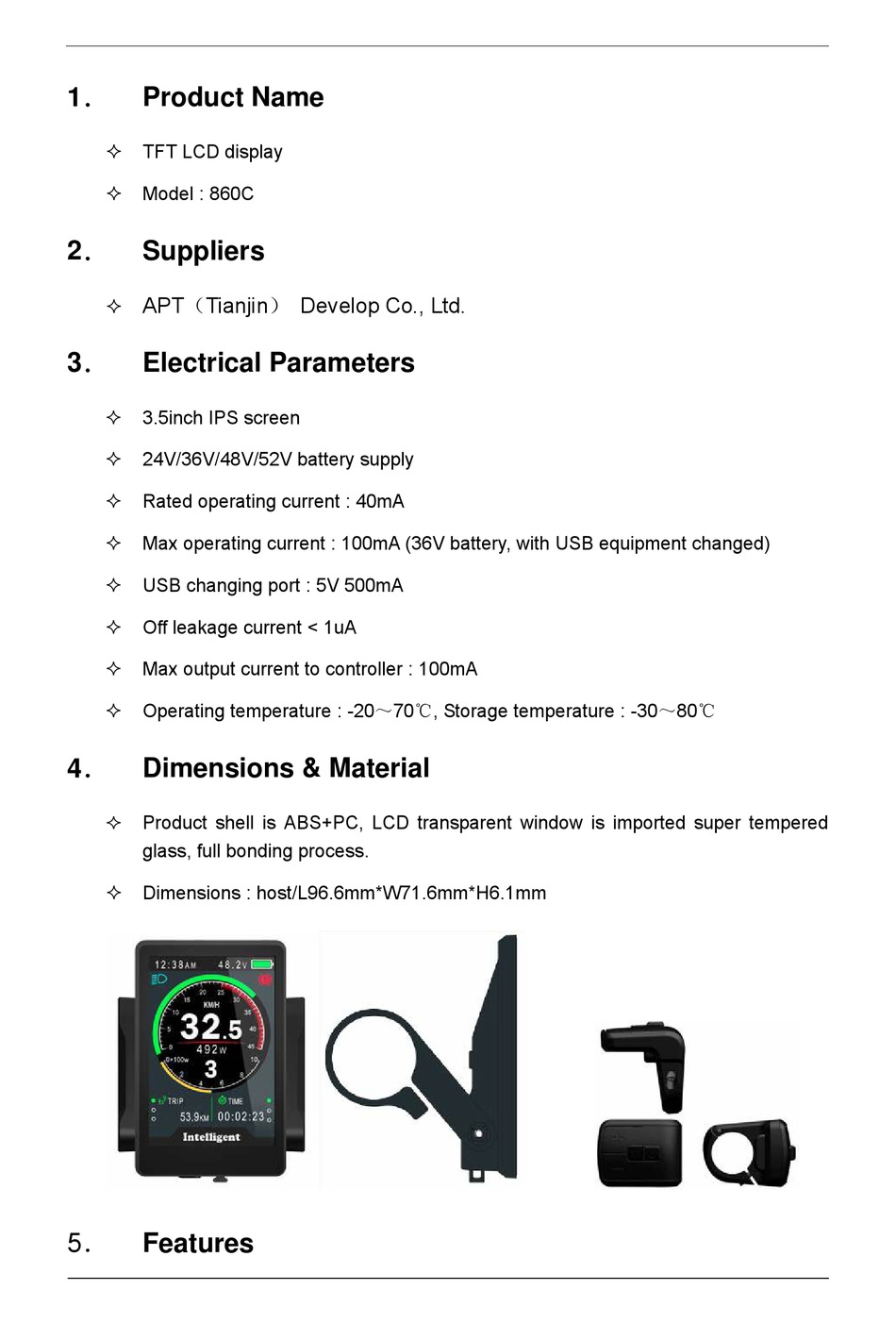

1．
Product Name

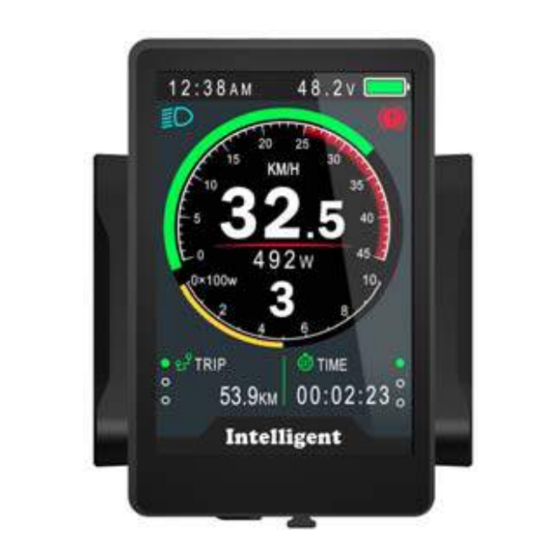

TFT LCD display
Model : 860C
2．
Suppliers
APT（Tianjin） Develop Co., Ltd.
3．
Electrical Parameters
3.5inch IPS screen
24V/36V/48V/52V battery supply
Rated operating current : 40mA
Max operating current : 100mA (36V battery, with USB equipment changed)
USB changing port : 5V 500mA
Off leakage current < 1uA
Max output current to controller : 100mA
Operating temperature : -20～70℃, Storage temperature : -30～80℃
4．
Dimensions & Material
Product shell is ABS+PC, LCD transparent window is imported super tempered
glass, full bonding process.
Dimensions : host/L96.6mm*W71.6mm*H6.1mm
5．
Features
Advertisement
Related Manuals for APT 860C
Summary of Contents for APT 860C
- Page 1 1． Product Name TFT LCD display Model : 860C 2． Suppliers APT（Tianjin） Develop Co., Ltd. 3． Electrical Parameters 3.5inch IPS screen 24V/36V/48V/52V battery supply Rated operating current : 40mA Max operating current : 100mA (36V battery, with USB equipment changed) ...
-
Page 2: Functional Description
Suitable for low temperature，Max -20℃. High-contrast 3.5inch IPS colorful matrix screen. Ergonomic external button design, easy to operate. Speed display: AVG SPEED, MAX SPEED, SPEED(Real-time). Kilometer / Mile: Can be set according to customers’ habits. ... - Page 3 POWER DOWN MENU 7.1 Power On/Off Press and hold Power button for 1 second can turn on/off the display. The Display can automatically shut down when there is no operate & ride for X minutes（X could be 0~9）. *If the display has been set password power on, you need to input the right password before start. 7.2 Assist level operating Short press UP/DOWN button can change the assist level.
- Page 4 **If there is no operation for 5 seconds, display will return Speed (Real-Time) display automatically. 7.4 Headlight/backlight On/Off Press and hold UP button for 1 second can turn on/off the headlight, and the scree will switch to the corresponding mode. *The motor does not work when the battery voltage is low, Display still can keep the headlight on for a while when E-bike is in riding.
-
Page 5: Parameter Setting
8． Parameter setting Double press MENU button (press interval less than 0.3 second) can get into setting menus, press UP/DOWN buttons to change the parameter setting, press MENU button can switch to next item. Double press MENU button will exit from menu. * Display will automatically quit menu when there is no operation for 30 seconds. - Page 6 darkness， ׀׀׀׀׀is brightness, default value is .׀ Note: You can set brightness independently between Daytime mode and Night mode. 8.4 Auto off : Press UP/DOWN button to change the auto power off time, from 1 to 9/OFF, the number represent minutes to shutdown, OFF means disable auto off function, default value is 5 minutes.
- Page 7 Voltage Percentage Pow Ind: Press UP/DOWN button to change the Power indicator, Power / Current. * This data represent power output of the battery (not motor).
- Page 8 8.8 Clock: Clock setting, press MENU button get into the clock setting menu, press UP/DOWN button to set Year/Month/Day/Hour/Min/Sec. Note: There is a rechargeable battery inside display, it keeps the clock running when display is powered off. The battery can be charged by the external power when display is power on. This battery can maintain clock running for 100-120 days while it has not been charged.
- Page 9 You need to input the right password before start with 30 seconds, display will power off automatically if the password was wrong. Basic Setting *Press DOWN button to move the red arrow to , press POWER button can show all items of the Basic Setting. Wheel: Press UP/DOWN can change the wheel setting, optional wheel diameter is 8.10 16/18/20/22/24/26/27/27.5/28/29/30/31 inch, 51cm~255cm represent wheel...
- Page 10 8.12 USB Port：press UP/DOWN level, select press OFF/ON，Will be no Voltage/Current output after switching off. 8.13 Light sensor：Light sensor item，press MENU Button , enter into Light sensor interface ，Press UP/DOWN button select OFF/ON；select Sensitivity，press UP/Down Select sensitivity of light sensation HI/MID/LO. 8.14 Advance setting: Press POWER button can get into the advance setting menu, default password is ‘1919’.
- Page 11 Error code Speed limit Assist levels 8.15 Speed limit: Press UP/DOWN will change speed limit, range 10km/h~60km/h or 99km/h（Unlimited speed）. Default value is 25km/h. *Speed limit and current limit are restricted by controller and motor. 8.16 Assist levels: This parameter can customize assist levels, options are 3/5/9/UBE, UBE represent factory default settings.
- Page 12 8.18 Factory setting: Press MENU button enter Restore Factory settings item, set YES will restore all parameter to factory settings. 8.19 Information: Show information of the E-bike. 8.20 Product info: Get into this item can show hardware version software version…...
- Page 13 *These information needs to be supported by battery communication. 9． Error Code define 860C can show warning message, icon shows on the screen, and show error code at the bottom of the screen, error code from 04~30, definition see the table below.
- Page 14 error controller‘s temperature Display 15H on LOGO position sensor error Speed sensor error Display 21H on LOGO position BMS communication error Display 22H on LOGO position Head light error Display 23H on LOGO position Head light sensor error Display 24H on LOGO position Torque sensor error-Torque Display 25H on LOGO position Torque sensor error-speed...
-
Page 15: Connector Descriptions
11． Connector descriptions 1、 Brown wire : Anode(24v/36v/48V/52V) 2、 Orange wire : Power cord to the controller 3、 Black wire : 4、 Green wire : RxD (controller -> display) 5、 White wire : TxD (display -> controller) 12． Assist level instructions Assist level can be customized, the highest level is 9, common used assist level see the table below: 3 level...
